Power Steering Gear: Components

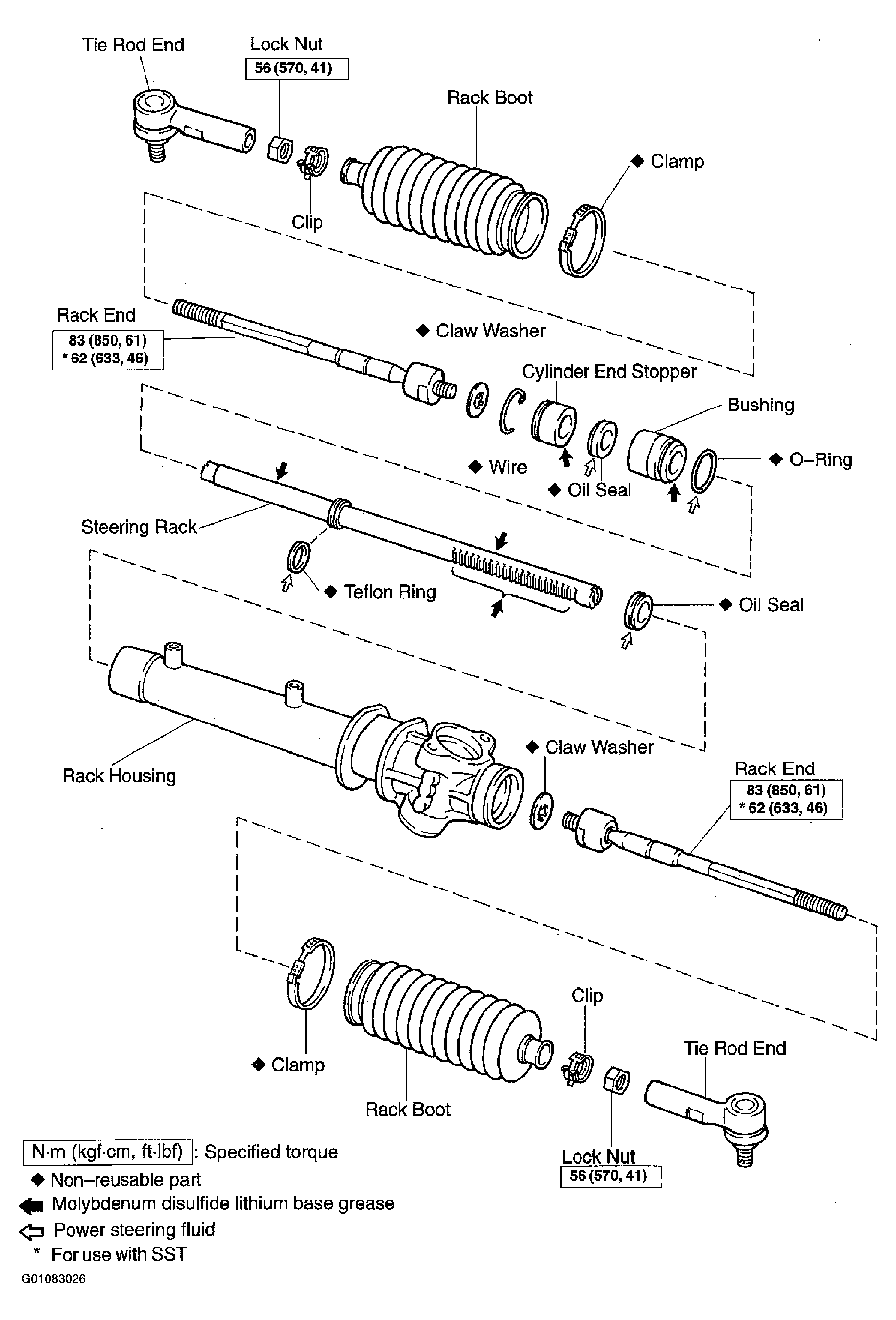

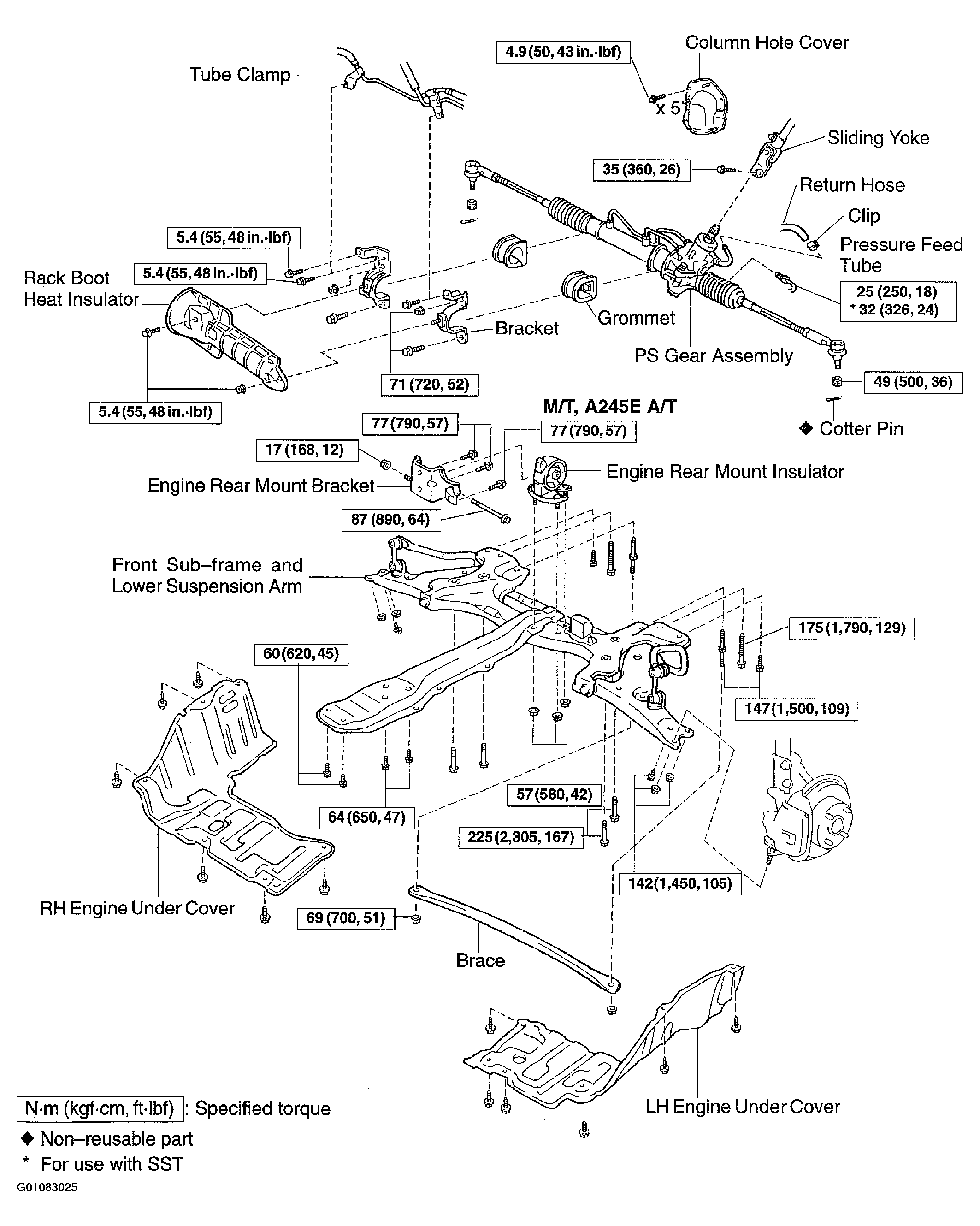

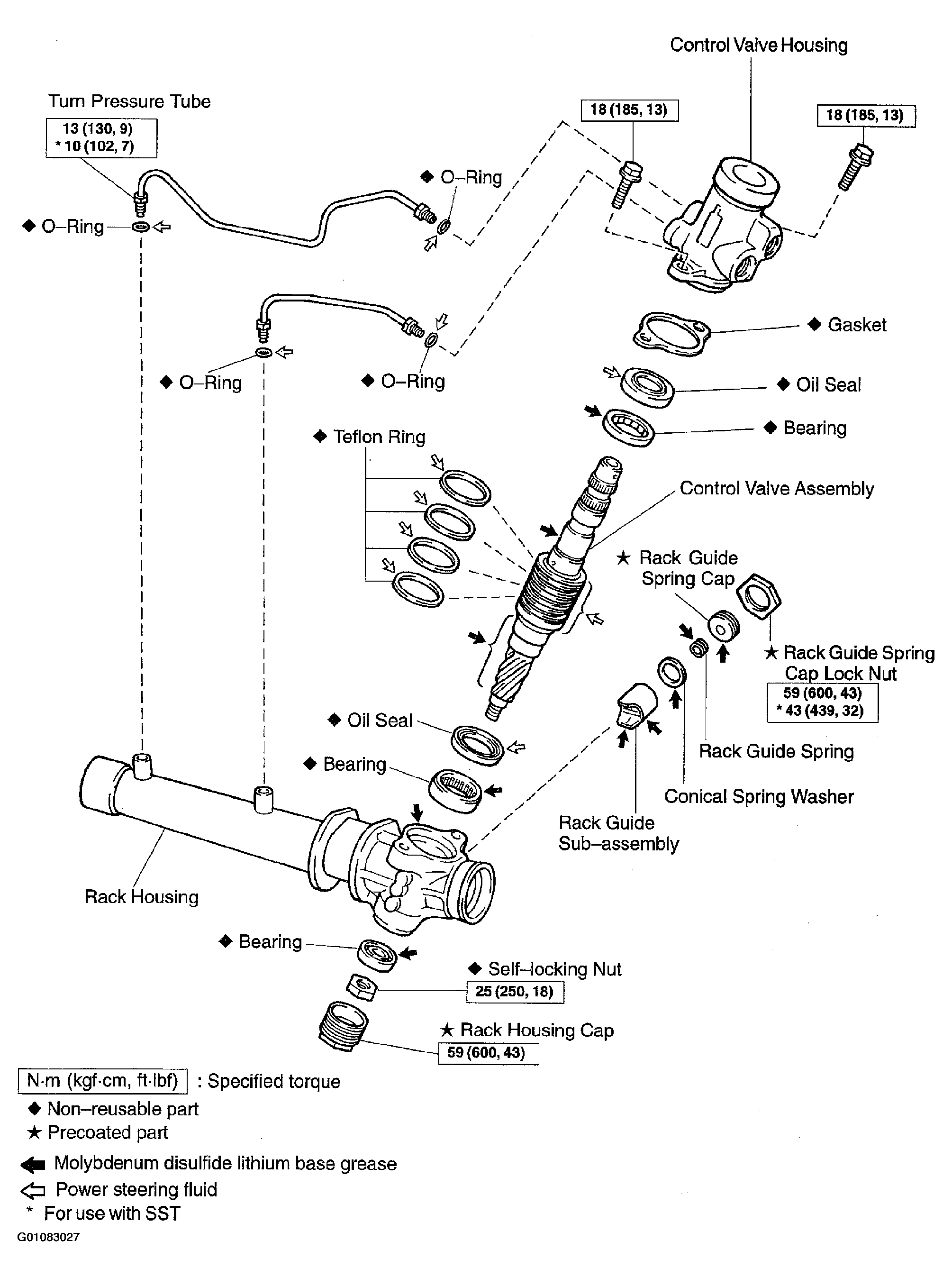

Fig 1: Indentifying Power Steering Gear Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Indentifying Power Steering Gear Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Indentifying Power Steering Gear Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Indentifying Power Steering Gear Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
