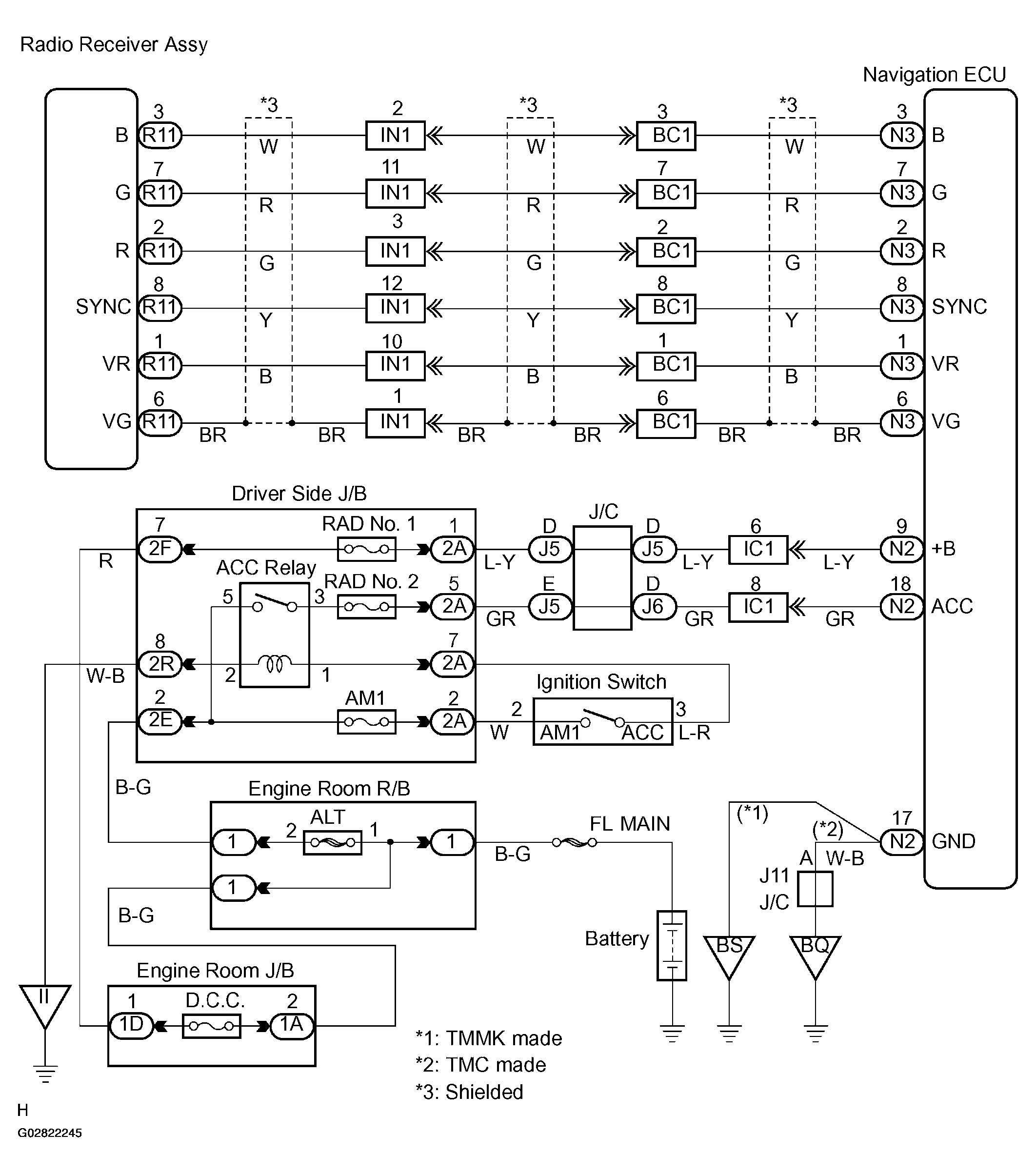

Navigation Screen Not Stabilized (Synchronous Error): Wiring Diagram

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
