Remove Speed Sensor

Disconnect the speed sensor connector.

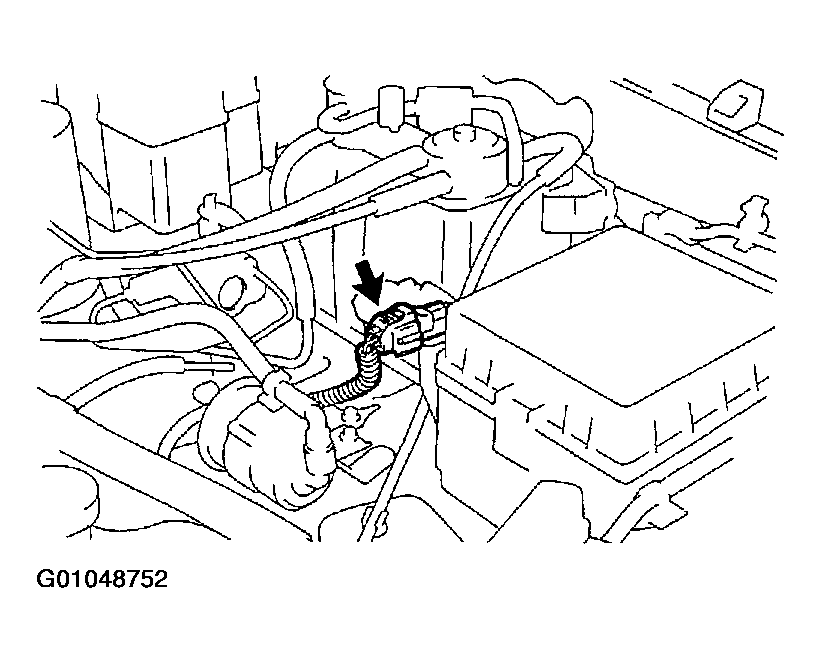

Fig 1: Disconnecting Front Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the resin clip and 4 clamp bolts holding the sensor harness from the steering knuckle and upper arm.
Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
Remove the speed sensor installation bolt and speed sensor from the steering knuckle.

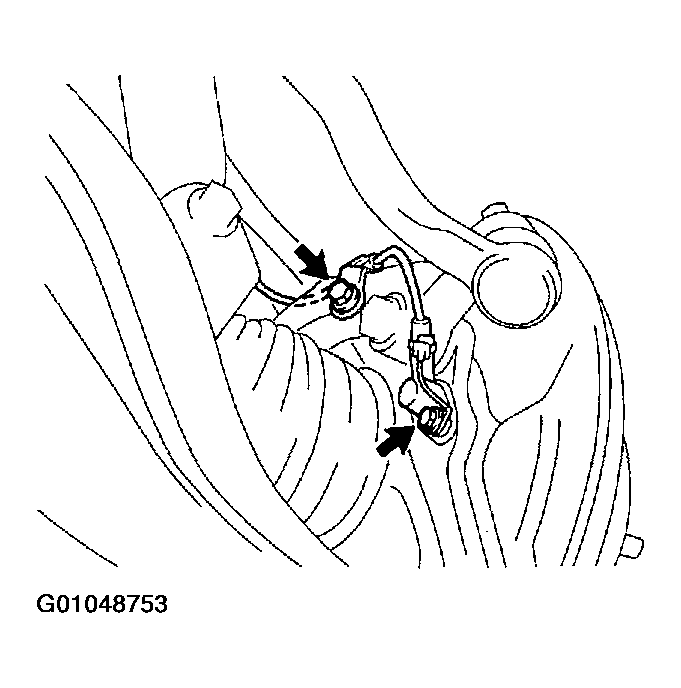

Fig 2: Locating Bolt For Removal Of Front Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
