Engine Cooling System: Radiator: Components

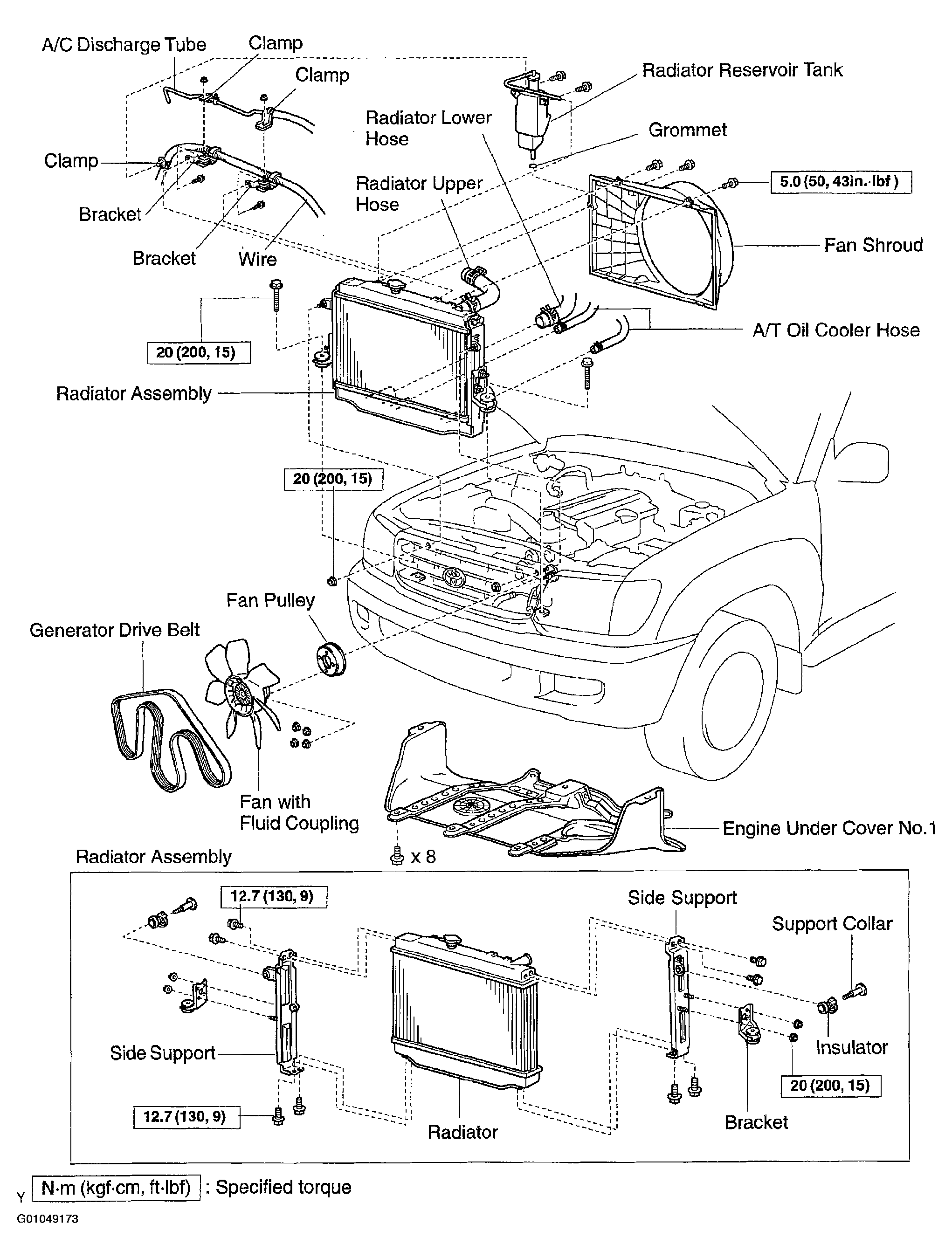

Fig 1: Identifying Components For Radiator Removal

G01049173

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
