Vehicle Lift And Support Locations

For lifting and support locations, see Fig 1 And Fig 2 .

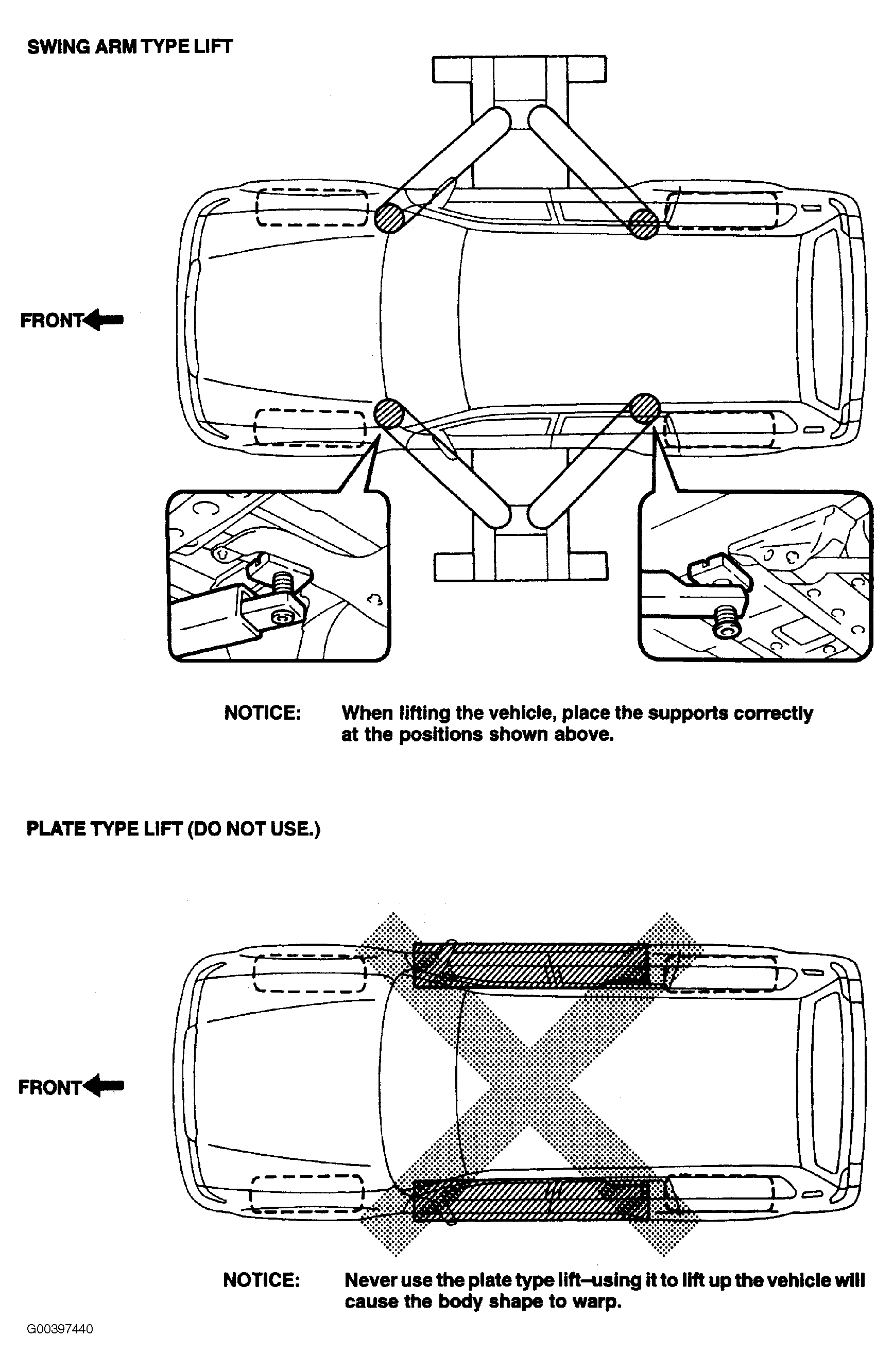

Fig 1: Identifying Vehicle Lifting & Support Points (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

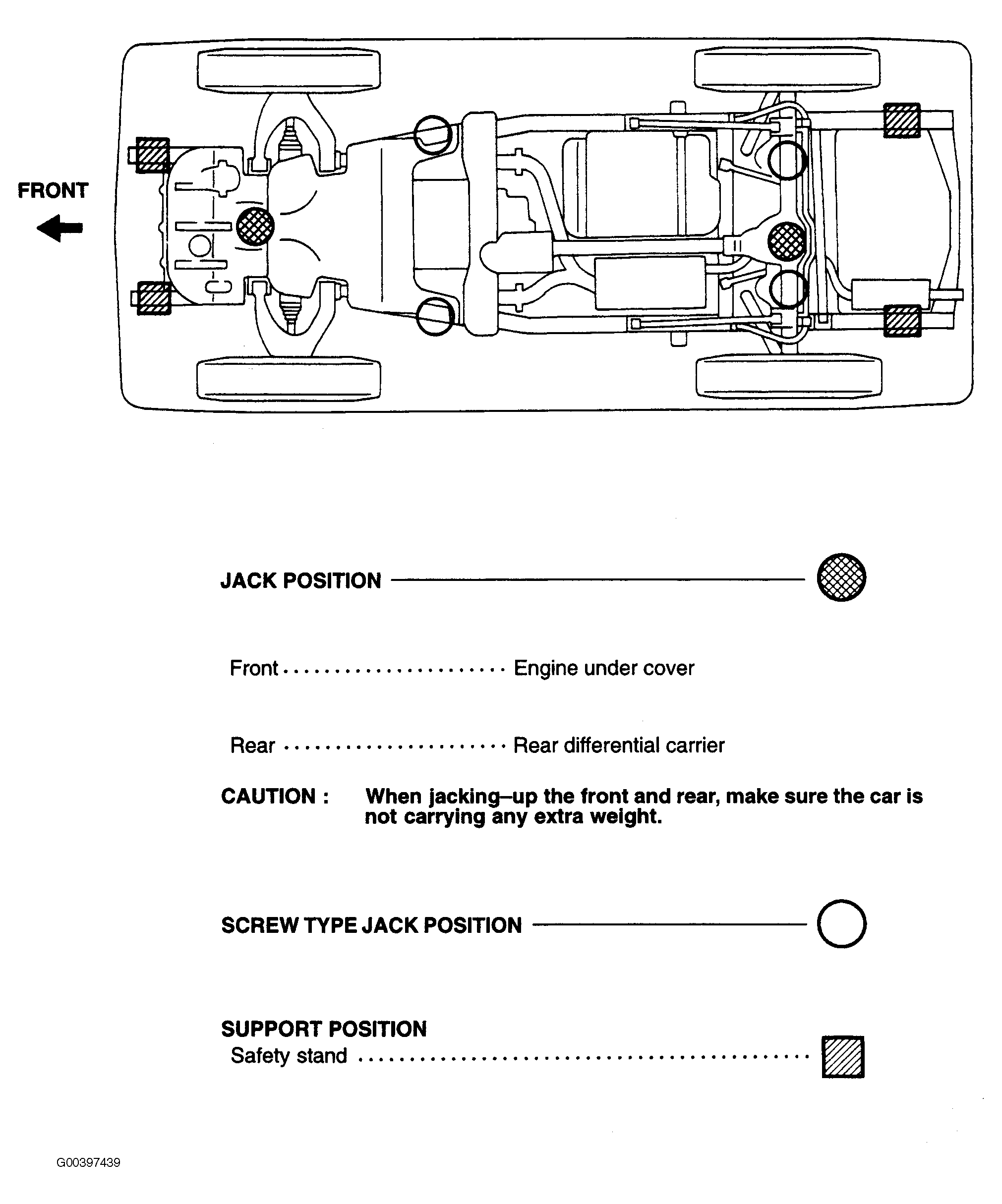

Fig 2: Identifying Vehicle Lifting & Support Points (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
