Abs Ecu Pin Voltages

ABS circuits and wiring harness can be tested by backprobing ABS ECU connectors and comparing measured voltages with ABS ECU standard values chart. See Fig 1.

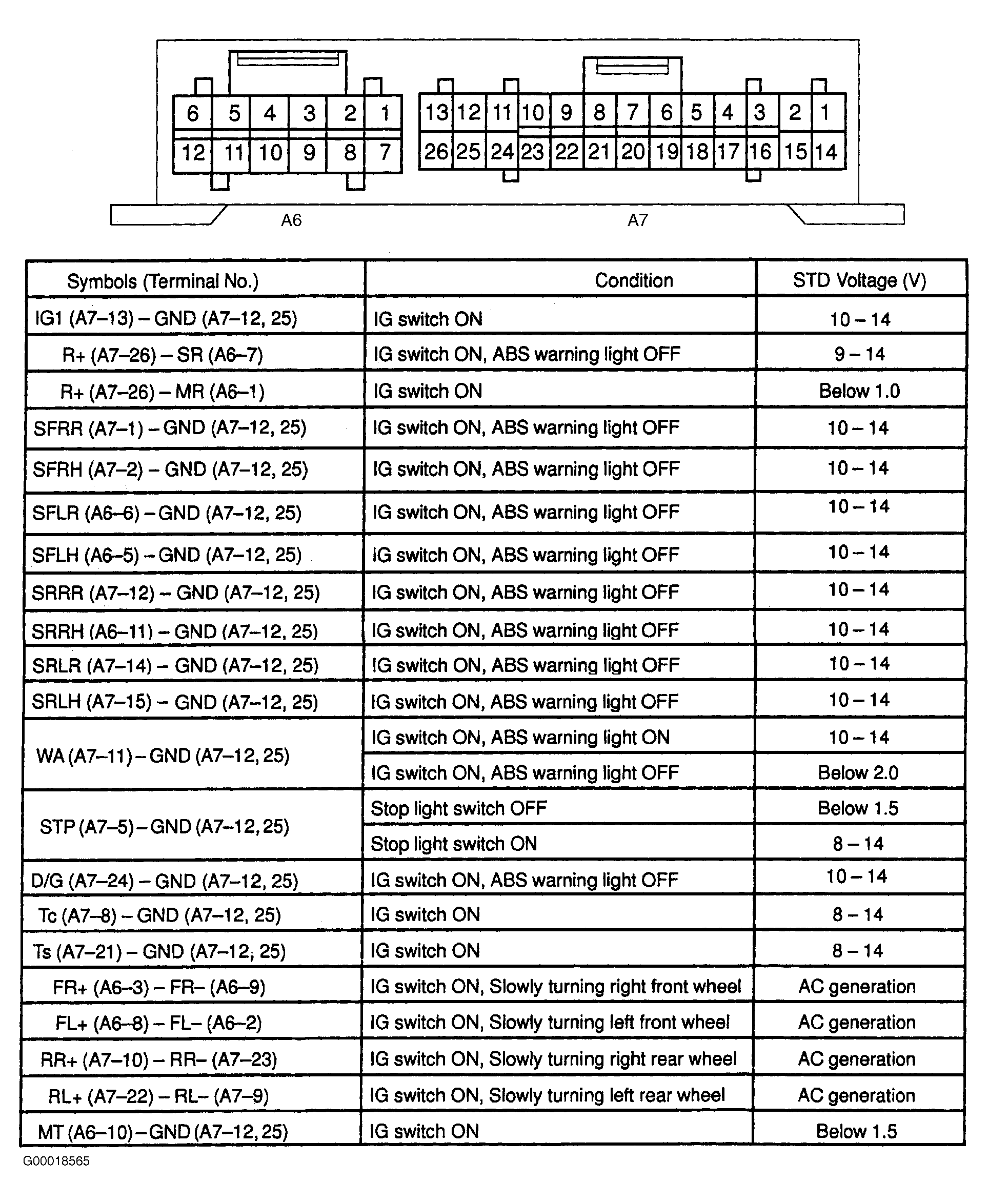

Fig 1: Identifying ABS ECU Connector Terminals & Standard Values

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
