Charging System - Generators & Regulators: Generator: Installation

1. Install the 2 bolts and generator.
   1. Torque:
   2. 12 mm head: 25 N.m (255 kgf.cm, 18 ft.lbf)
   3. 14 mm head: 54 N.m (550 kgf.cm, 40 ft.lbf)

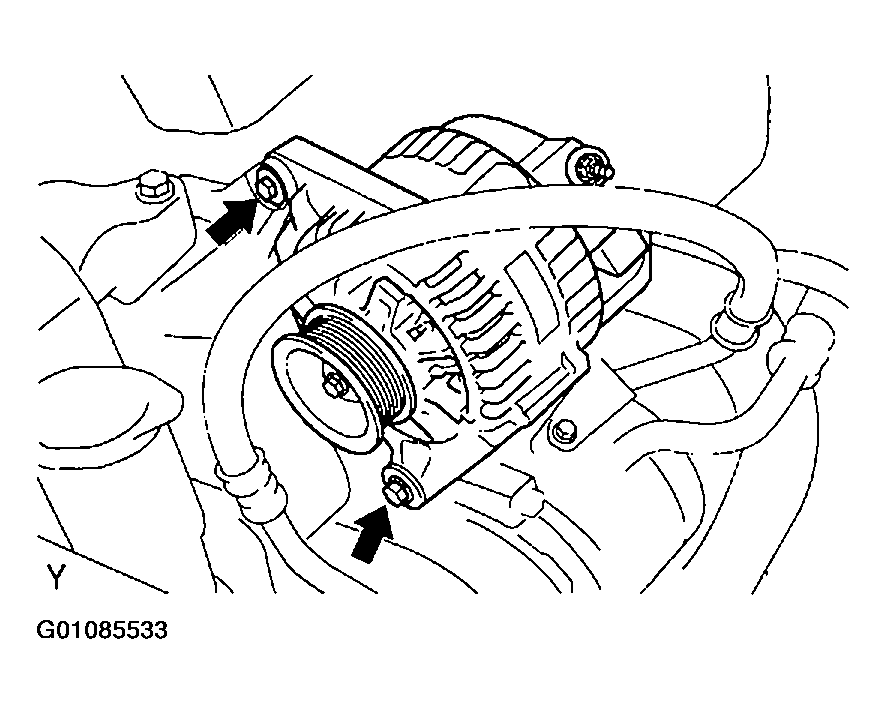

   Fig 1: Displaying Bolts & Generator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

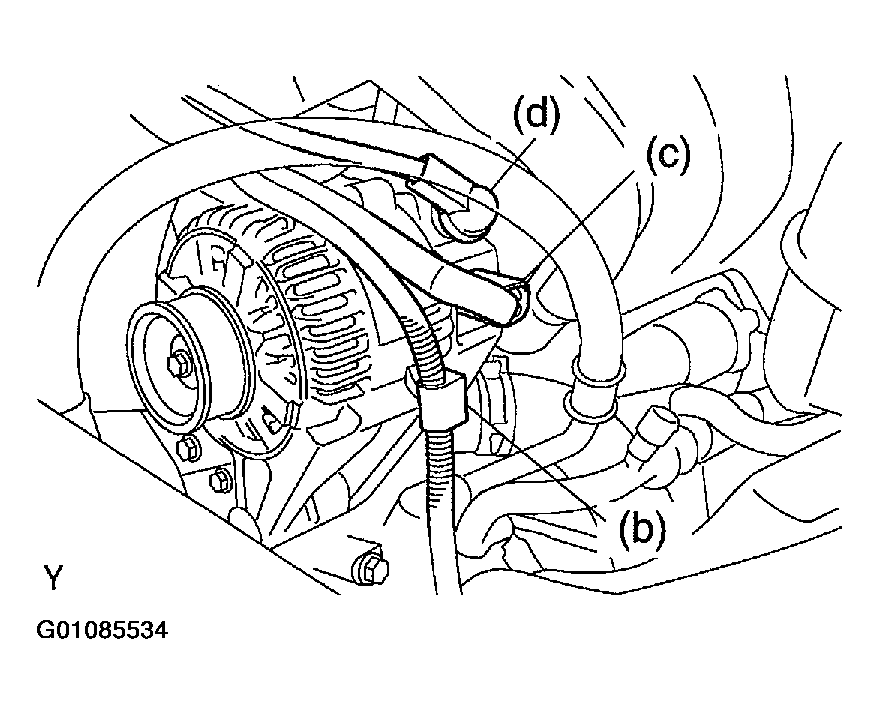

2. Connect the wire clamp to the wire clip on the rectifire end flame.
3. Connect the generator connector.
4. Connect the generator wire, and install the nut and cap.

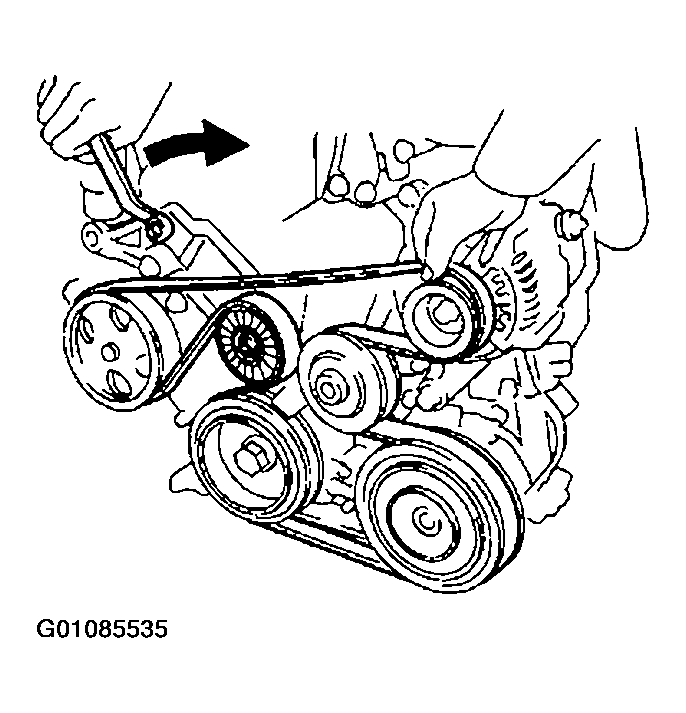

Turning the drive belt tensioner clockwise, and install the drive belt.

Fig 3: Installing Drive Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
