Oil Pump: Reassembly

INSTALL DRIVE AND DRIVEN ROTORS
1. Place the drive and driven rotors into pump body with the marks facing the pump body cover side.

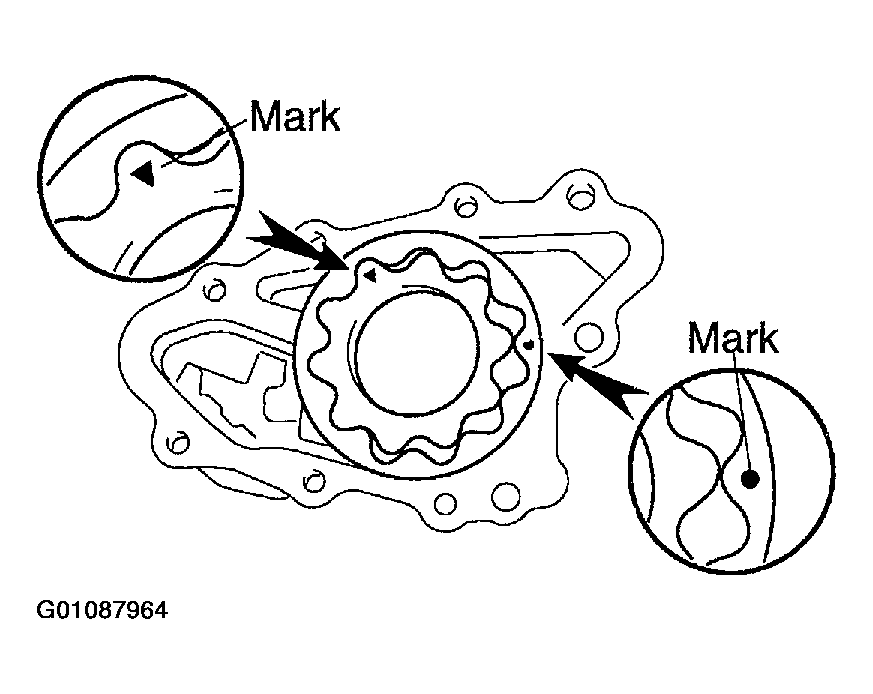

  Fig 1: Installing Rotors With Marks Facing Up
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the pump body cover with the 3 screws.
Torque: 10.3 N.m (105 kgf.cm, 8 ft.lbf)
INSTALL RELIEF VALVE
Insert the relief valve and spring into the pump body hole, and install the plug.

Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
