Power Source Circuit: Wiring Diagram

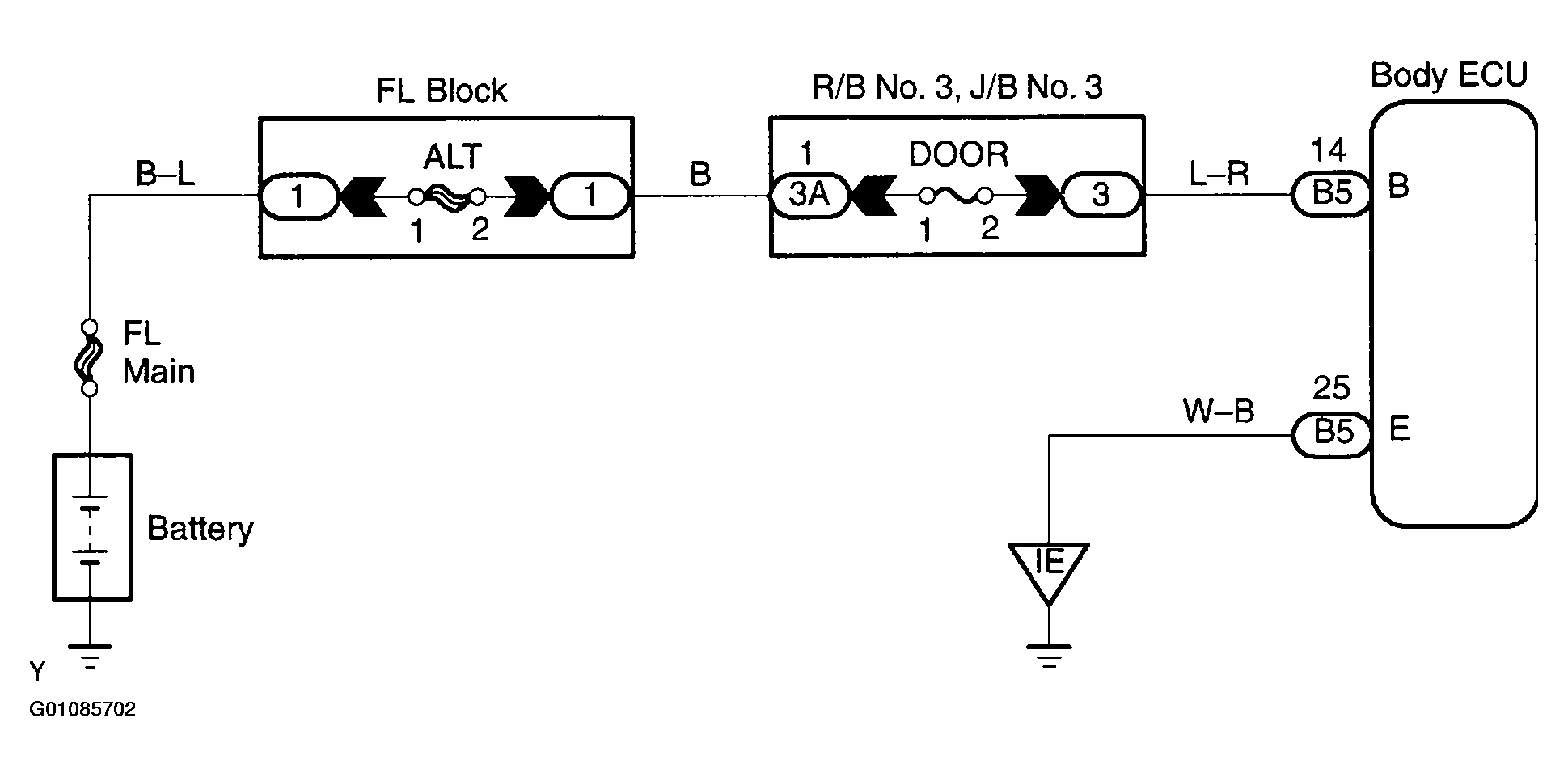

Fig 1: Displaying Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
