Power Window Control Switch Circuit
›
Wiring Diagram
Power Window Control Switch Circuit: Wiring Diagram

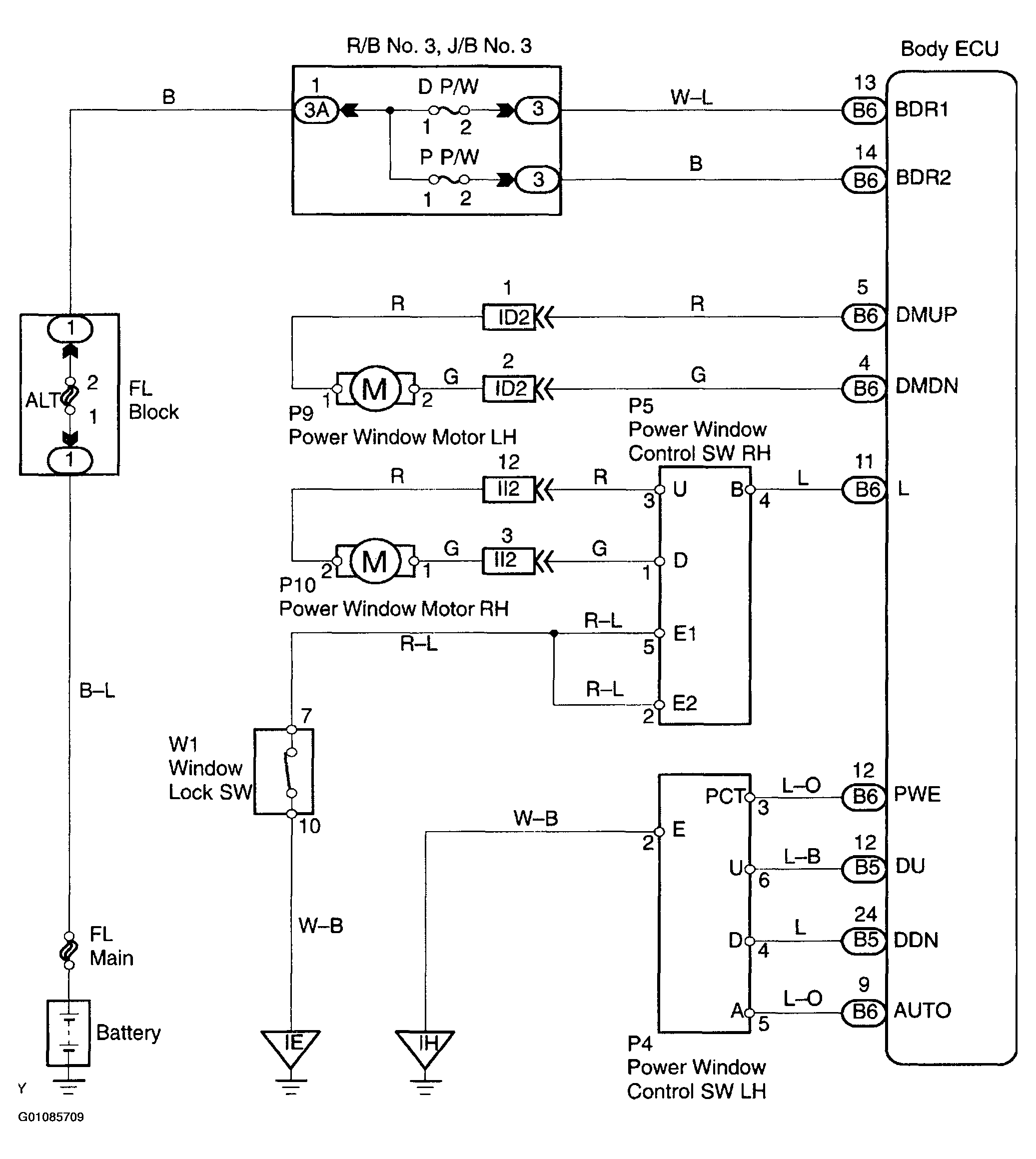

Fig 1: Displaying Power Window Control Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
