Radiator & Condenser Module Components
Radiator & Condenser Module Components

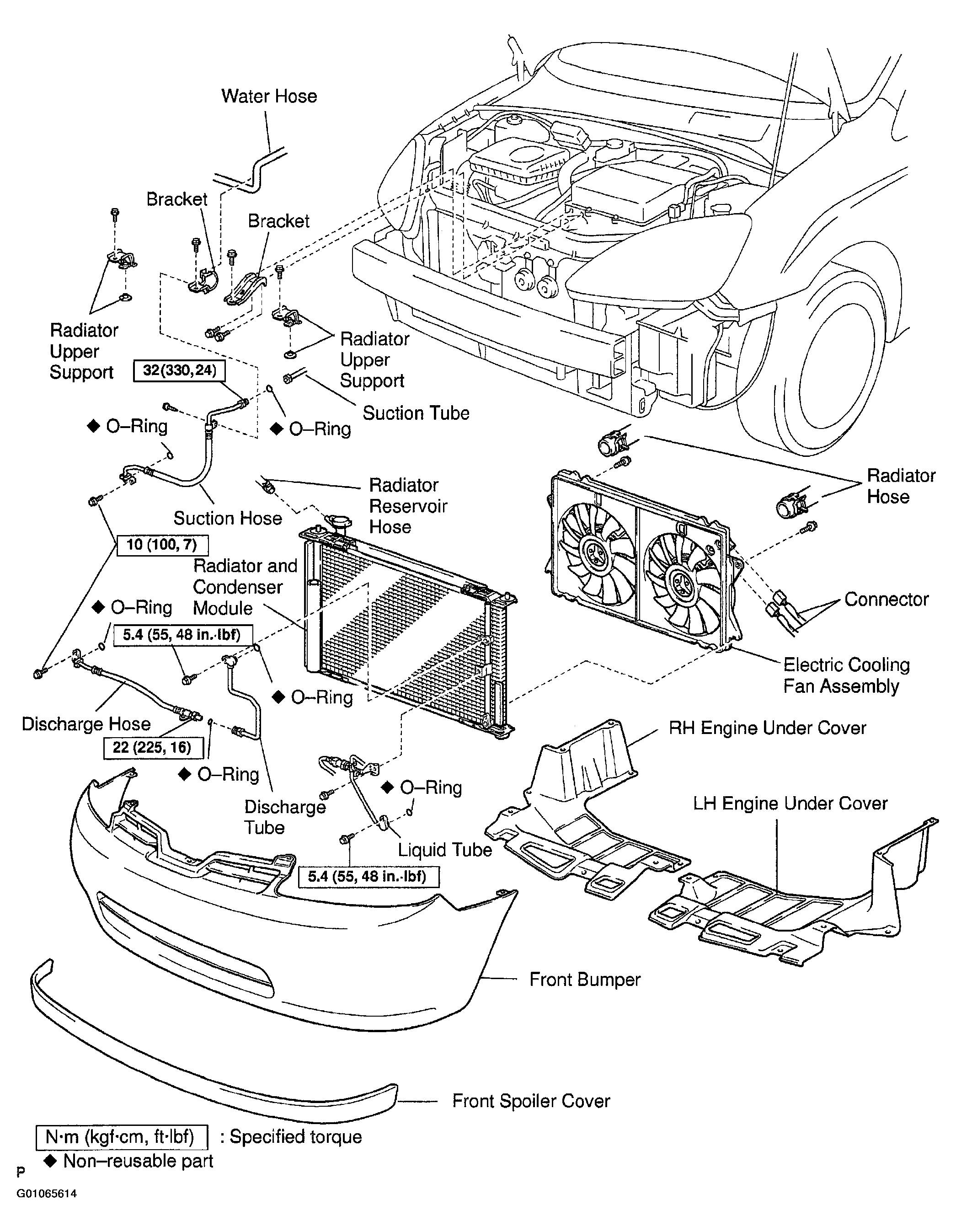

Fig 1: Locating Radiator & Condenser Module Related Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
