Door Key Lock And Unlock Switch Circuit: Wiring Diagram

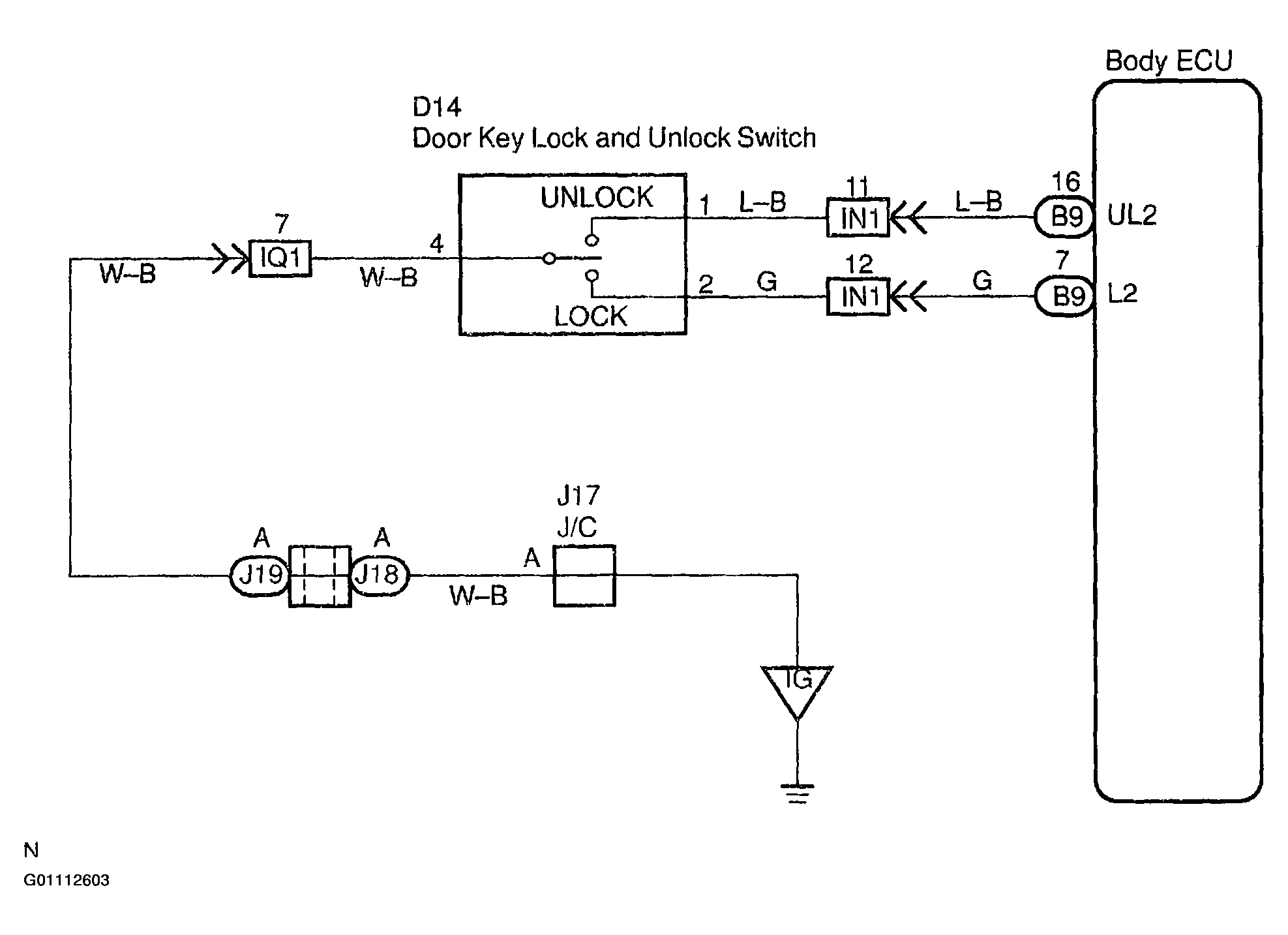

Fig 1: Door Key Lock And Unlock Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
