Driver Buckle Switch Circuit
›
Wiring Diagram
Driver Buckle Switch Circuit: Wiring Diagram

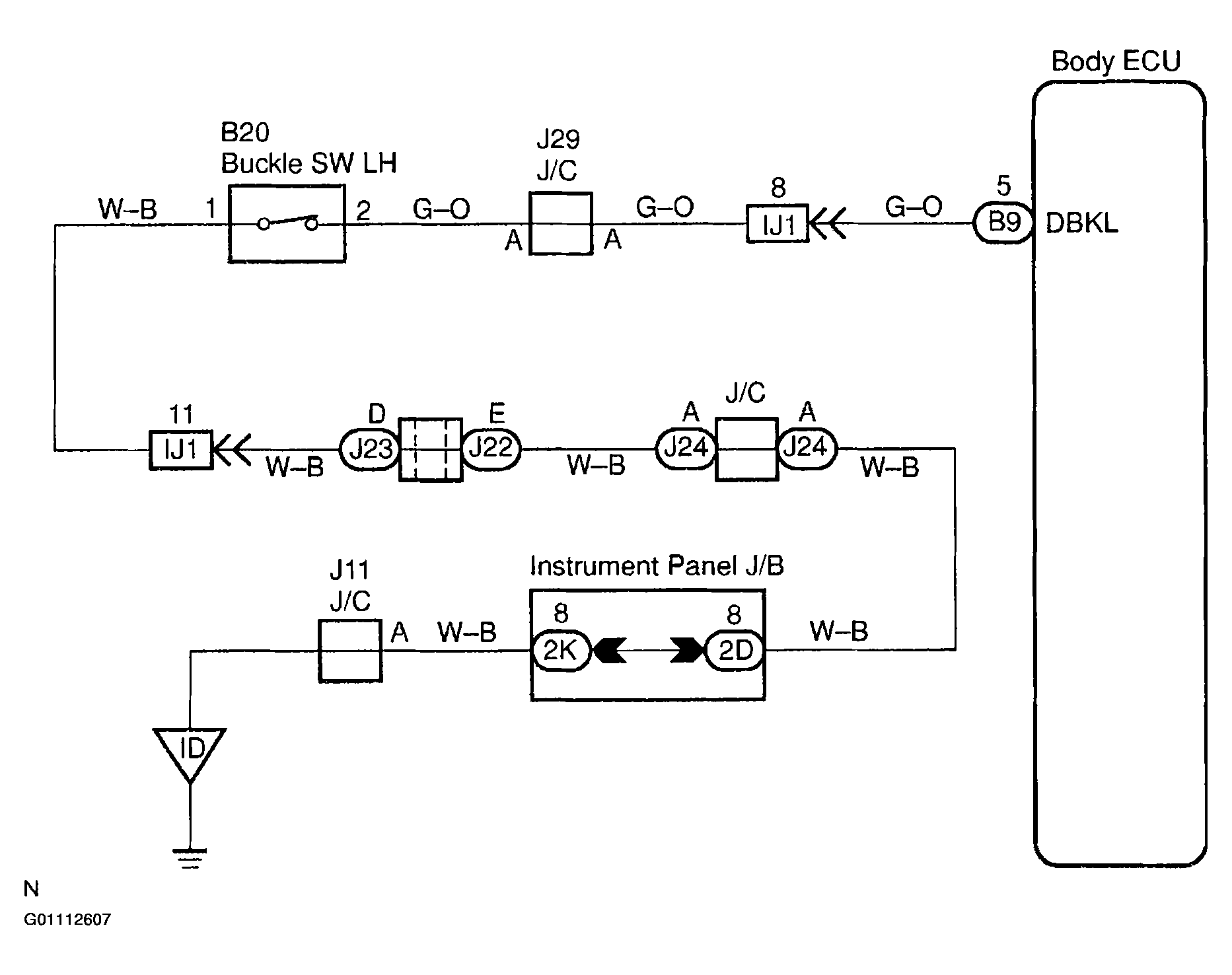

Fig 1: Driver Buckle Switch Circuit
