Ignition Switch Power Source Circuit: Wiring Diagram

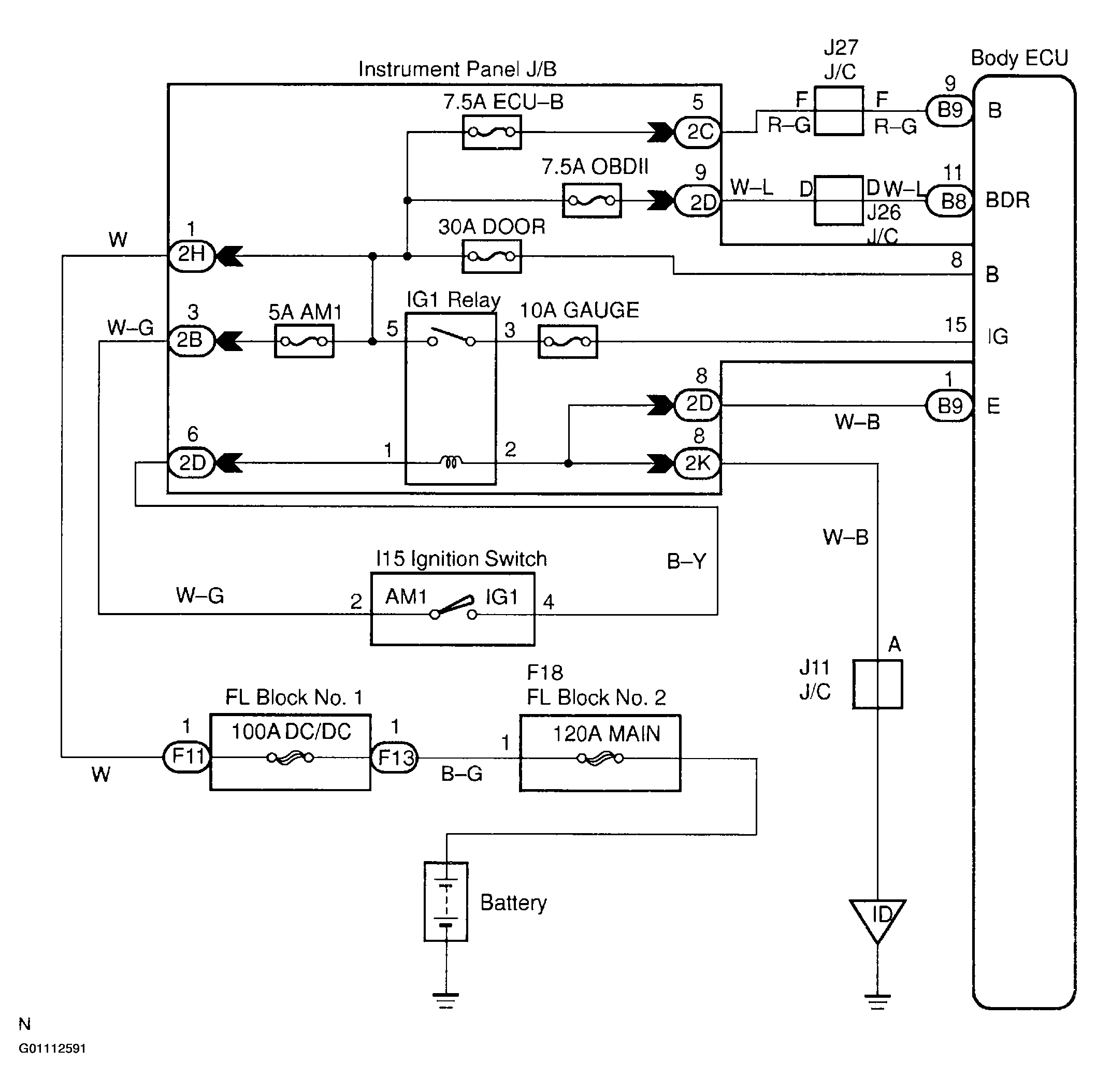

Fig 1: Ignition Switch Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
