Light Control Switch Circuit: Wiring Diagram

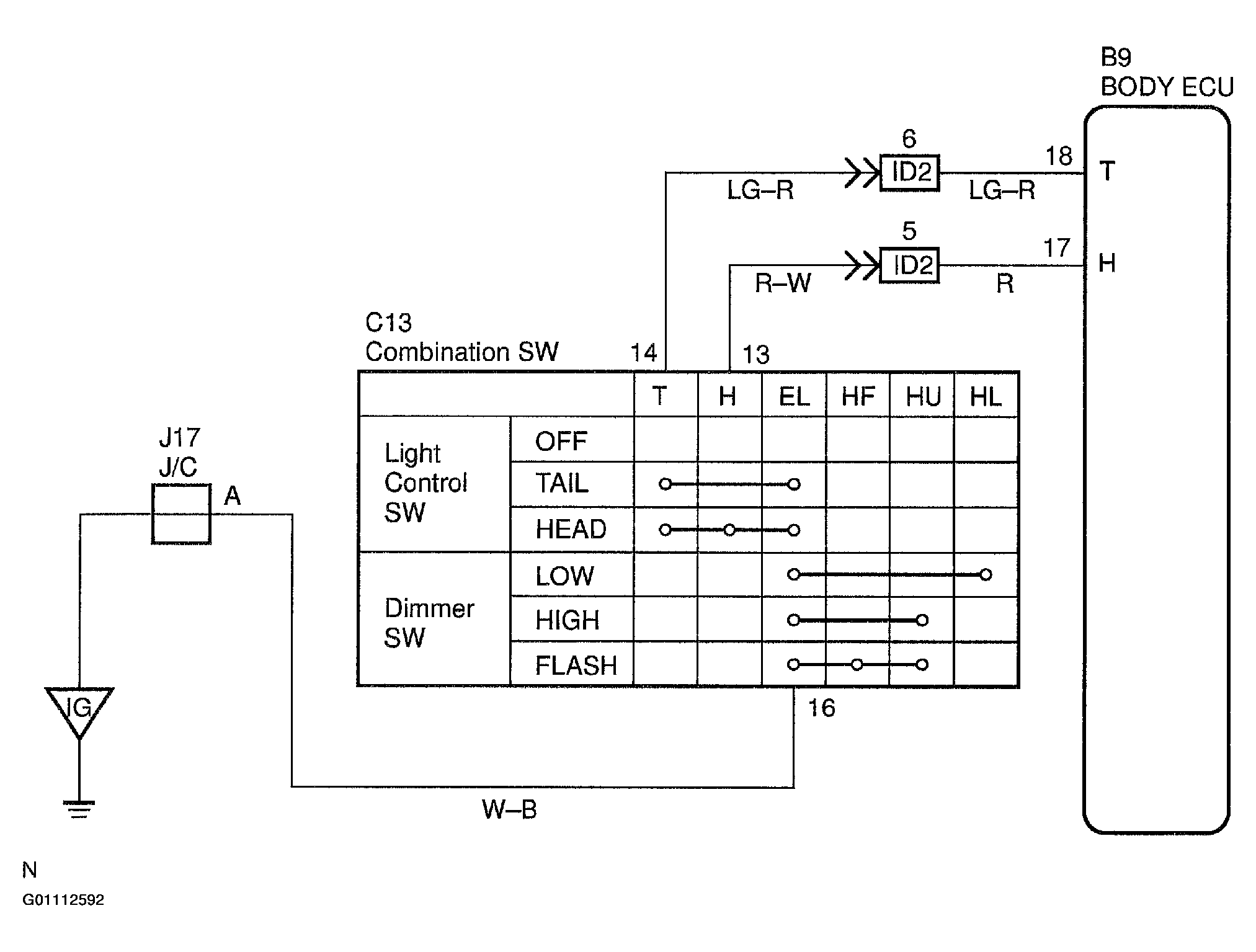

Fig 1: Light Control Switch Circuit
G01112592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
