(8) - Inspect Power Window Motor Operation (Rear Left Door)

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns clockwise.

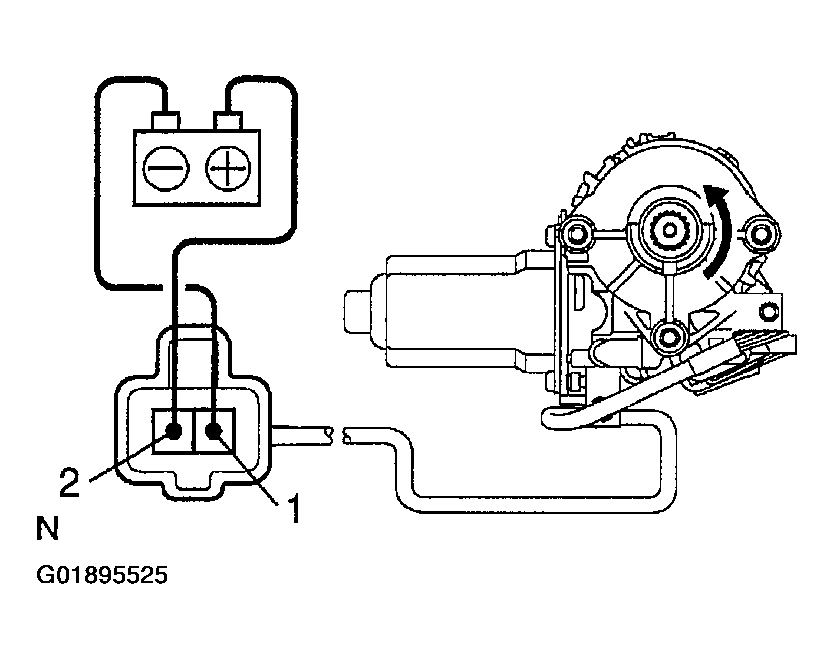

   Fig 1: Testing Rear Left Door Power Window Motor (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the motor turns counterclockwise.

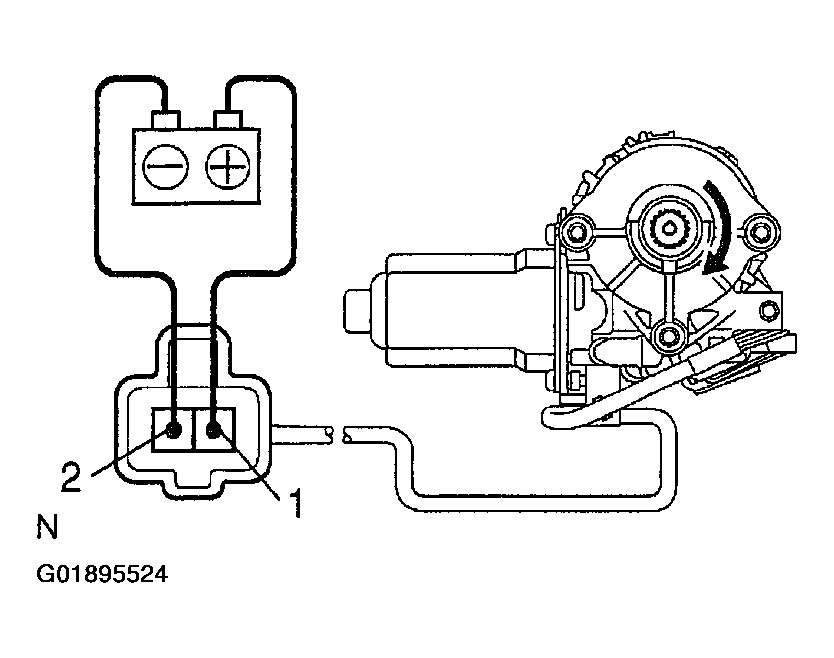

   Fig 2: Testing Rear Left Door Power Window Motor (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the motor.
