Vehicle Speed Sensor: Camry

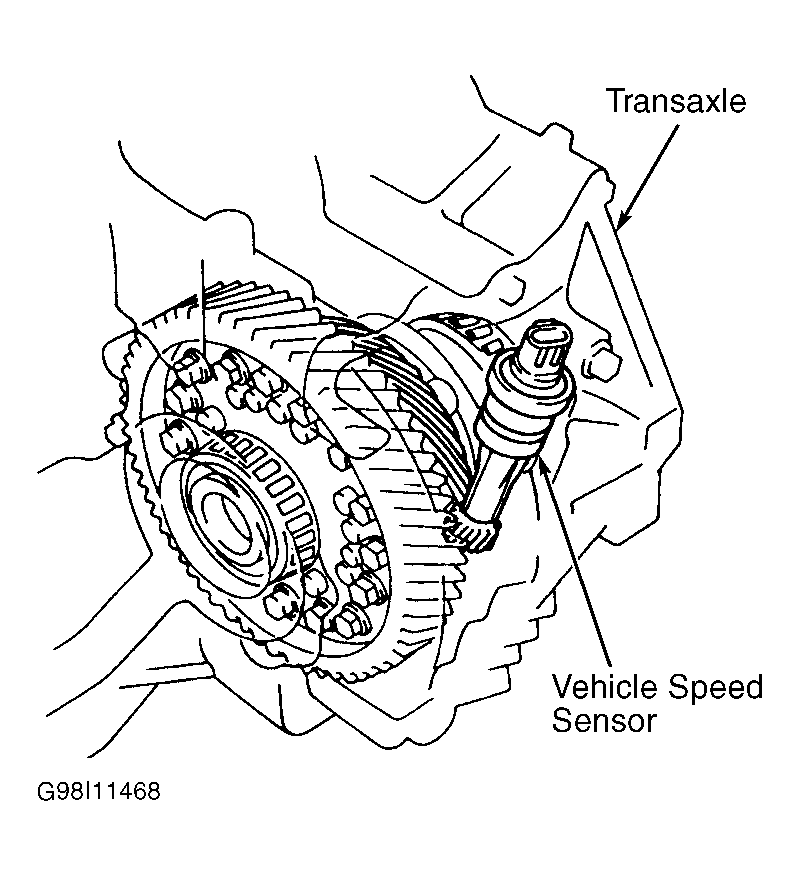

- Vehicle speed sensor is mounted on transaxle and contains a 3-pin electrical connector. See Fig 1. Raise and support vehicle so one front wheel is off the ground. Place transaxle in Neutral.

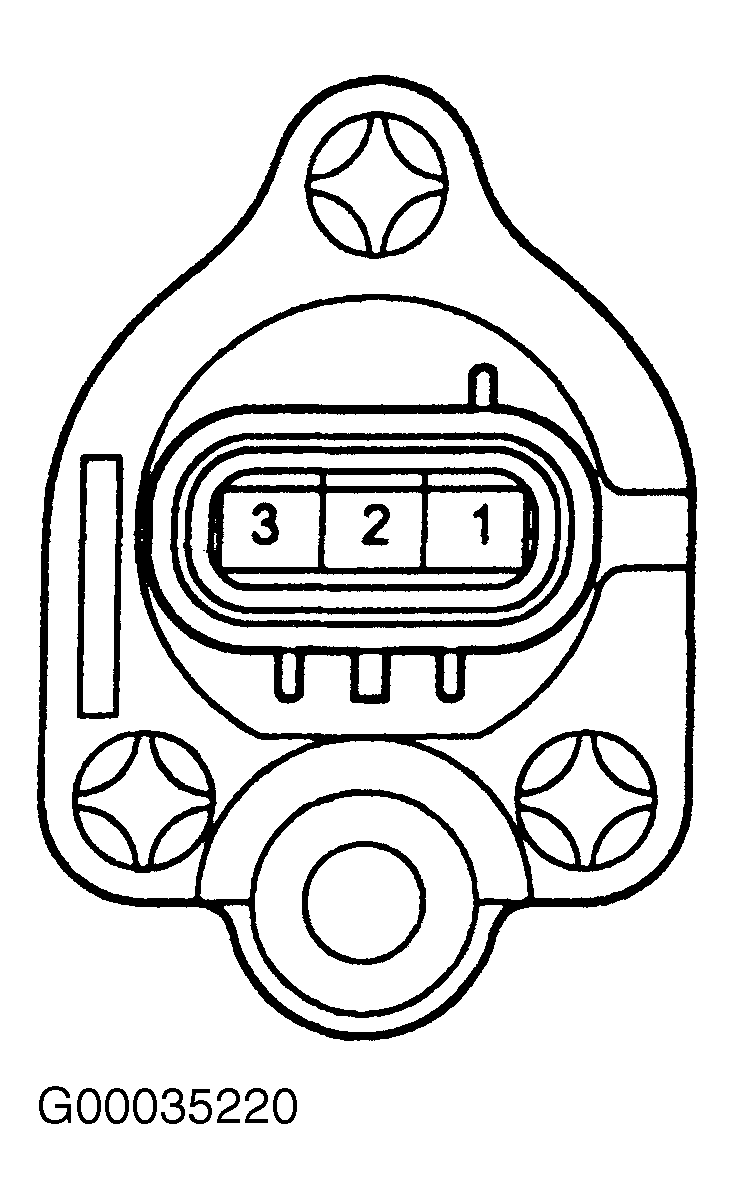

- Turn ignition on. Using voltmeter, check voltage between terminals No. 2 and 3 on vehicle speed sensor while rotating the front wheel with electrical connector installed on vehicle speed sensor. See Fig 2. Voltage should change from zero volts to 10-14 volts several times while rotating the front wheel. If voltage is not as specified, it may be necessary to verify that battery voltage exists at terminal No. 1 on vehicle speed sensor. If battery voltage exists, replace vehicle speed sensor. See VEHICLE SPEED SENSOR
under ENGINE SENSORS & SWITCHES in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article. If battery voltage does not exist, check wiring circuit to electrical terminal No. 1 on vehicle speed sensor. See WIRING DIAGRAMS
article. If necessary to check GAUGE No. 1 fuse, this fuse is located is located in fuse/relay box behind driver's side of instrument panel.
