Wheel Alignment Specifications & Adjustment Procedures: AVALON: Specifications

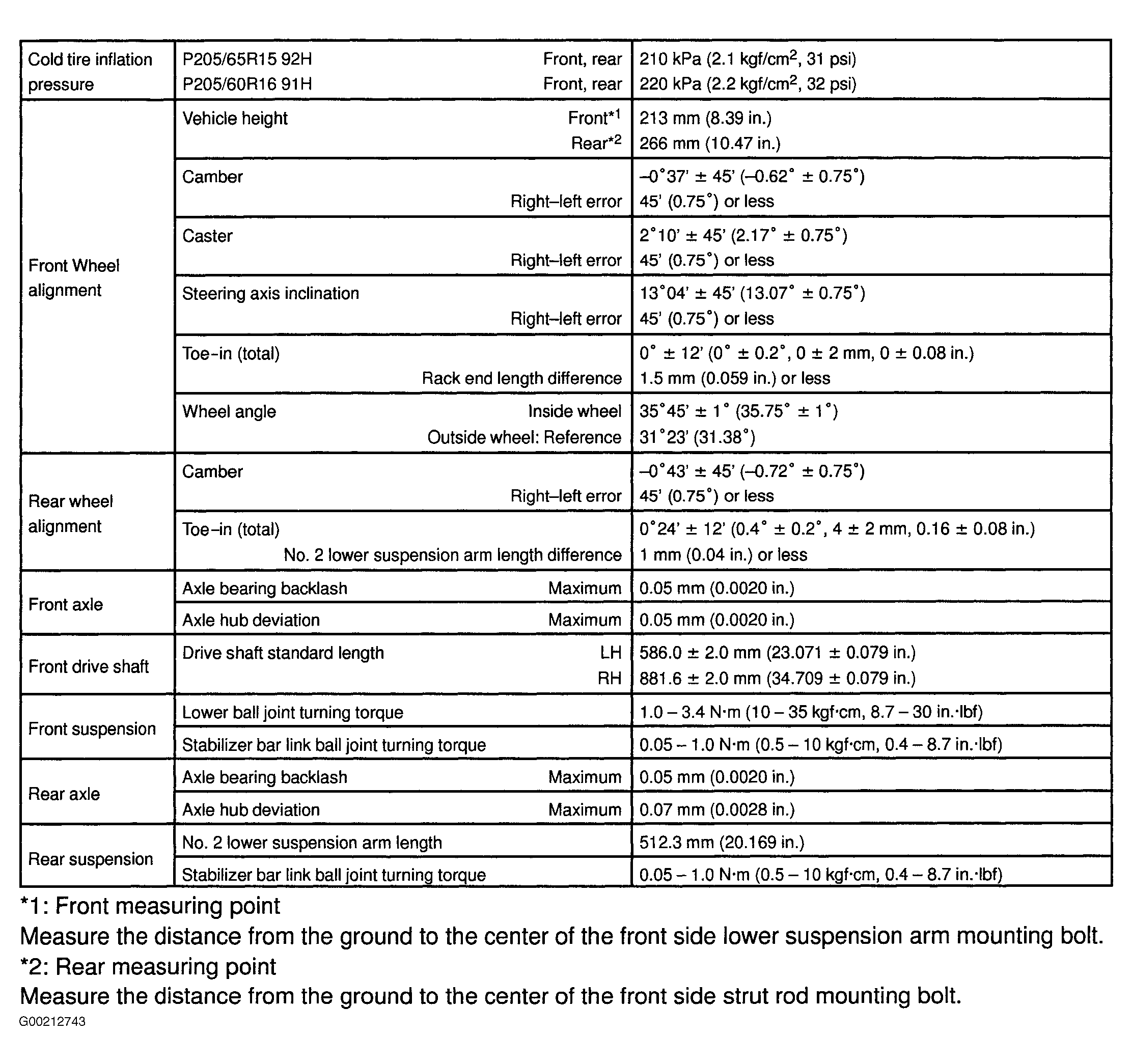

Fig 1: Wheel Alignment Specifications (Avalon)
G00212743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
