Wheel Alignment Specifications & Adjustment Procedures: Corolla: Specifications

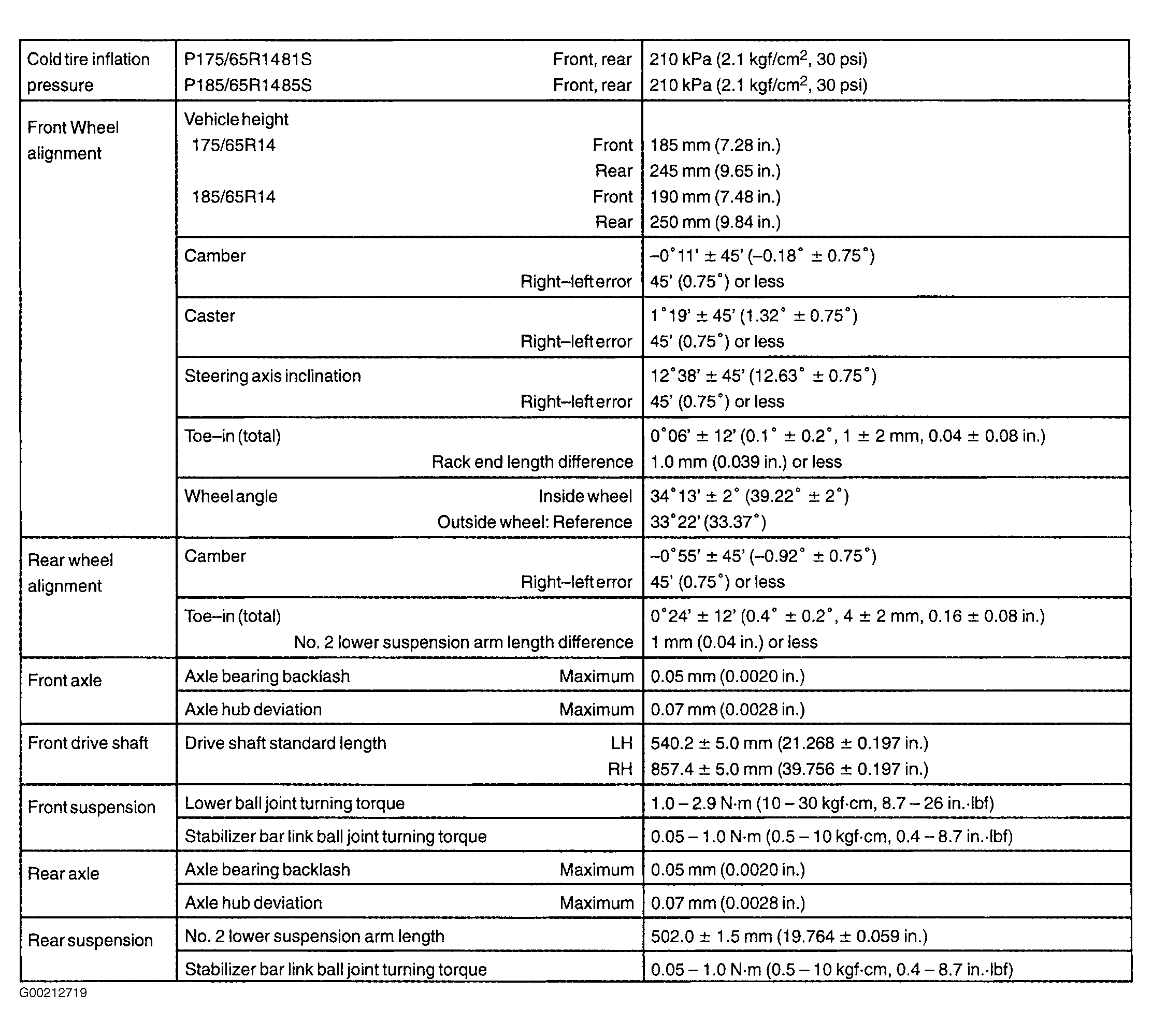

Fig 1: Wheel Alignment Specifications (Corolla)
G00212719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
