Wheel Alignment Specifications & Adjustment Procedures: MR2: Specifications

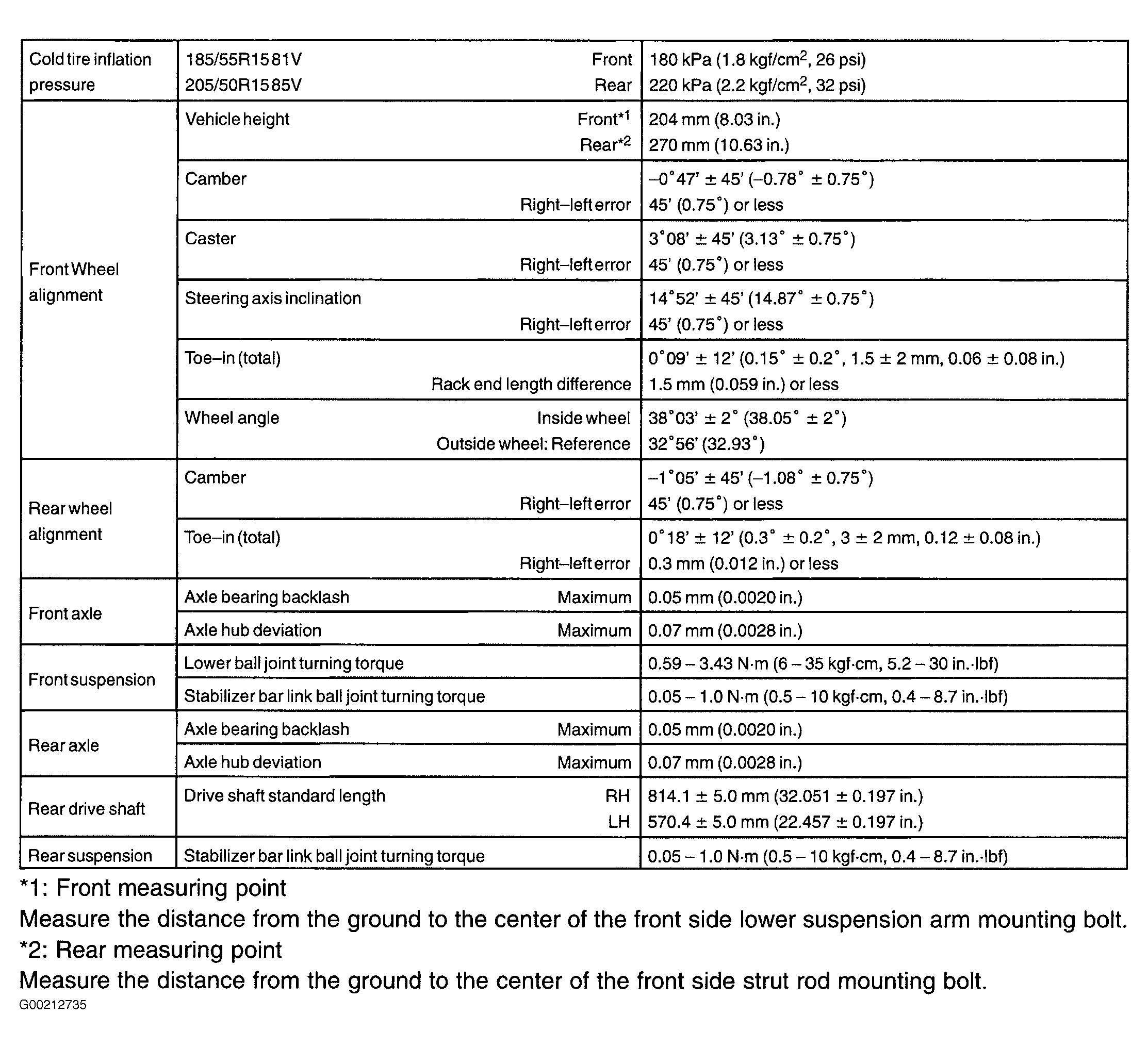

Fig 1: Wheel Alignment Specifications (MR2)
G00212735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
