Differential Case: Components

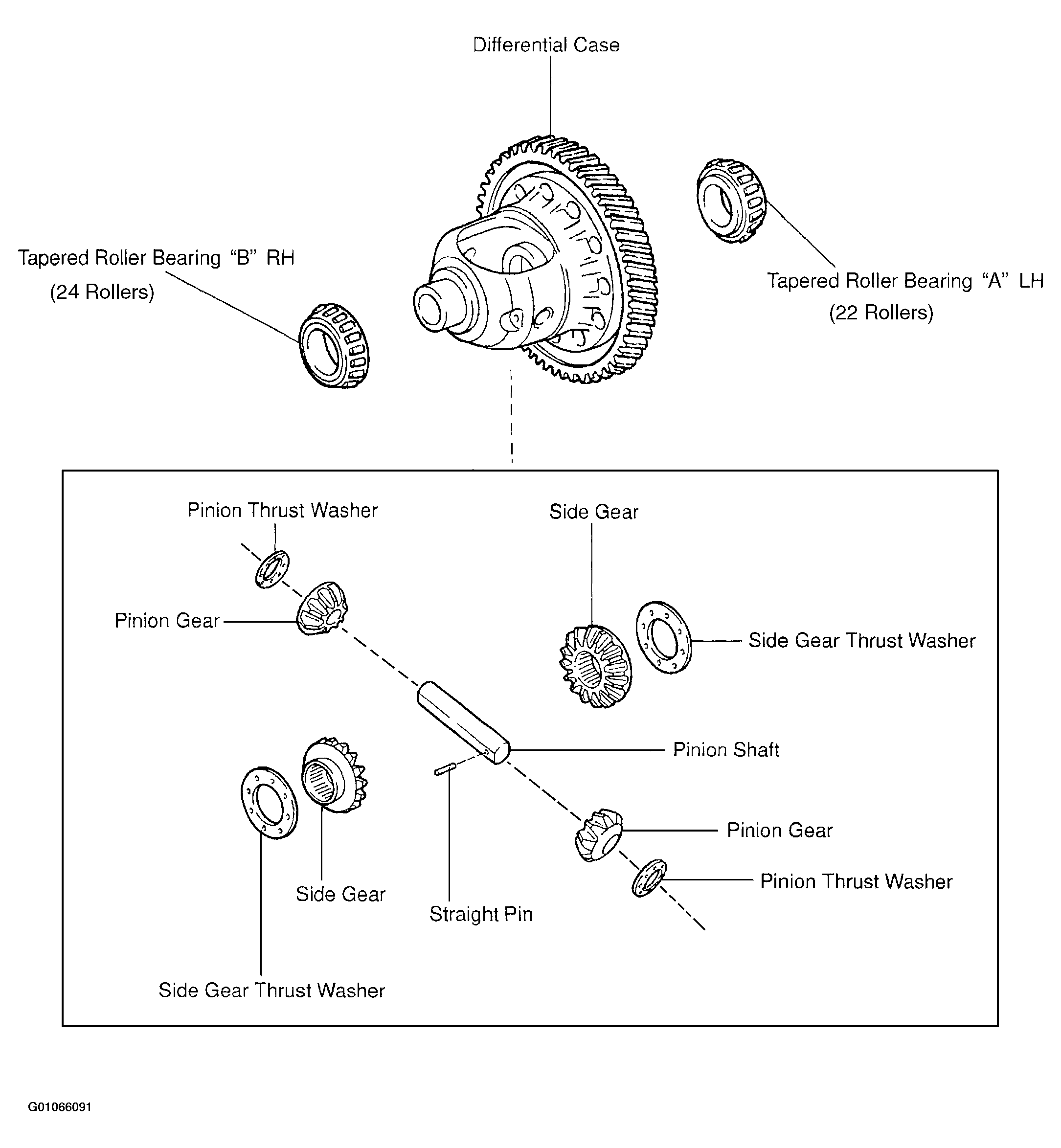

Fig 1: Exploded View Of Differential Case
G01066091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
