Hybrid Transaxle External Components

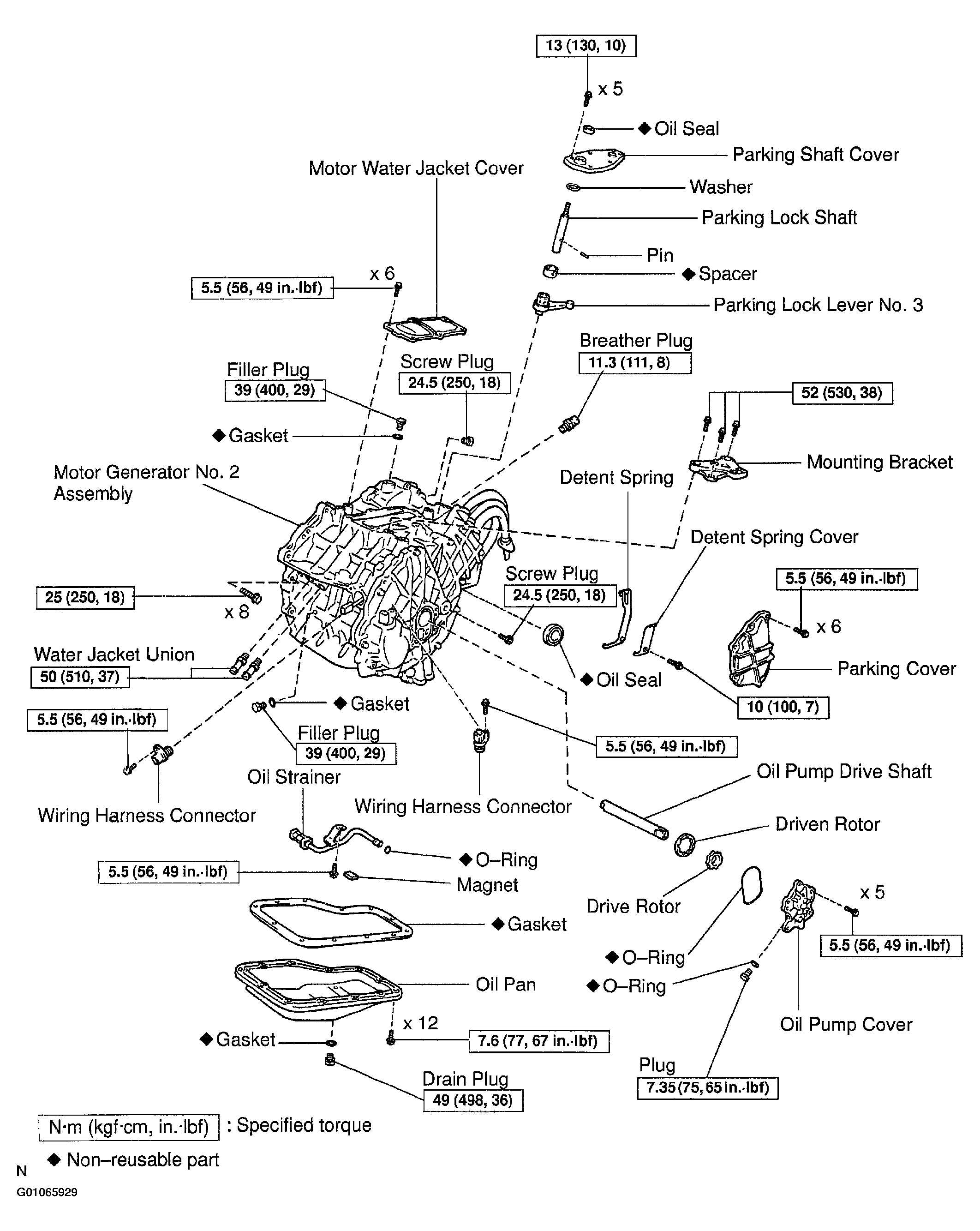

Fig 1: Identifying Hybrid Transaxle External Components
G01065929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
