Toyota
›
2002
›
Prius
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Transmission Control System Transaxle
›
Hybrid Transaxle Assembly
›
Hybrid Transaxle Components
›
Hybrid Transaxle Internal Components
Hybrid Transaxle Internal Components

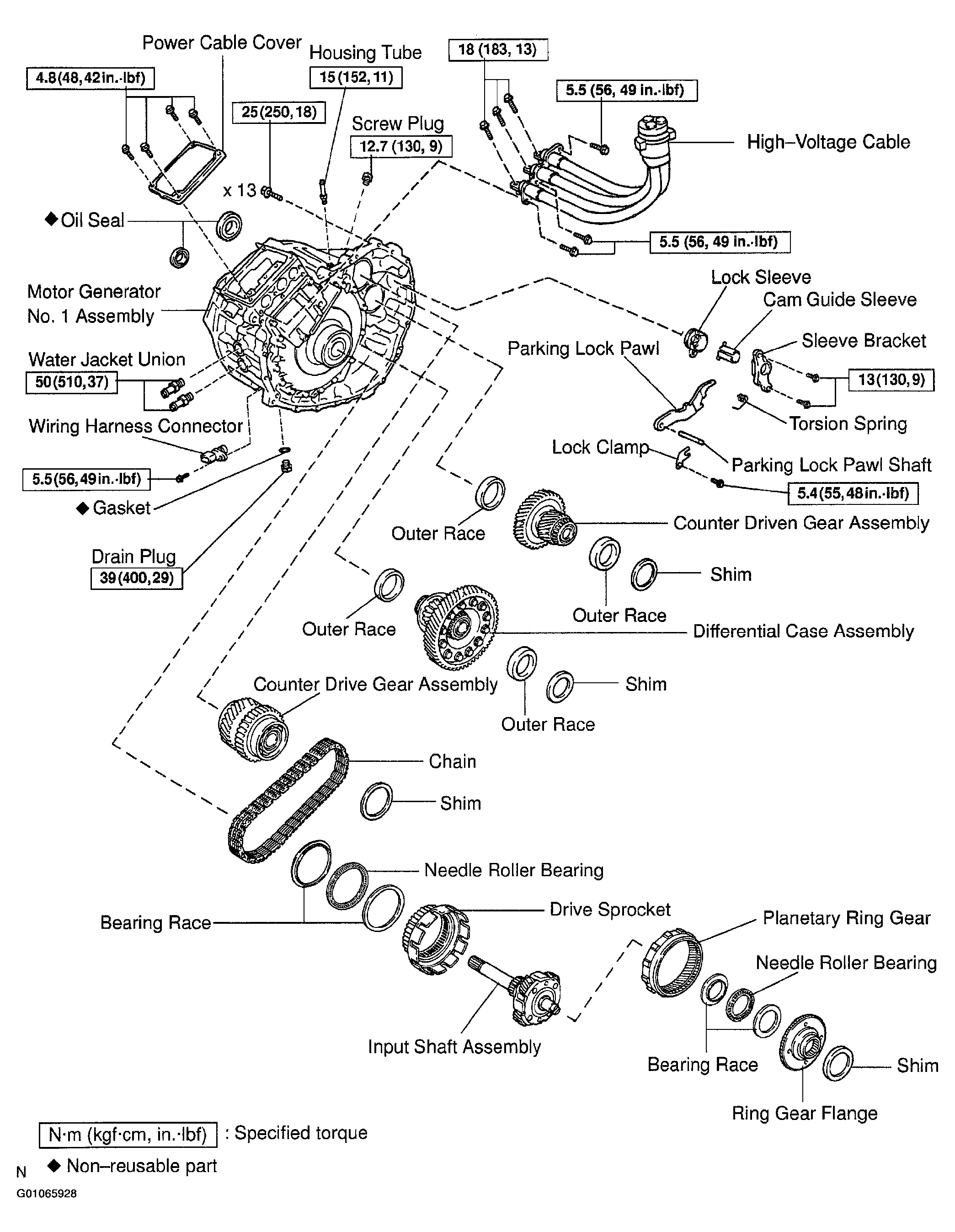

Fig 1: Identifying Hybrid Transaxle Internal Components
