Hybrid Transaxle Components

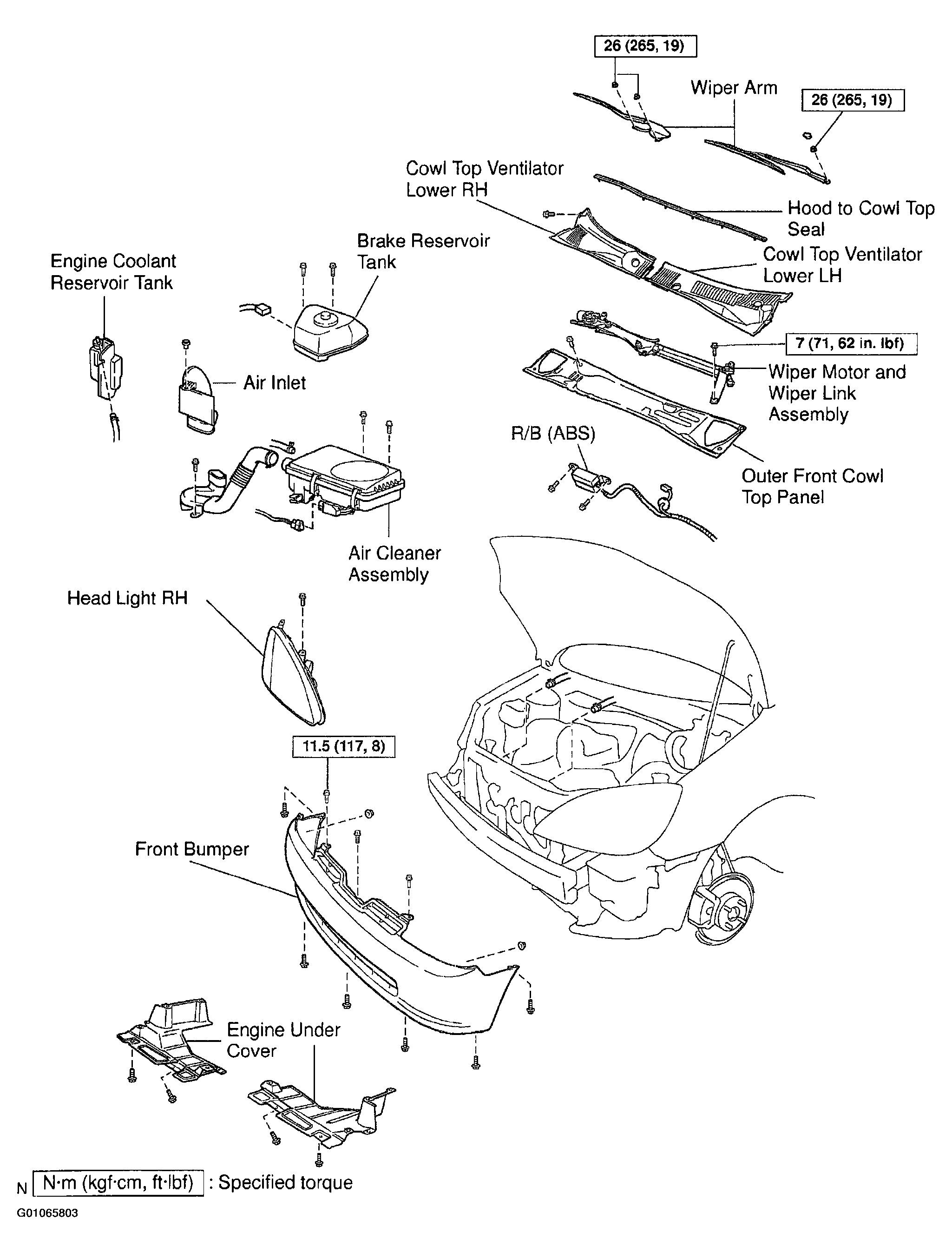

Fig 1: Locating Hybrid Transaxle Related Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

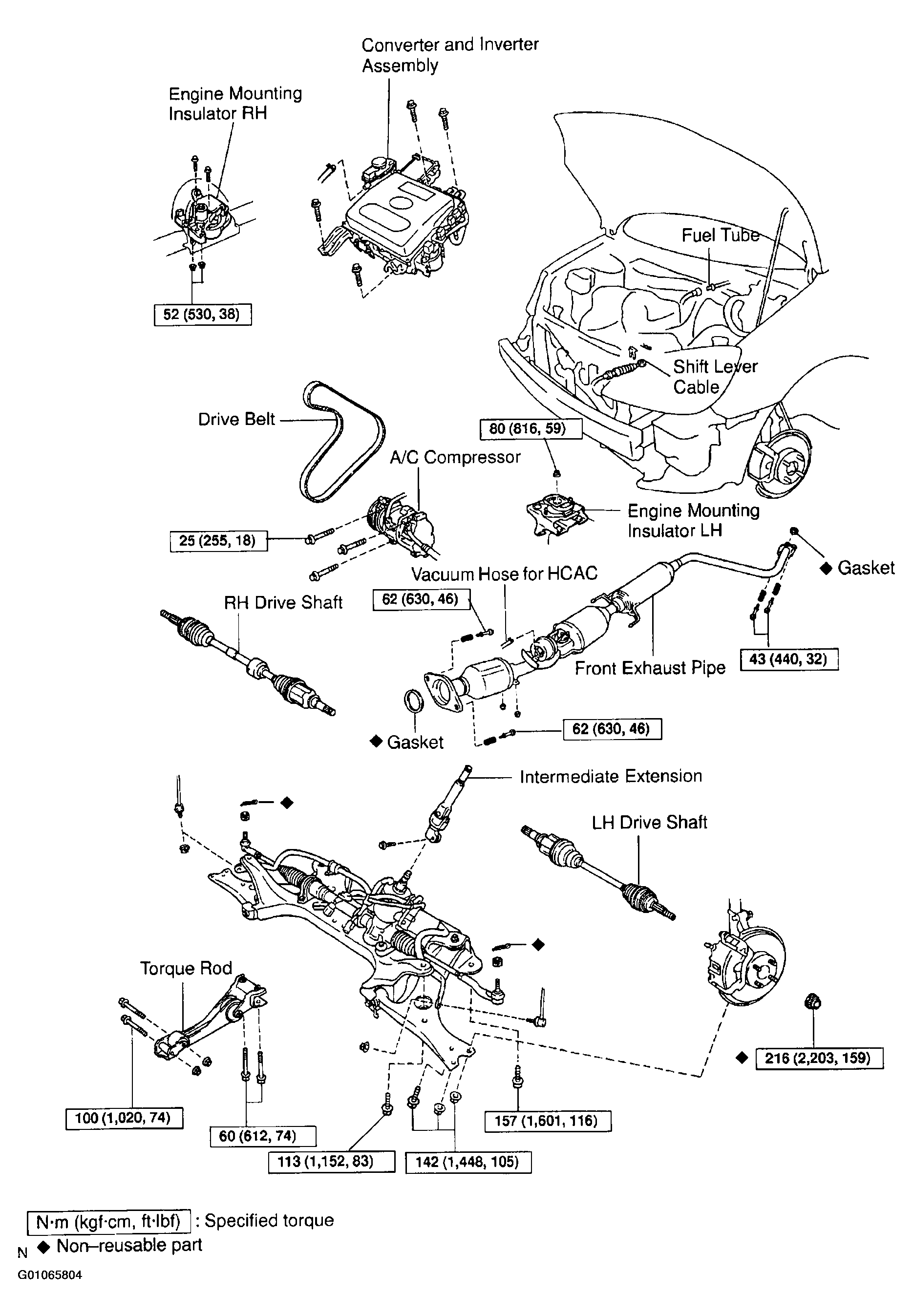

Fig 2: Locating Hybrid Transaxle Related Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

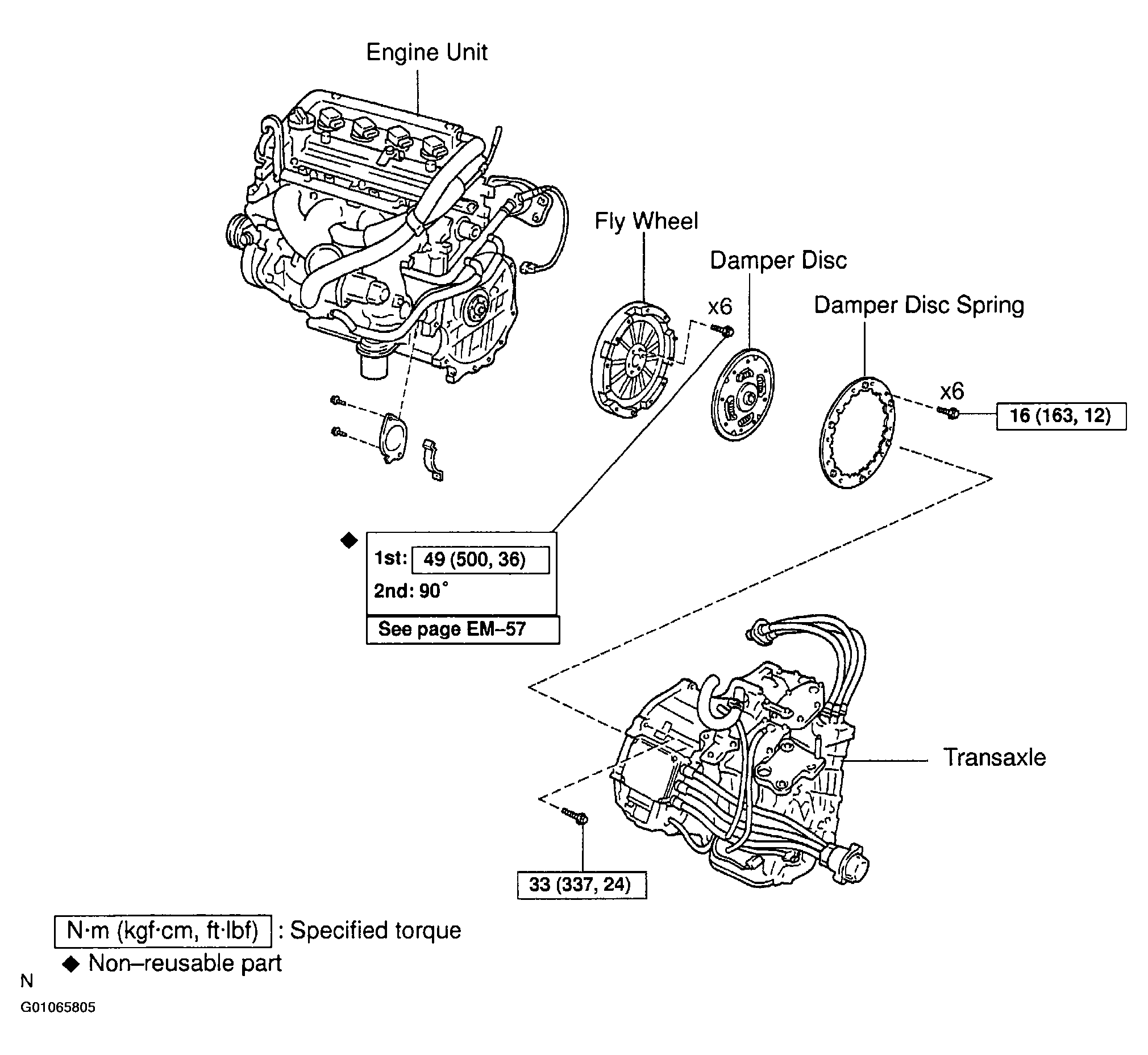

Fig 3: View Of Hybrid Transaxle & Engine Uncoupled

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
