Hybrid Transaxle Removal

Drain Transaxle Oil
Remove Hybrid Transaxle With Engine See Figure.
Separate Hybrid Transaxle And Engine
1. Remove the 8 bolts.

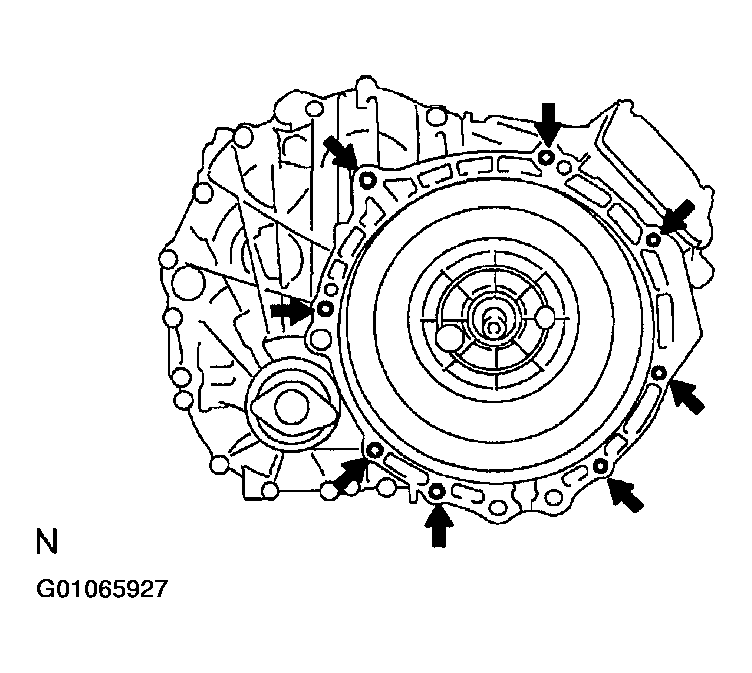

  Fig 1: Identifying Transaxle To Engine Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 33 N.m (332 kgf.cm, 24 ft.lbf) .
2. Separate the hybrid transaxle and the engine.
