Audio System: Troubleshooting: Radio

Radio Not Operating When Power Switch Turned To "ON"

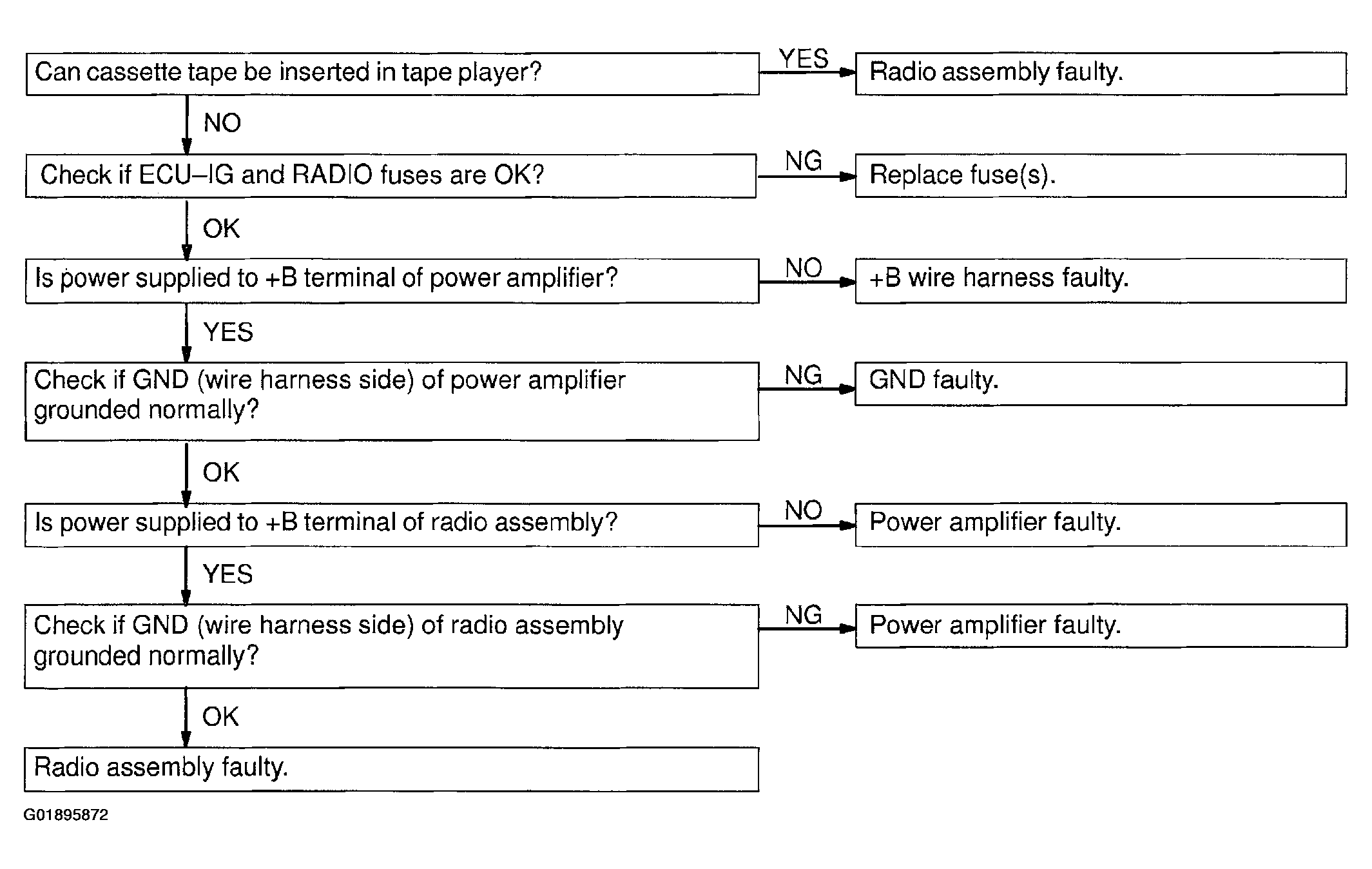

Fig 1: Troubleshooting No Power Coming In (Radio)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Display Indicates When Power Switch Turned To "ON", But No Sound (Including "Noise") Is Produced

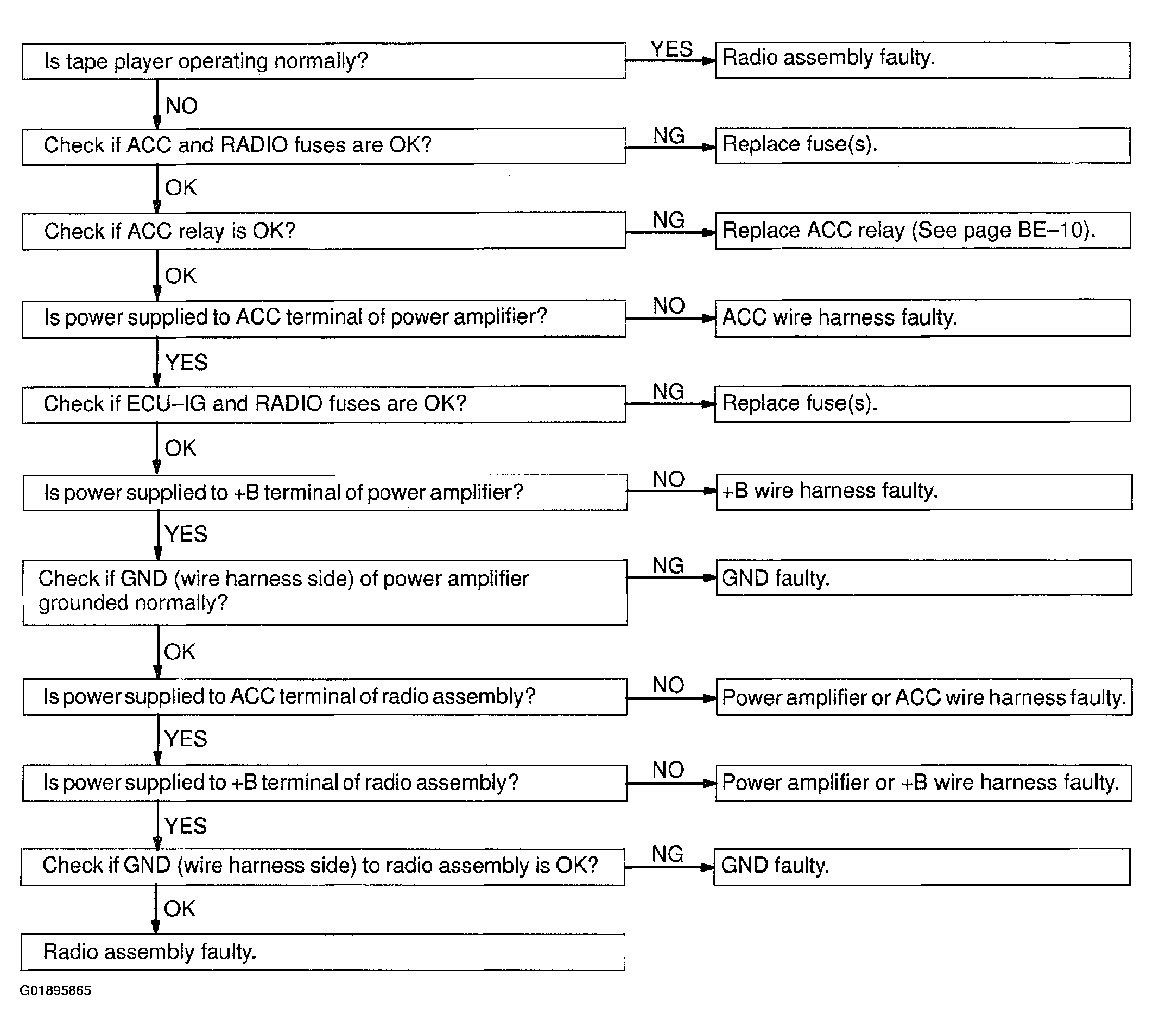

Fig 2: Troubleshooting Power Coming On But Radio Not Operating (Radio)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Noise Present, But AM-FM Not Operating

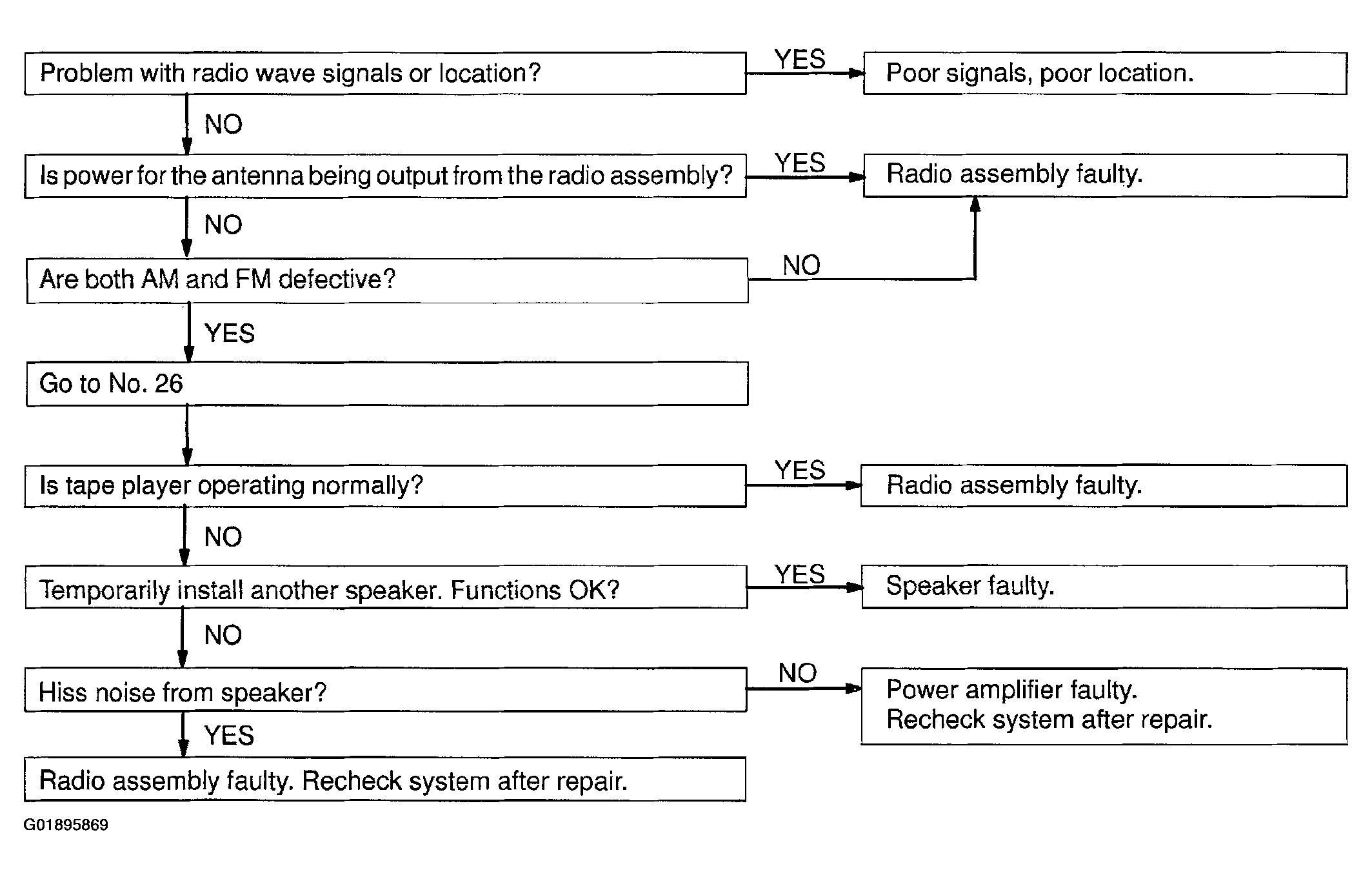

Fig 3: Troubleshooting Noise Present, AM-FM Not Operating (Radio)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Any Speaker Dose Not Work

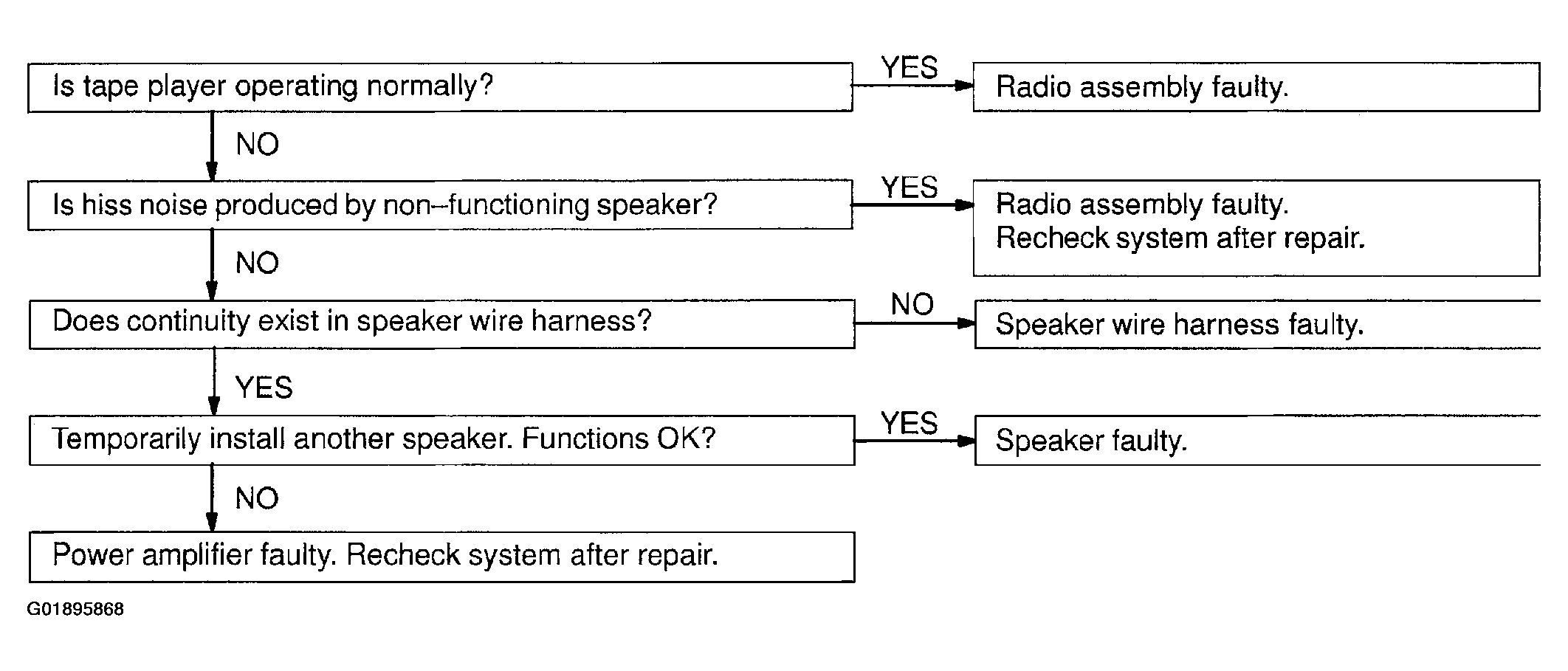

Fig 4: Troubleshooting Any Speaker Does Not Work (Radio)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Any AM Or FM Does Not Work & Few Preset Tuning Bands

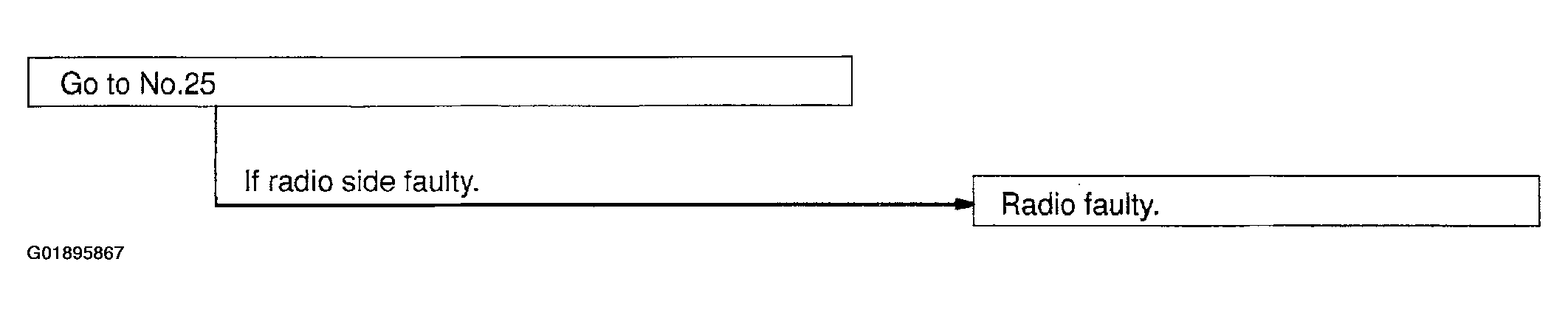

Fig 5: Troubleshooting AM Or FM Does Not Work & Few Preset Tuning Bands (Radio)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Poor Reception

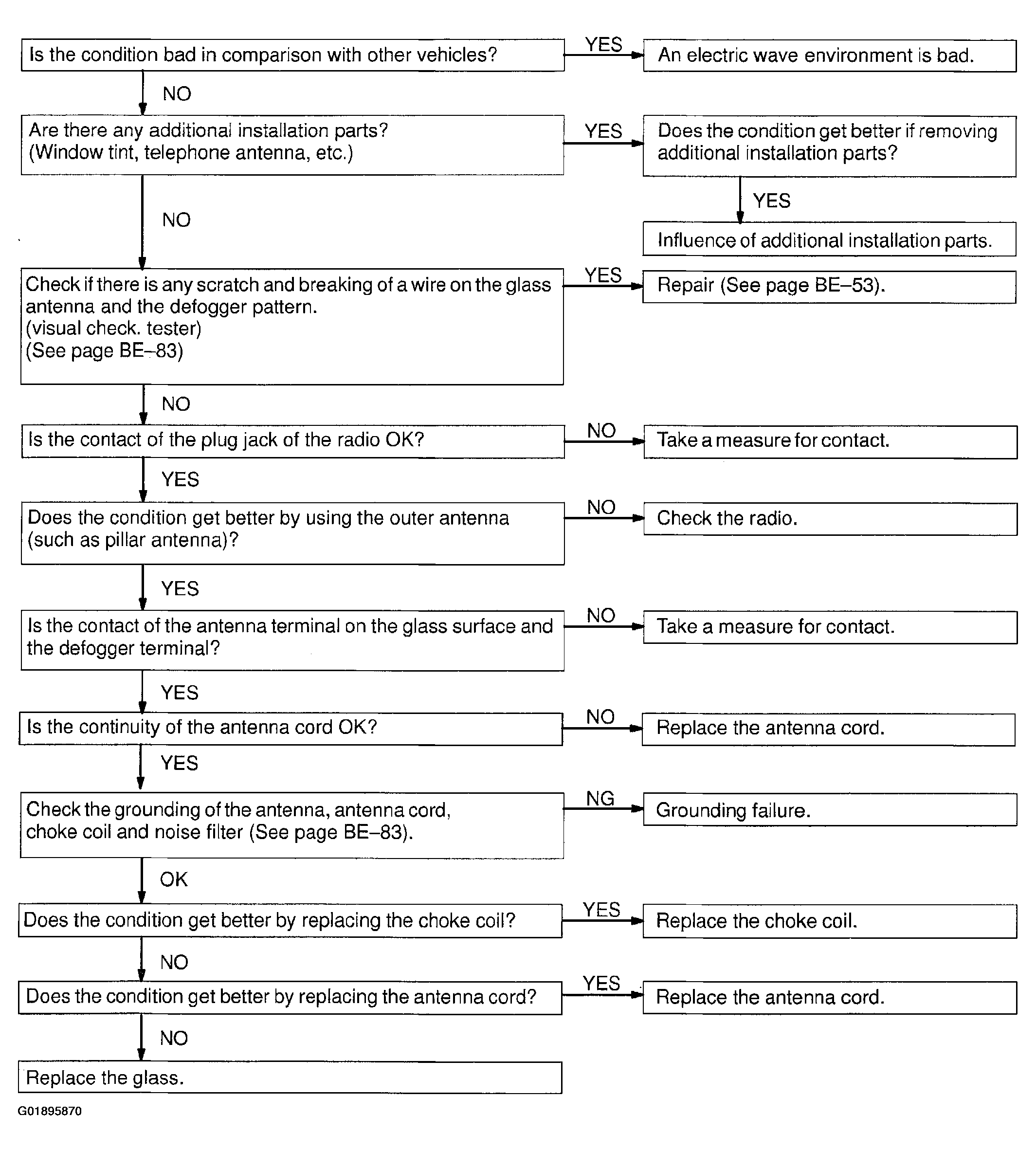

Fig 6: Troubleshooting AM Or FM Poor Reception (Radio)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Sound Quality Poor

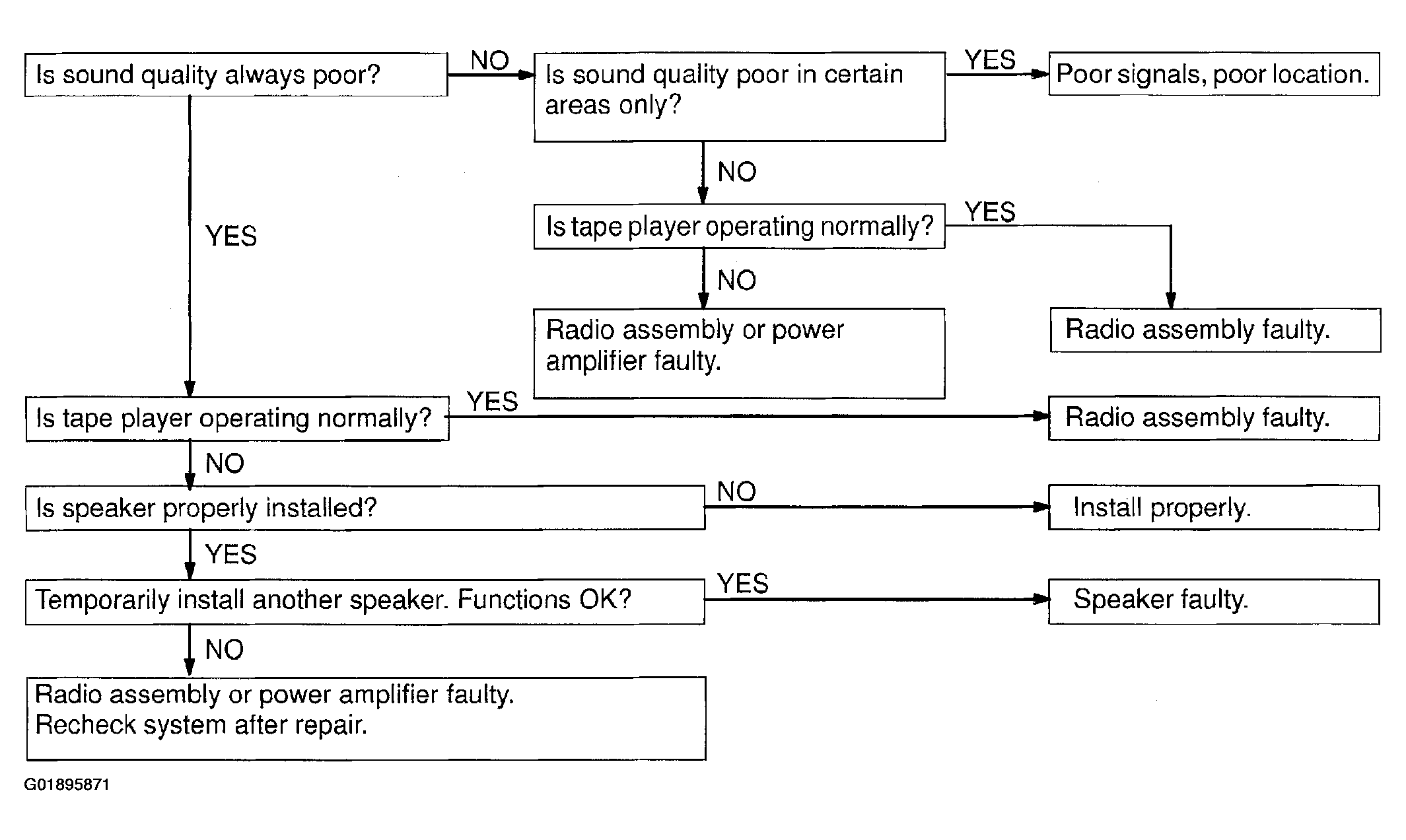

Fig 7: Troubleshooting Poor Sound Quality (Radio)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Preset Memory Disappears

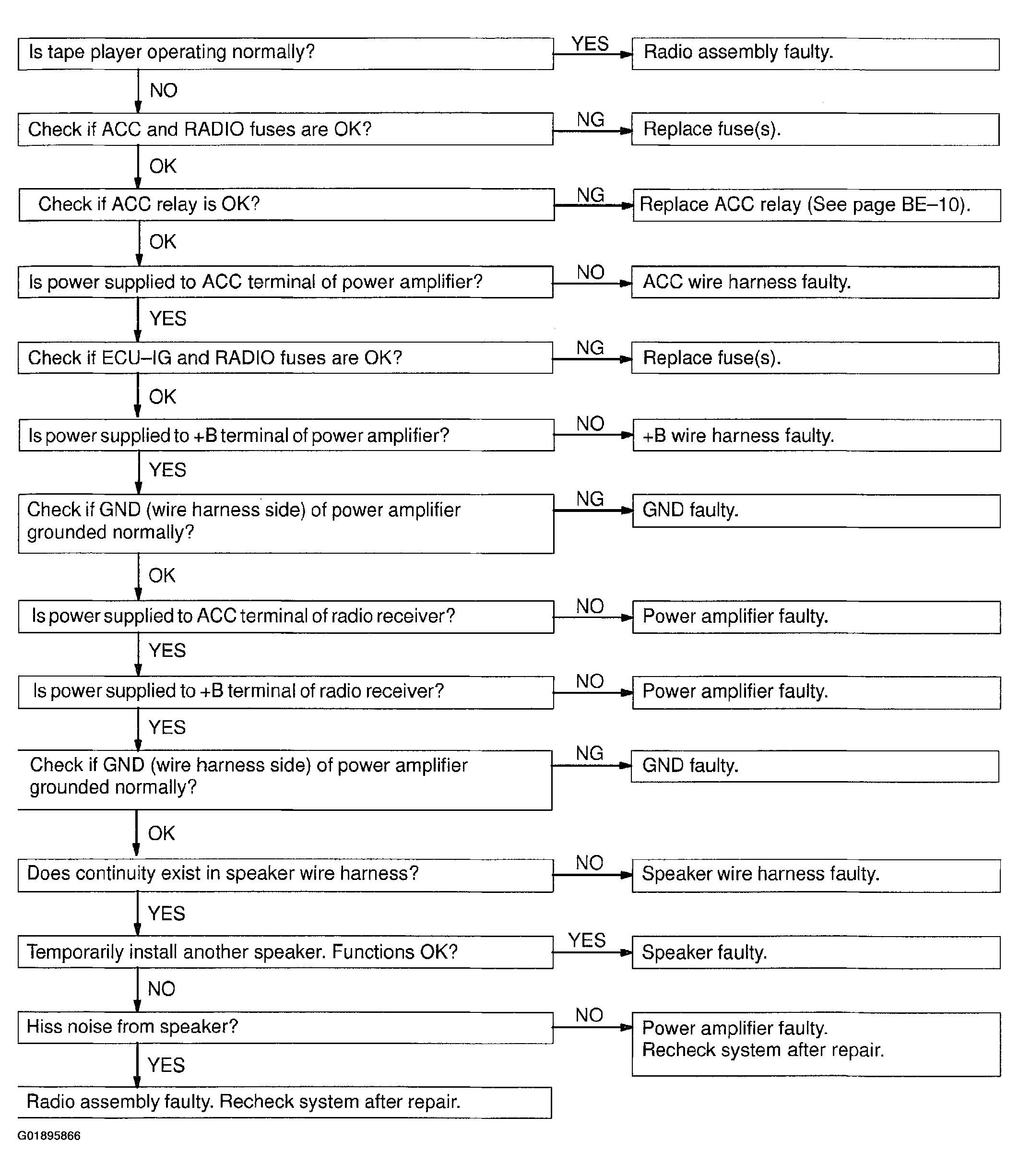

Fig 8: Troubleshooting Preset Memory Disappears (Radio)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
