Seat Belt: Components

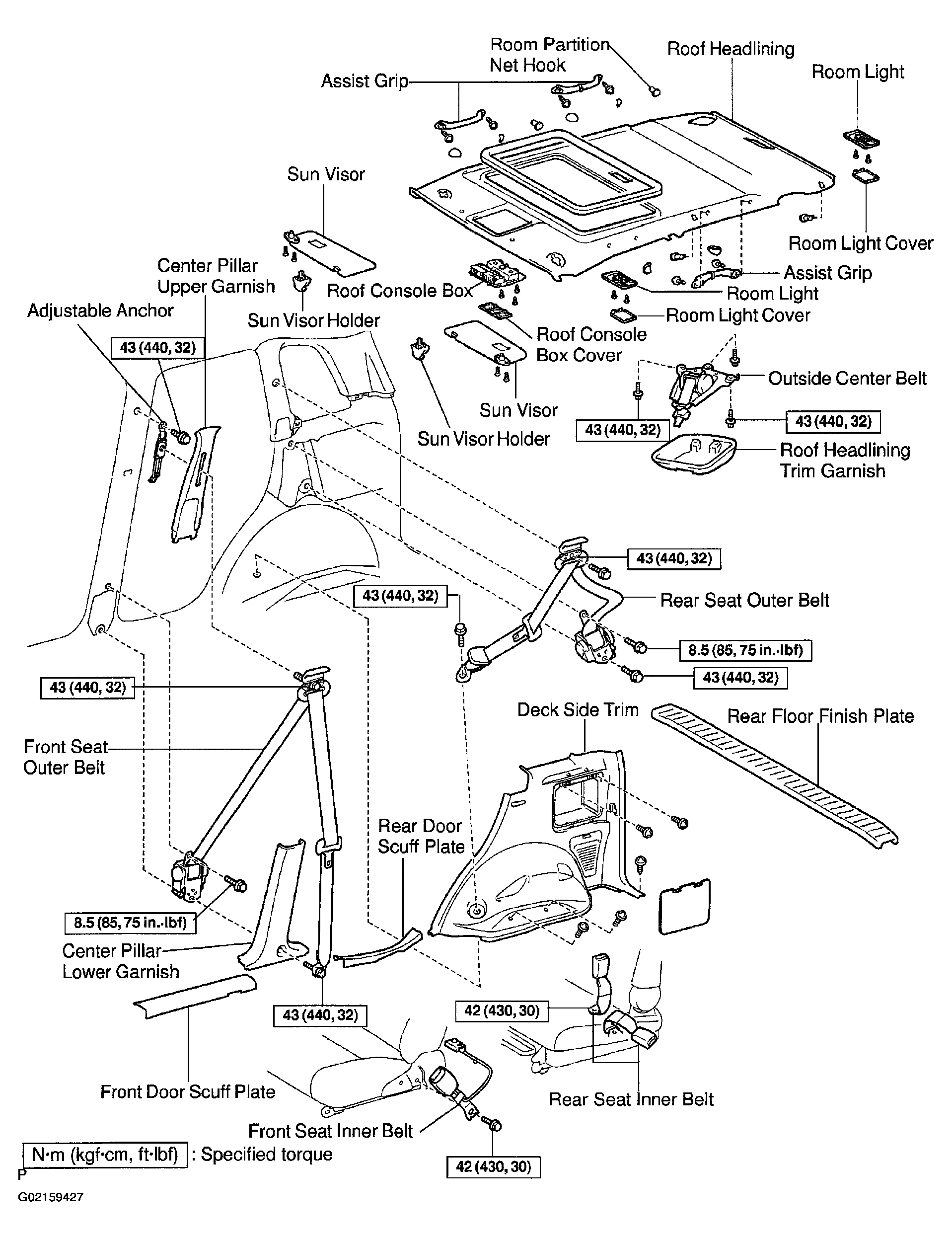

Fig 1: Identifying Components For Seat Belt Removal

G02159427

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
