Power Steering Vane Pump: Inspection

  1. Measure oil clearance between vane pump shaft and bushing  .
    Fig 1: Identifying Vane Pump Shaft & Bushing
    G01084679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Using a micrometer and a caliper gauge, measure the oil clearance.

    1. Standard clearance: 0.021 - 0.043 mm (0.0008 - 0.0017 in.)
    2. Maximum clearance: 0.07 mm (0.0028 in.)

    If it is more than the maximum, replace the front housing and vane pump shaft.

  2. Inspect vane pump rotor and vane plates  .
    1. Using a micrometer, measure the height, thickness and length of the 10 vane plates.
      1. Minimum height: 7.6 mm (0.299 in.)
      2. Minimum thickness: 1.405 mm (0.0553 in.)
      3. Minimum length: 11.993 mm (0.4722 in.)
      4. Fig 2: Measuring Vane Plates
        G01084680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a feeler gauge, measure the clearance between the vane pump rotor groove and vane plate.
      1. Maximum clearance: 0.025 mm (0.0010 in.)
      2. Fig 3: Measuring Vane Pump Rotor Groove Clearance
        G01084681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If it is more than the maximum, replace the vane plate and/or vane pump rotor with the one having the same mark stamped on the cam ring.

    1. Inscribed mark: 0, 1, 2, 3, or 4
      Fig 4: Identifying Inscribed Marks
      G01084683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: There are 5 vane plate lengths corresponding to the following vane pump rotor and cam ring marks:

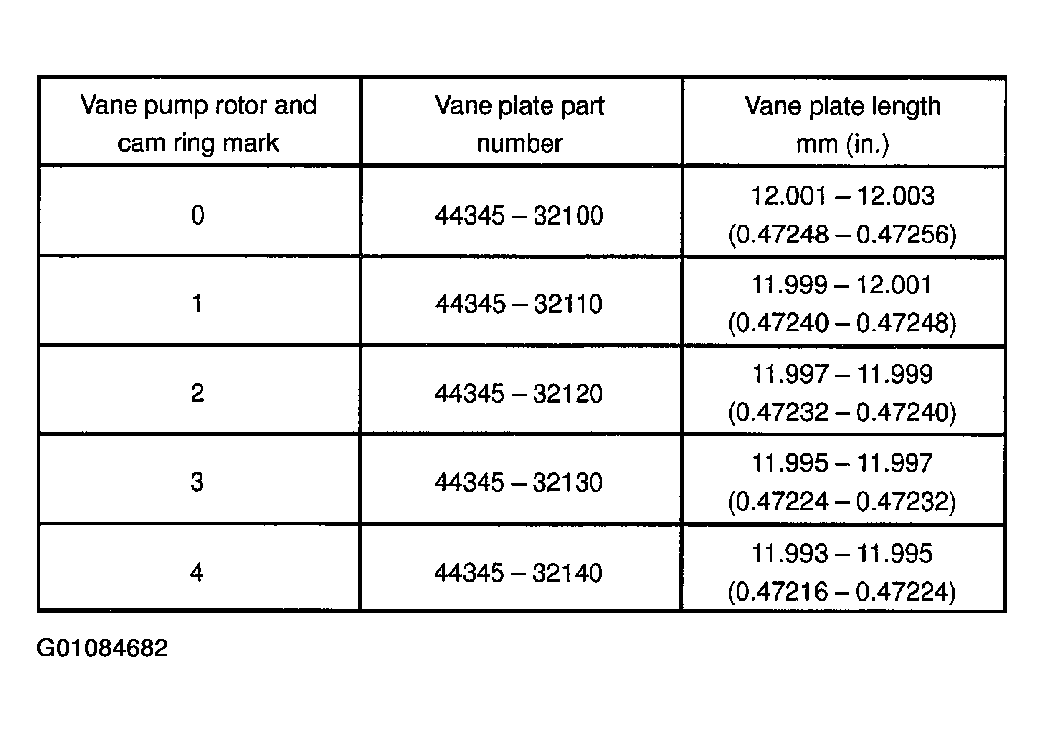

    Fig 5: Displaying Plate Length Corresponding Specification
    G01084682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Inspect flow control valve  .
    1. Coat the flow control valve with power steering fluid and check that it falls smoothly into the valve hole of the front housing by its own weight.
      Fig 6: Installing Flow Control Valve Into Pump Housing
      G01084684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the flow control valve for leakage. Close one of the holes and apply compressed air of 392 - 490 kPa (4 - 5 kgf/cm2 , 57 - 71 psi) into the opposite side hole, and confirm that air does not come out from the end hole.
      Fig 7: Checking Flow Control Valve For Leakage
      G01084685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If necessary, replace the flow control valve with the one having the same letter as inscribed on the front housing.

    1. Inscribed mark: A, B, C, D, E or F
      Fig 8: Identifying Front Control Valve Letter
      G01084686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  4. Inspect spring  .

    Using vernier calipers, measure the free length of the spring.

    1. Minimum free length: 36.9 mm (1.453 in.)

    If it is not within the specification, replace the spring.

    Fig 9: Measuring Spring Free Length
    G01084687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
