Compressor And Magnetic Clutch: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Remove pressure plate
1. Using SST and a socket wrench, remove the shaft bolt. See Fig 1.
  SST 07112-76060

  Torque: 18 N.m (184 kgf.cm, 12.3 ft.lbf)

  Fig 1: Removing Shaft Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install SST on the pressure plate. See Fig 2.
  SST 07112-66040

  Fig 2: Installing Magnetic Clutch Removal (SST)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and socket wrench, remove the pressure plate. See Fig 3.
  SST 07112-66040, 07112-76060,

  Fig 3: Remove Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the shims from the pressure plate. See Fig 4.
Fig 4: Remove Pressure Plate Shims
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove rotor :
1. Using SST, remove the snap ring. See Fig 5.
  SST 95994-10020
2. Using a plastic hammer, tap the rotor off the shaft. See Fig 7.
NOTE: Be careful not to damage the pulley when tapping on the rotor.

Fig 7: Removing Rotor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove stator :

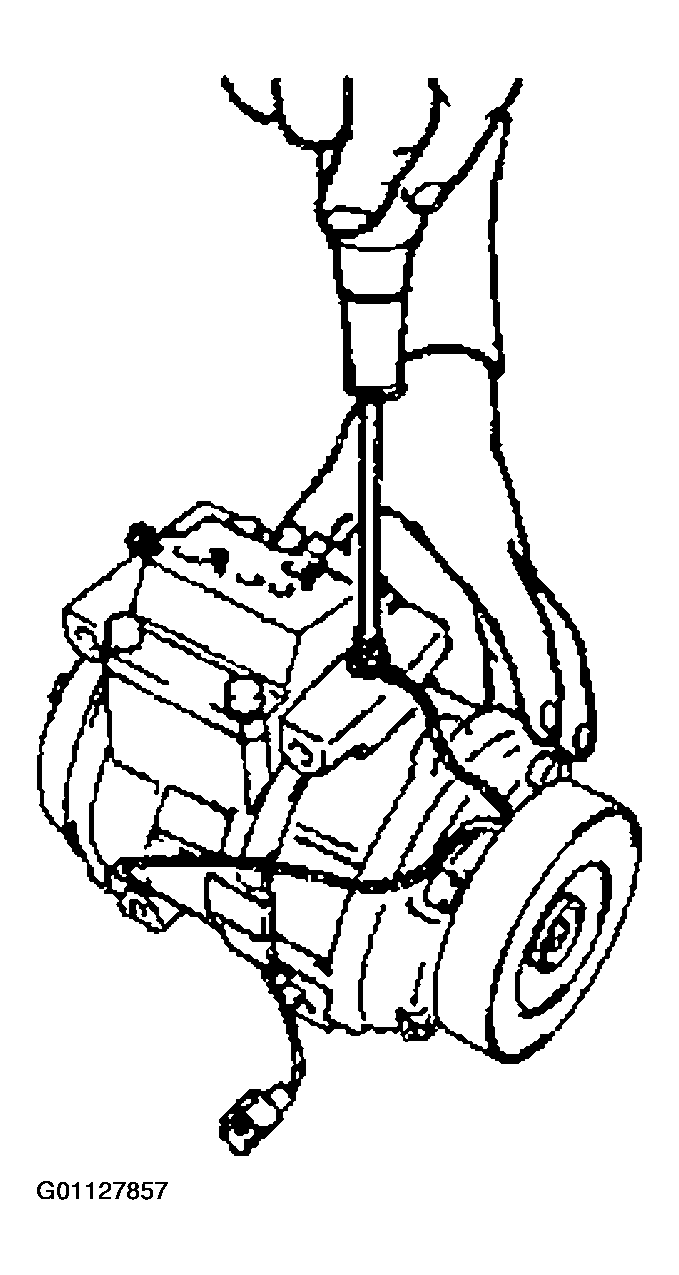

1. Disconnect the stator lead wire from the compressor housing. See Fig 8.

  Fig 8: Removing Stator Lead Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

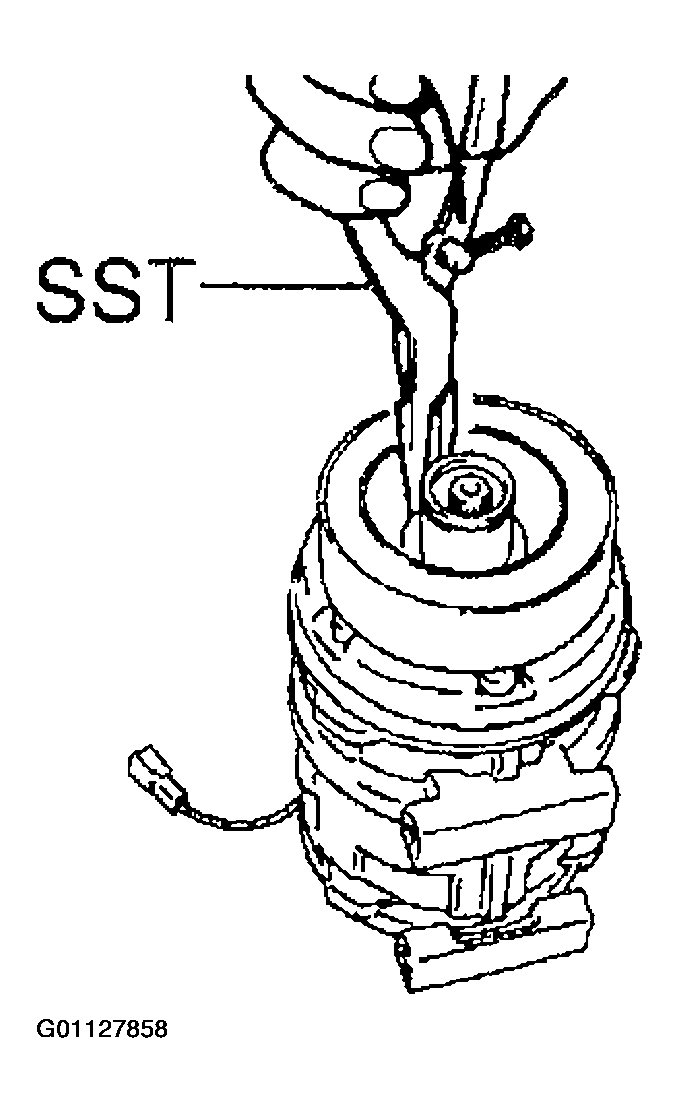

2. Using SST, remove the snap ring.
  SST 95994-10020
3. Remove the stator. See Fig 11.
Fig 11: Removing Stator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
