Set On

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Do not connect the wrong hoses.
  1. Connect charge hose to manifold gauge set  . See Fig 1.

    Tighten the nuts by hand.

  2. Connect quick disconnect adapters to charging hoses  .

    Tighten the nuts by hand.

  3. Close both hand valves of manifold gauge set  .
  4. Remove caps from service valves on refrigerant line  .

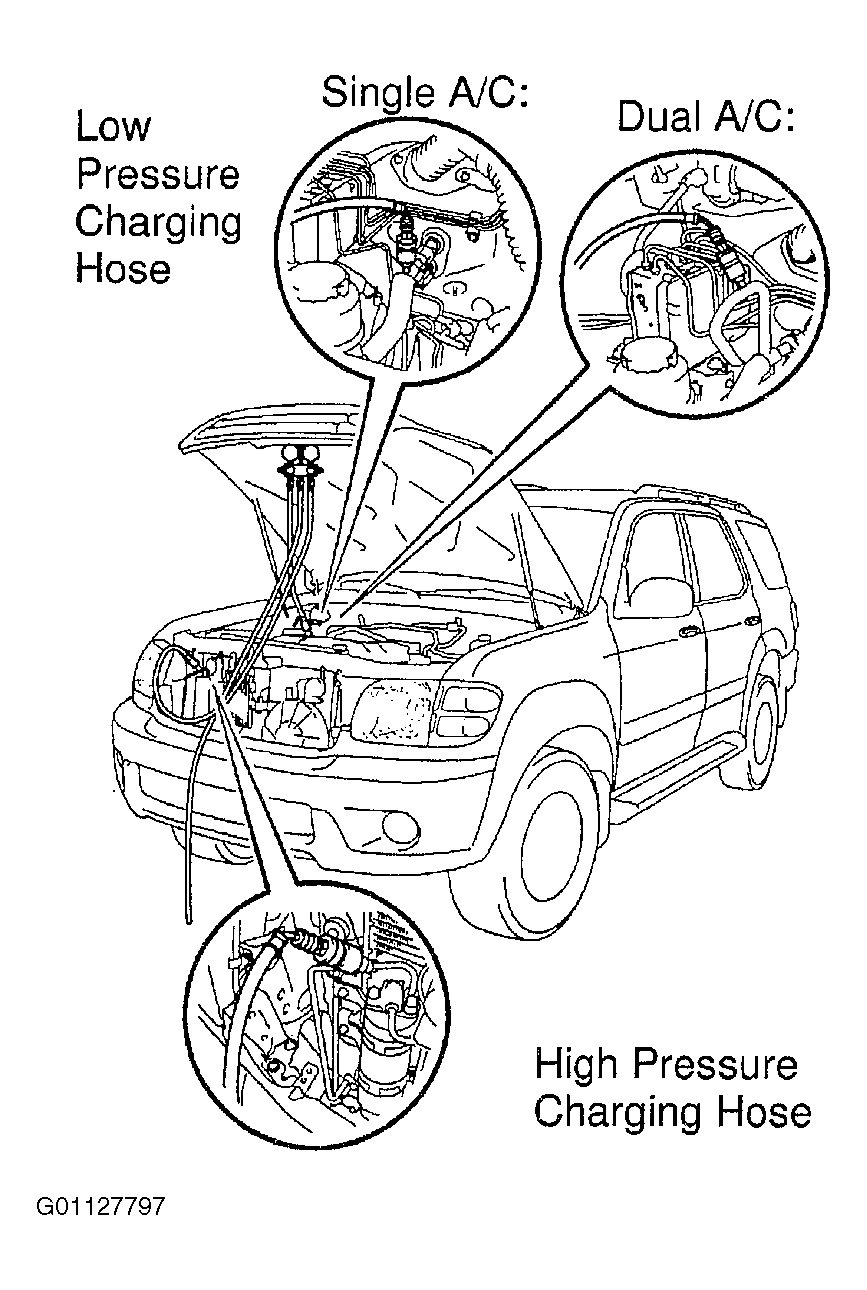

    Fig 1: Installing Manifold Gauge Set
    G01127797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. NOTE: Push the quick disconnect adapter onto the service valve, then slide, then slide the sleeve of the quick disconnect adapter downward to lock it.
    Fig 2: Installing Quick Disconnect Adapter
    G01127798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Connect quick disconnect adapters to service valves  . See Fig 2.
