Refrigerant Line: Location

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

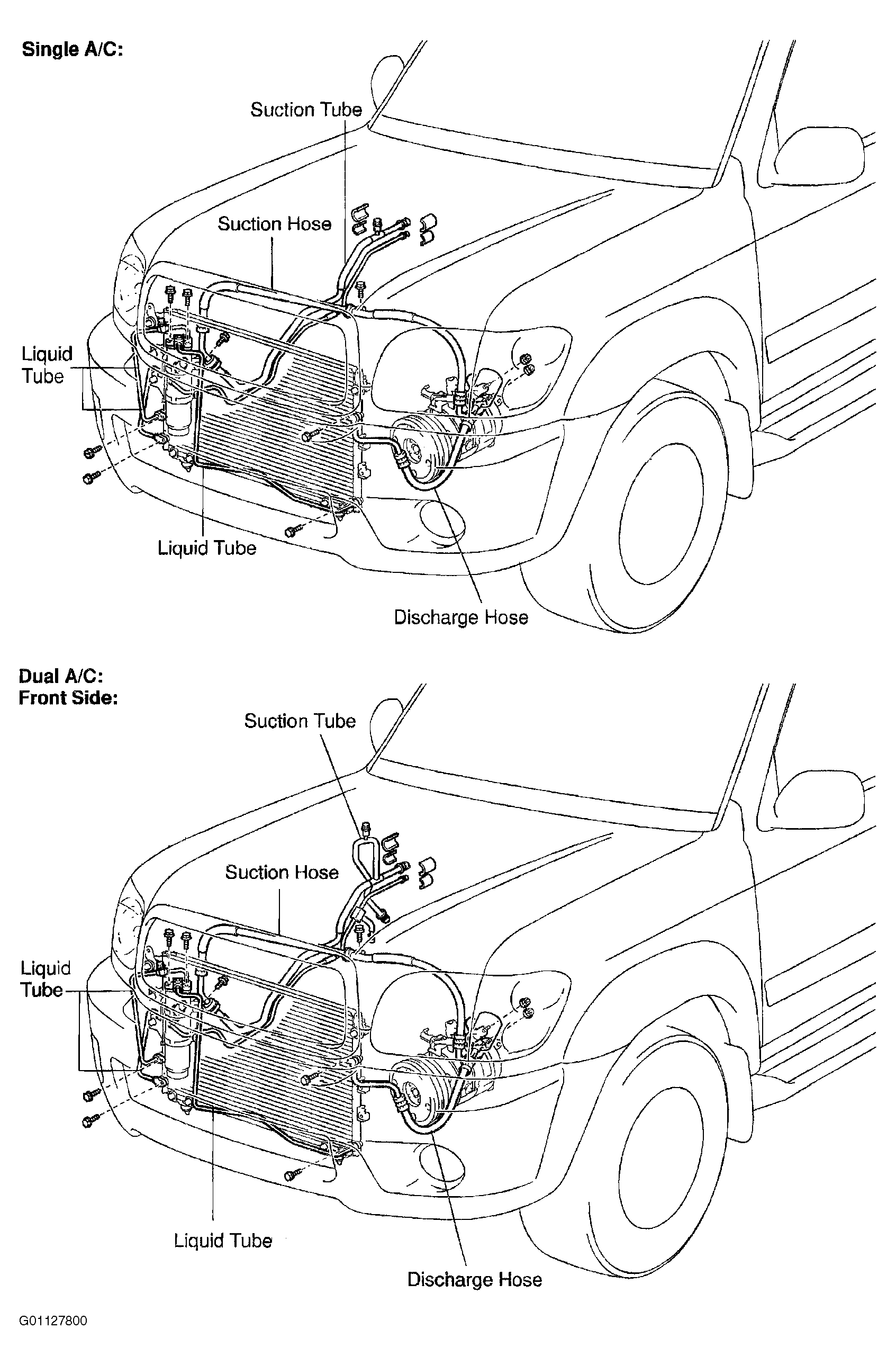

Fig 1: Locating Engine Compartment A/C Hoses
G01127800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

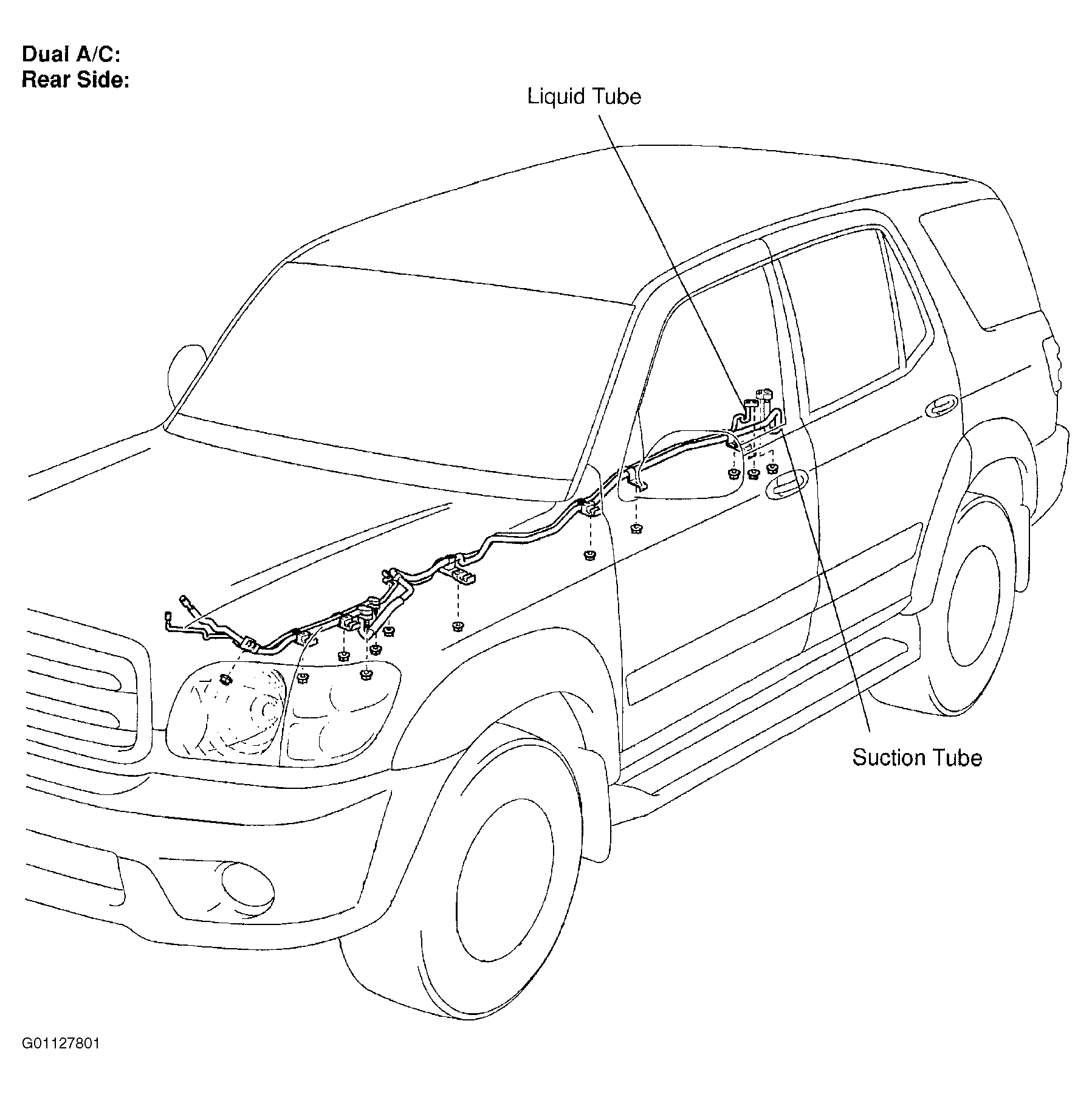

Fig 2: Locating Rear Side A/C Hoses (Dual A/C)
G01127801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
