How To Proceed With Troubleshooting

NOTE: Troubleshooting of the wireless door lock control system is based on the premise that the door lock control system is operating normally. Accordingly, before troubleshooting the wireless door lock control system, first make certain that the door lock control system is operating normally. Then perform the troubleshooting in accordance with the procedures in CUSTOMER PROBLEM ANALYSIS CHECK .

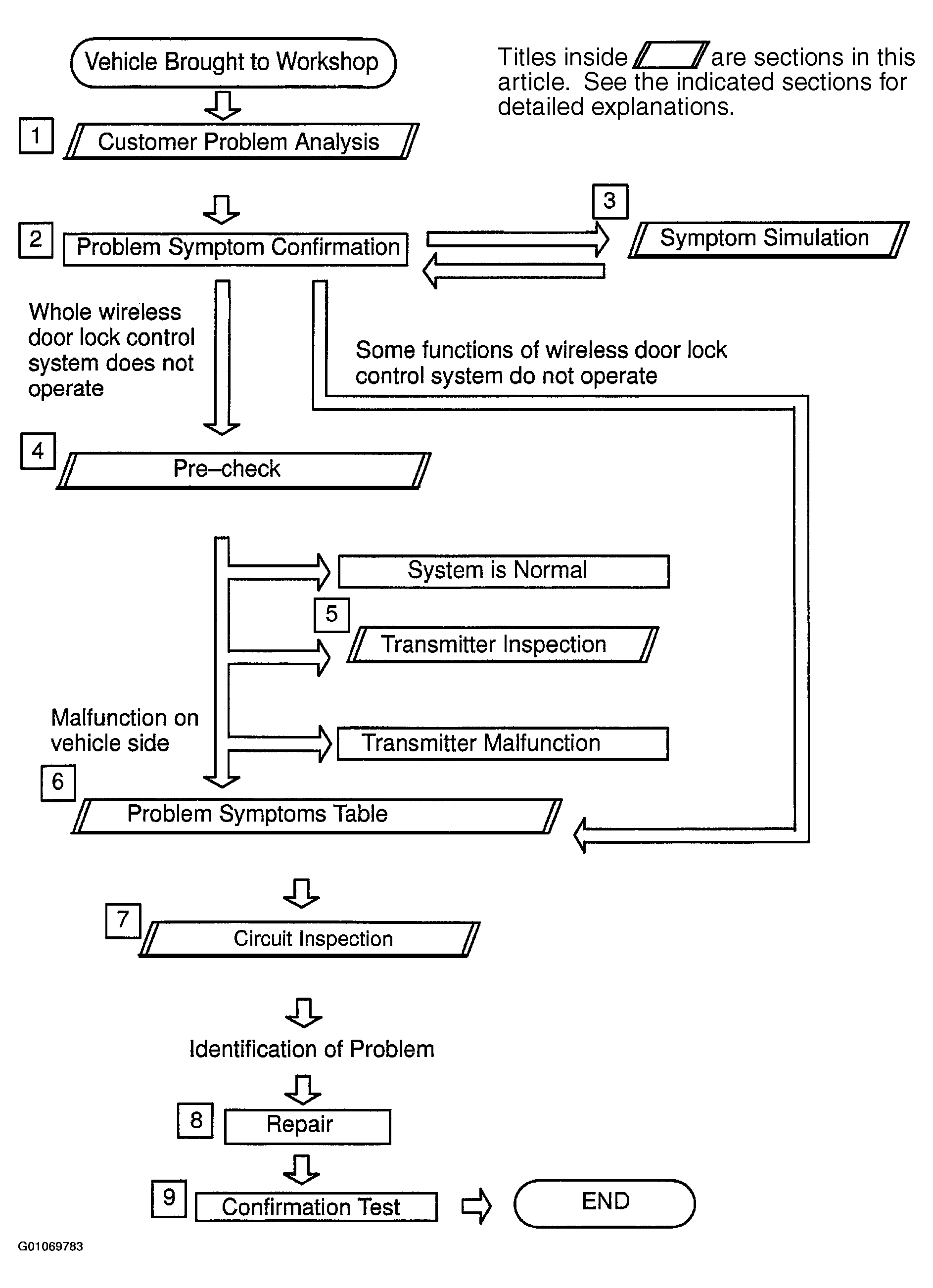

Fig 1: Displaying Troubleshooting Flow Chart
G01069783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
