Power Windows Control System
›
Power Window Control System
›
Location
Power Window Control System: Location

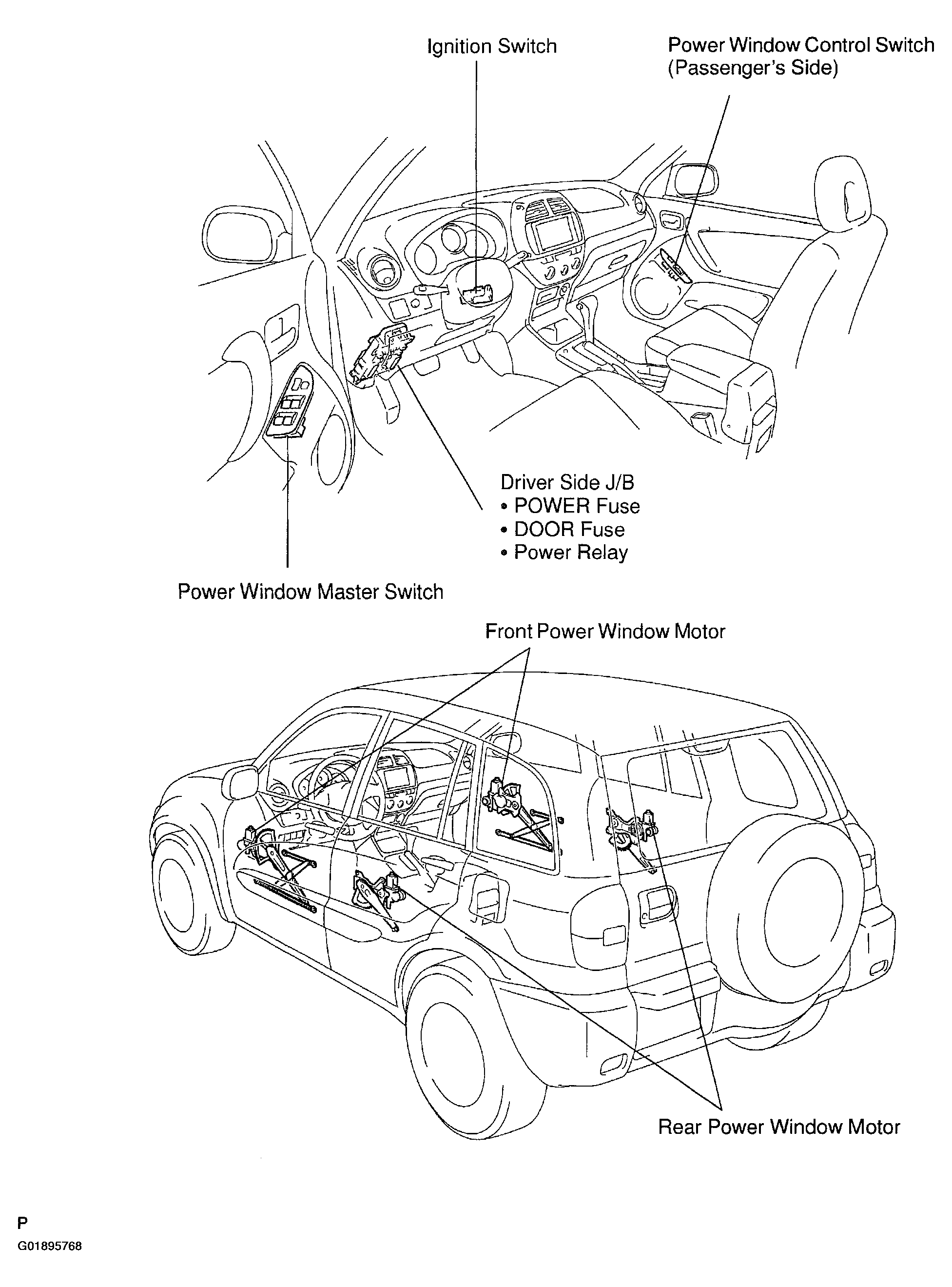

Fig 1: Displaying Power Window Control System Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
