Power Steering Gear: Components

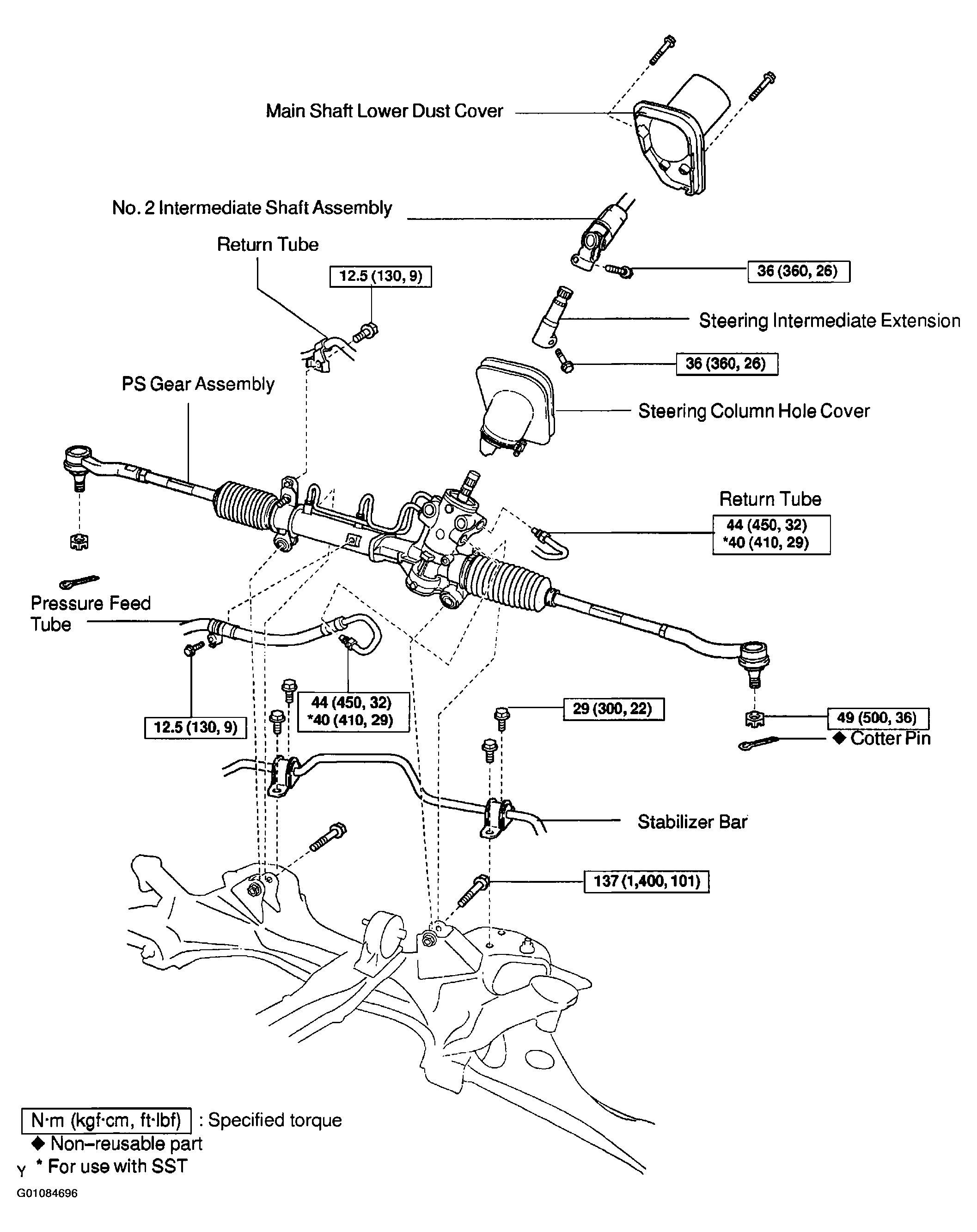

Fig 1: Identifying Components For Power Steering Gear Removal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

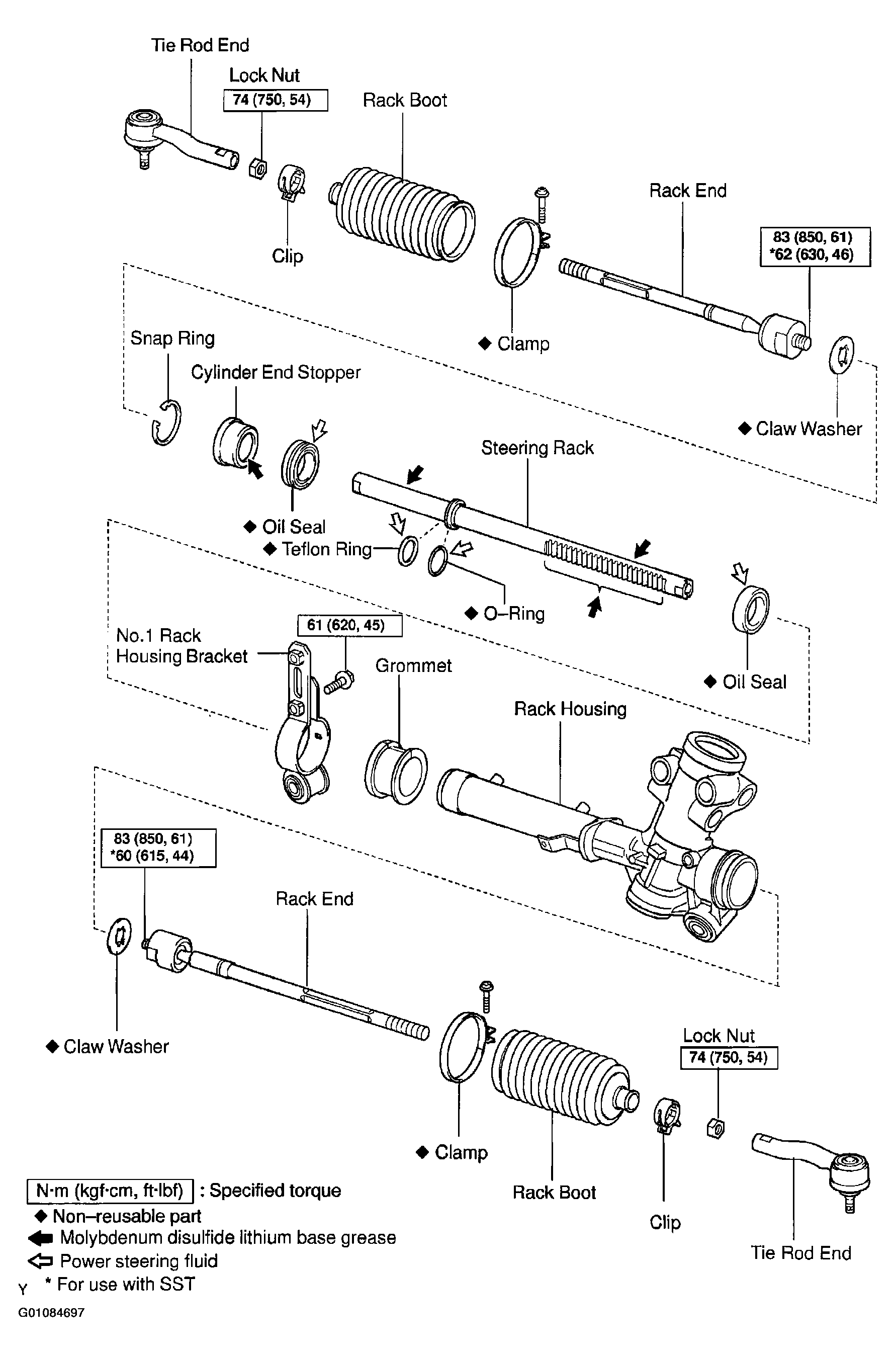

Fig 2: Exploded View Of Power Steering Gear (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

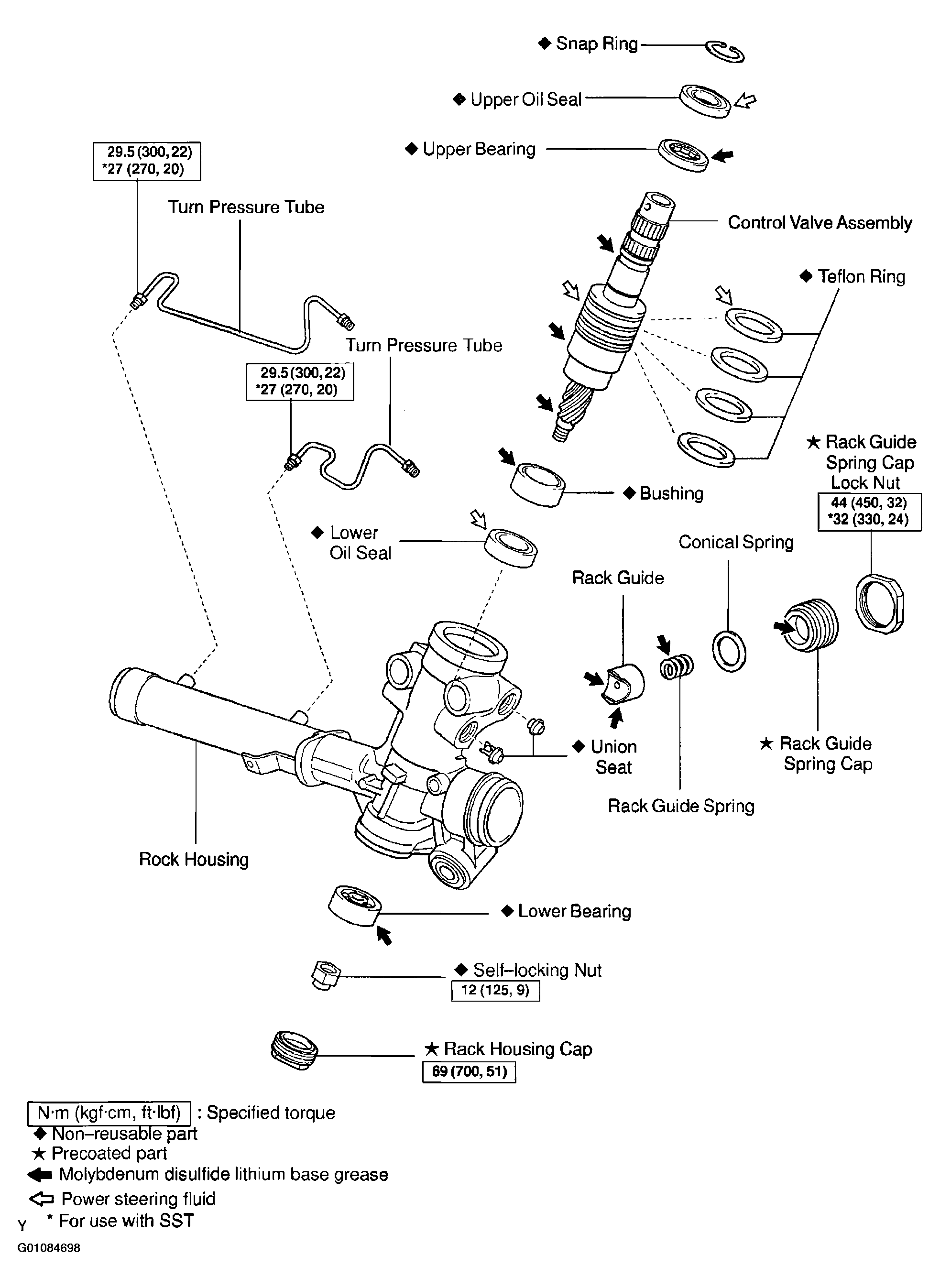

Fig 3: Exploded View Of Power Steering Gear (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
