Cylinder Block: Components

WARNING: This page is about a different variant/trim than selected.

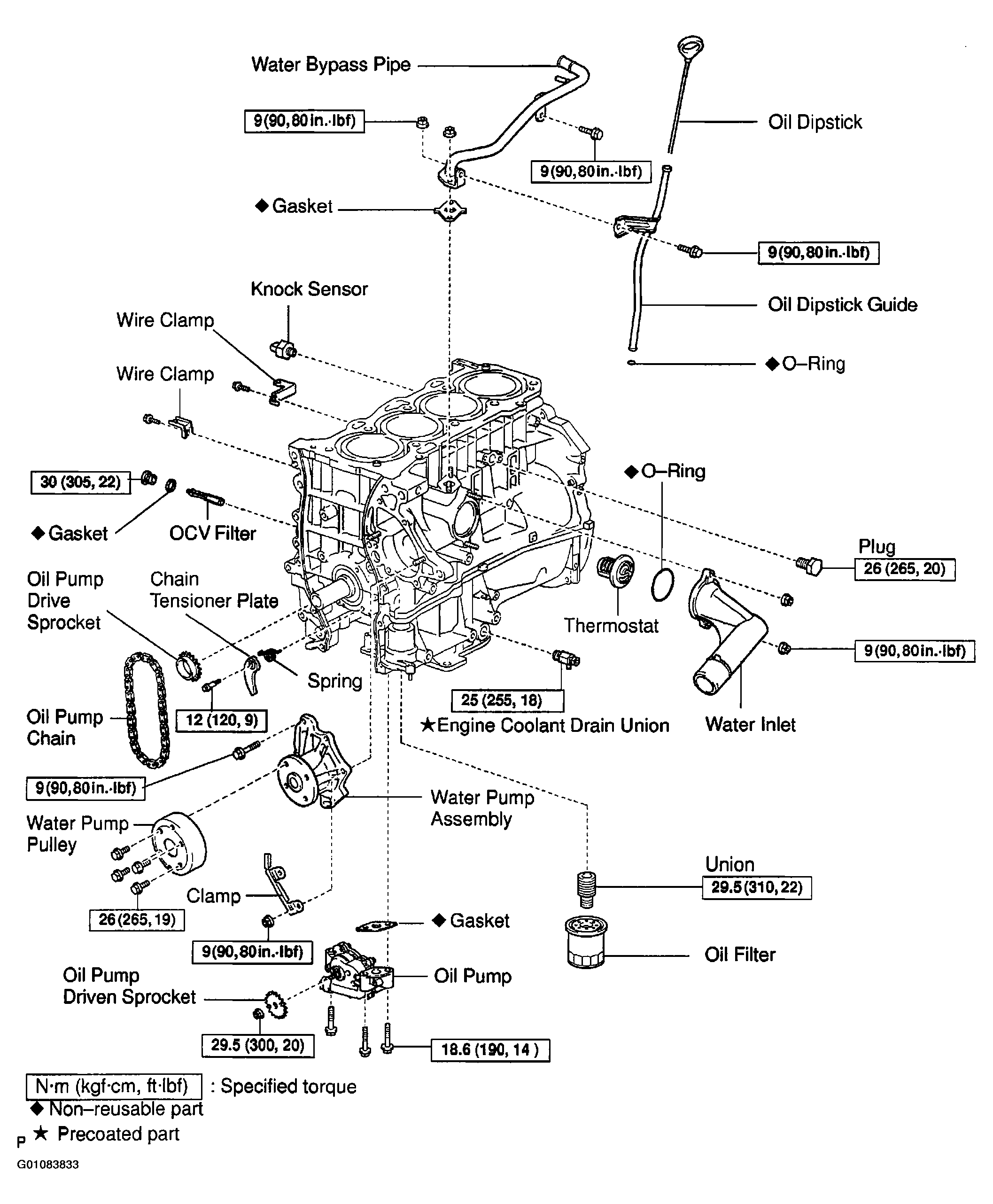

Fig 1: Displaying Cylinder Block Components (1 Of 2)
G01083833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

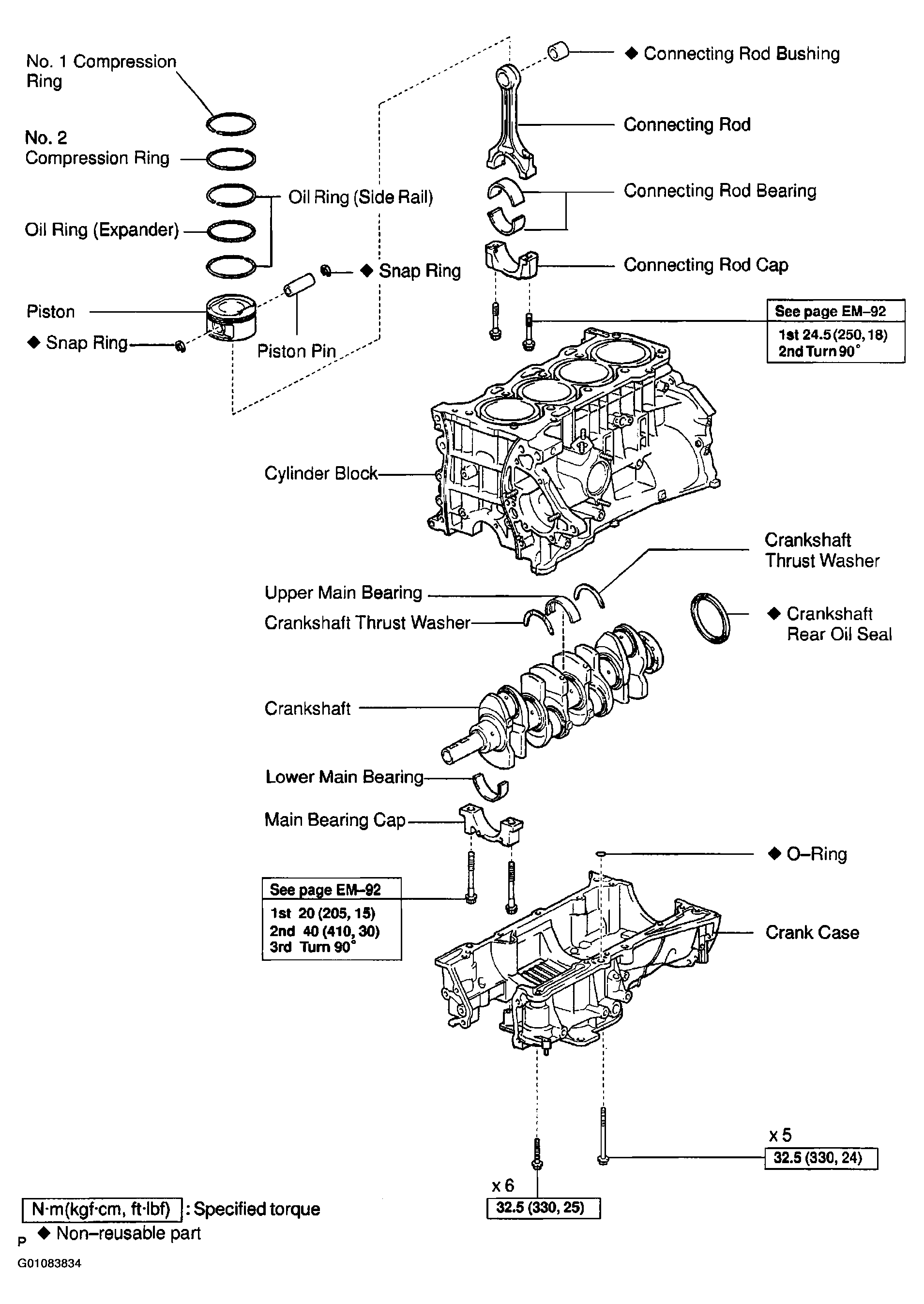

Fig 2: Displaying Cylinder Block Components (2 Of 2)
G01083834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
