Engine Unit: Components

WARNING: This page is about a different variant/trim than selected.

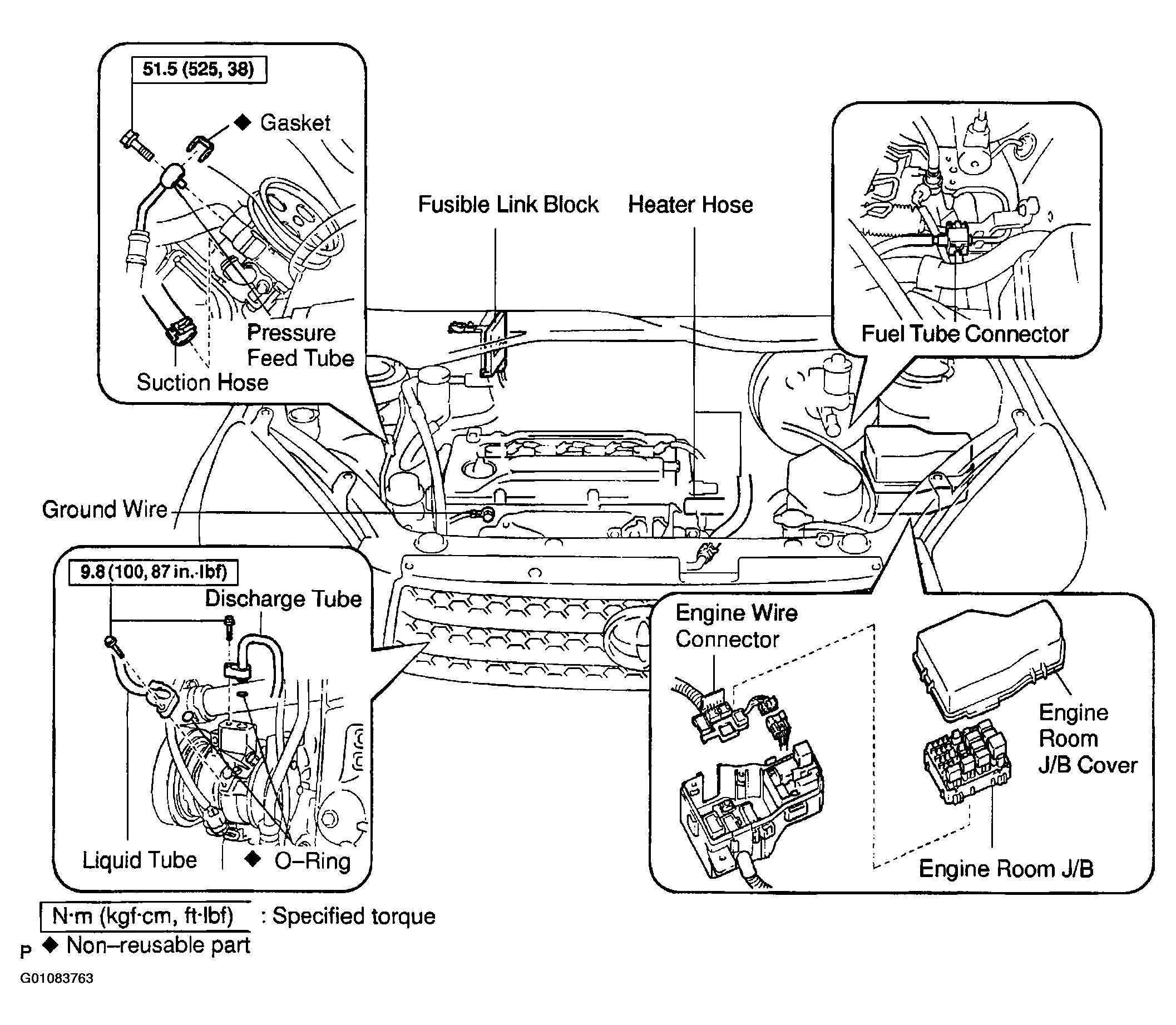

Fig 1: Displaying Air Unit Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

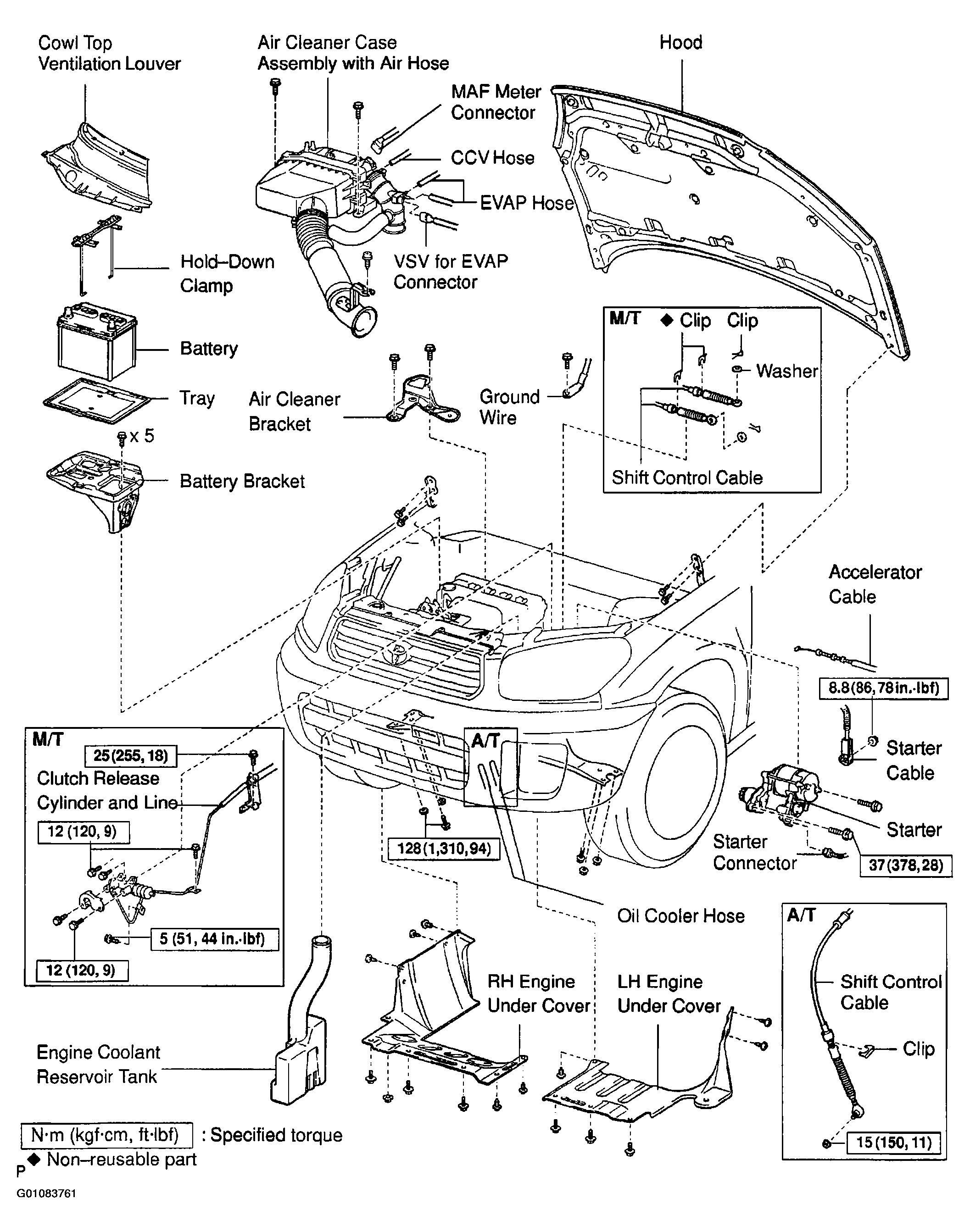

Fig 2: Displaying Air Unit Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

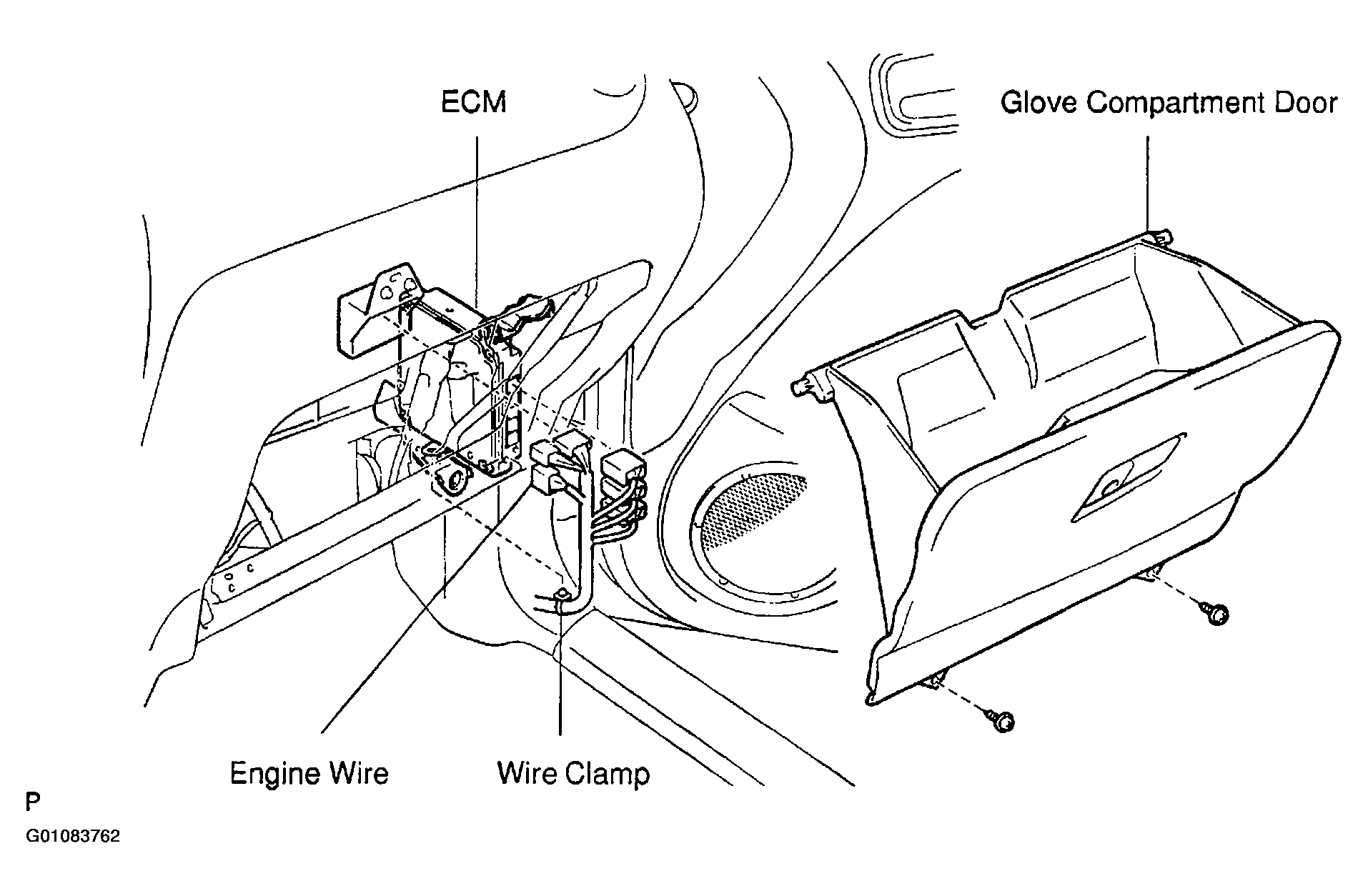

Fig 3: Displaying Air Unit Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

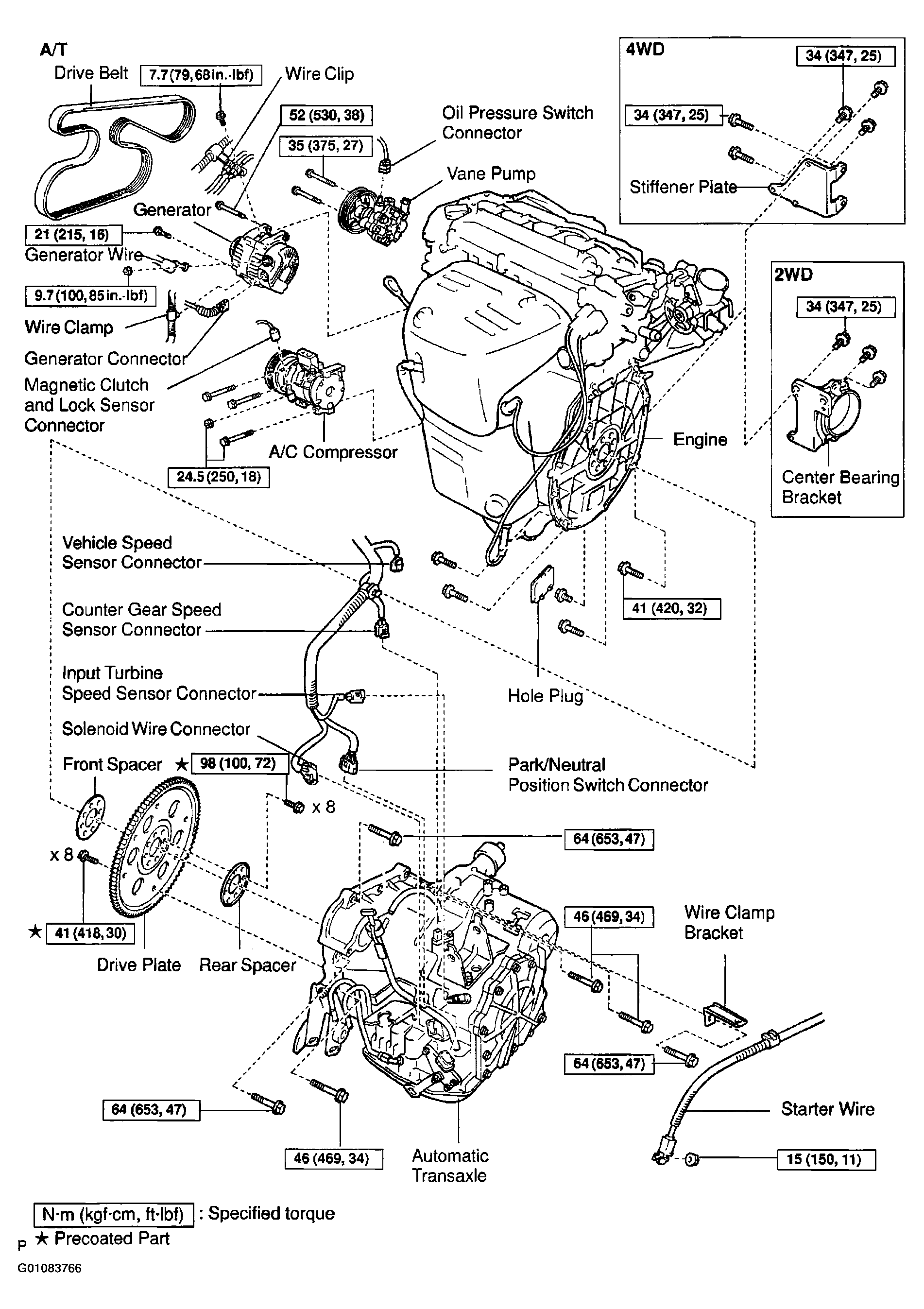

Fig 4: Displaying Air Unit Components (4 Of 6)

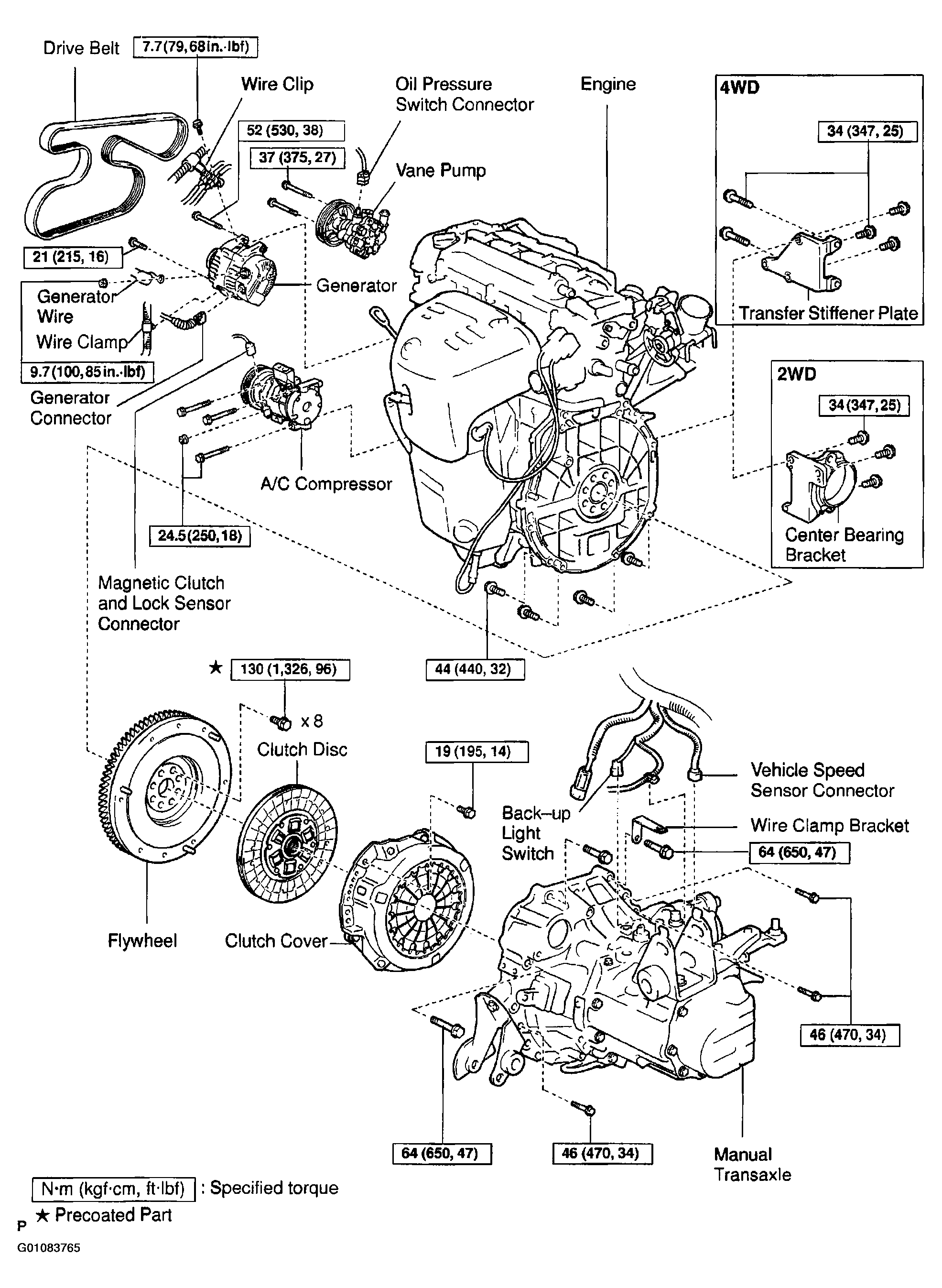

Fig 5: Displaying Air Unit Components (5 Of 6)

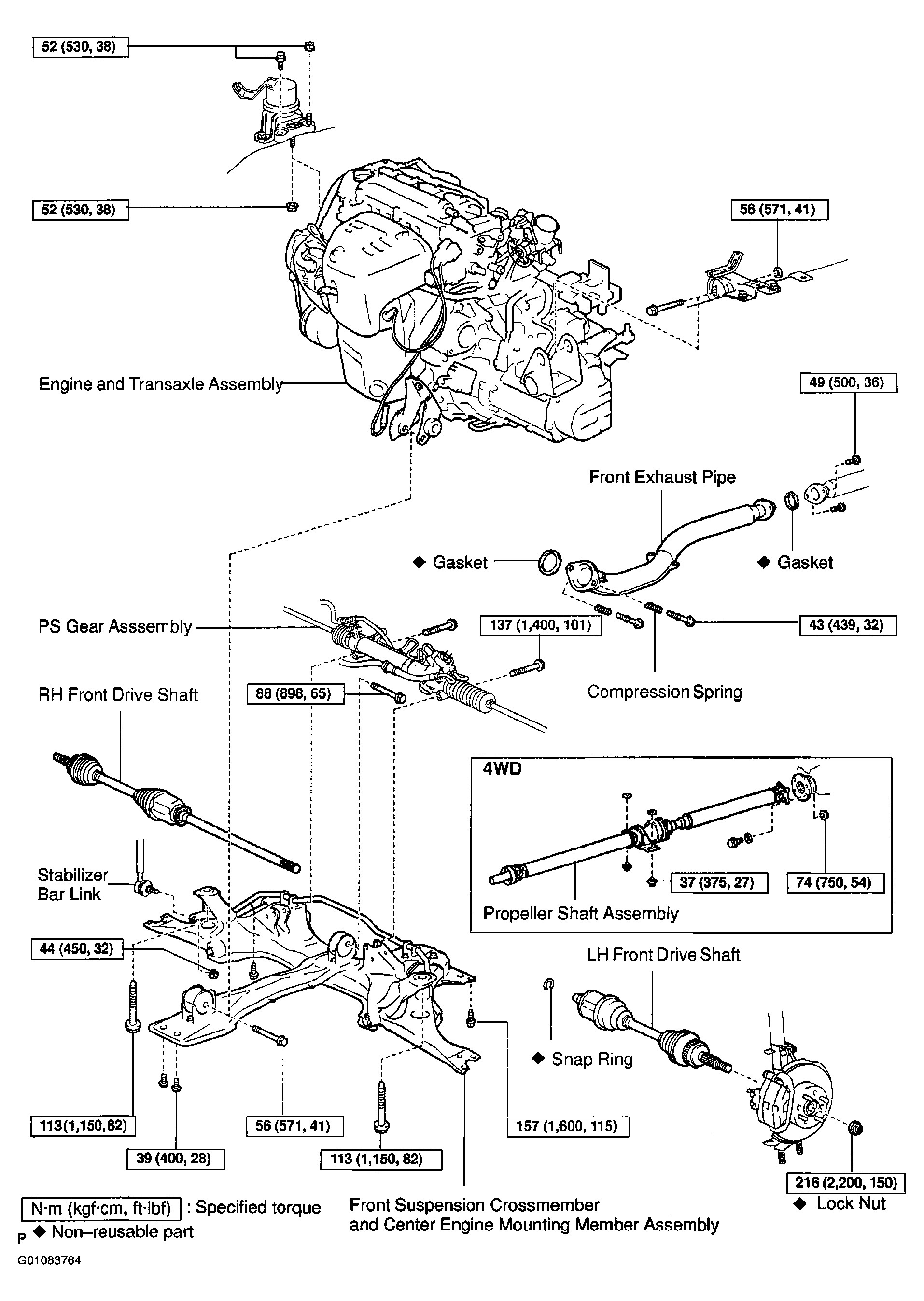

Fig 6: Displaying Air Unit Components (6 Of 6)
