Timing Chain: Components

WARNING: This page is about a different variant/trim than selected.

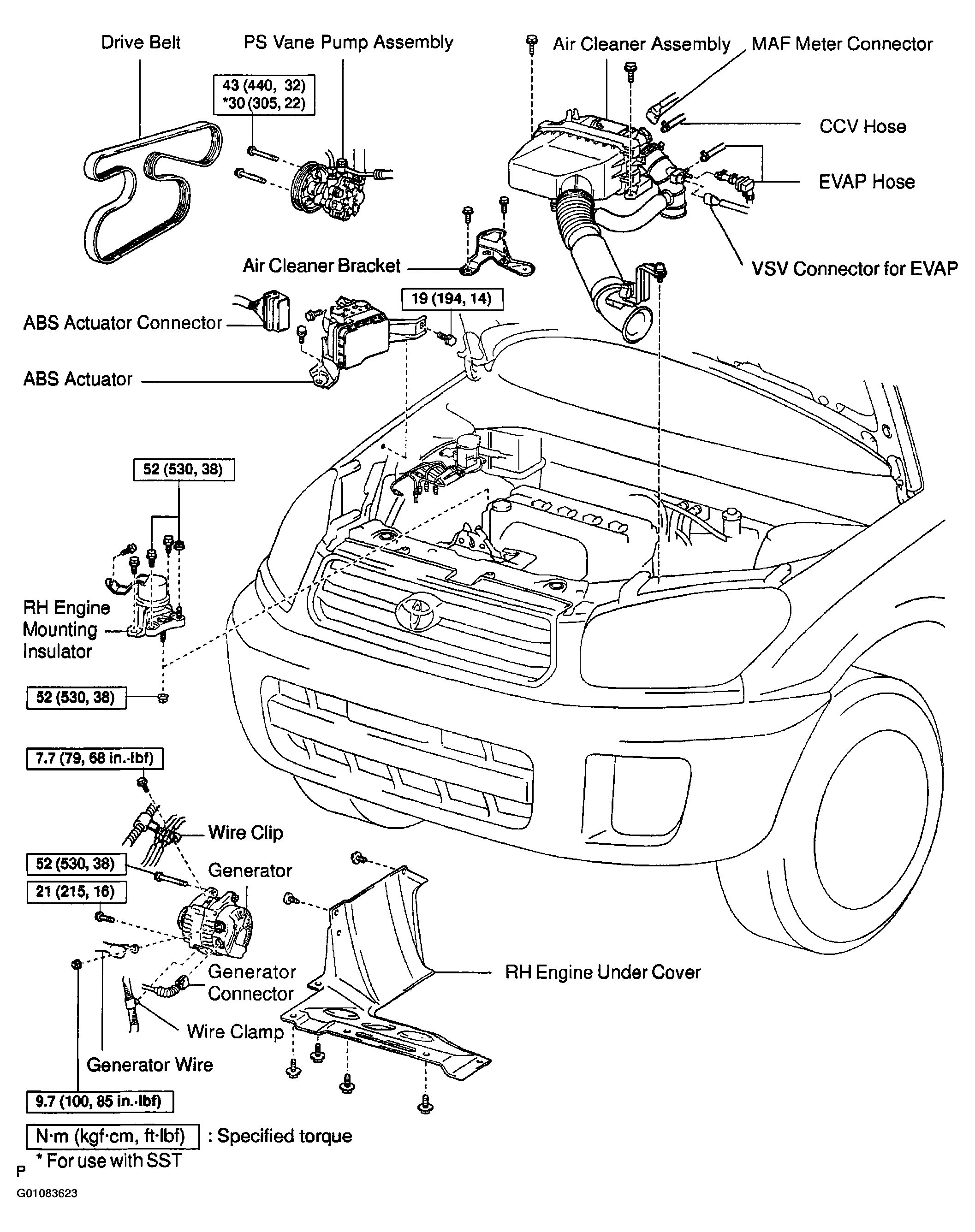

Fig 1: Displaying Timing Chain Components (1 Of 2)
G01083623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

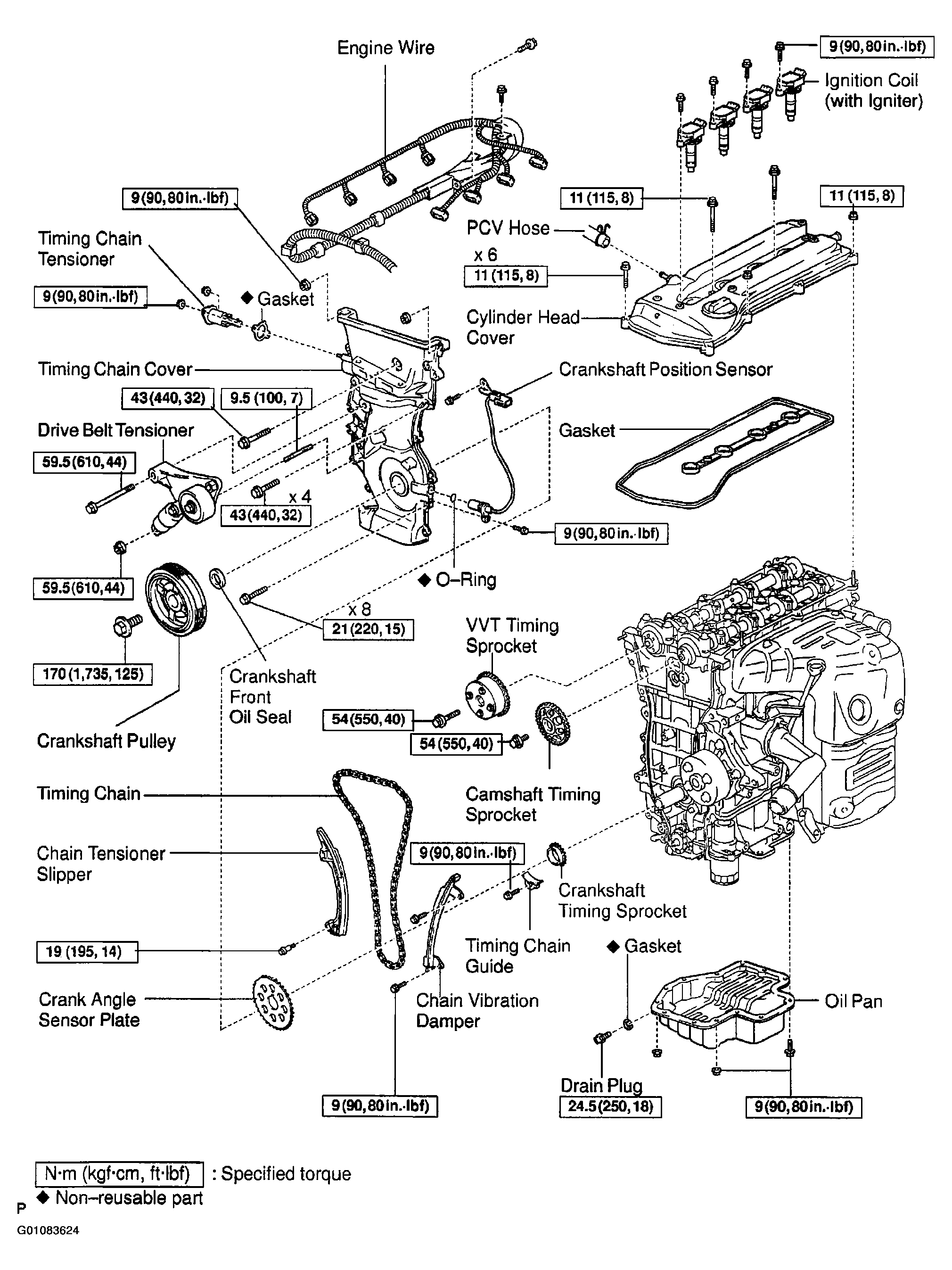

Fig 2: Displaying Timing Chain Components (2 Of 2)
G01083624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
