Location
Ignition Switch And Key Unlock Warning Switch: Location

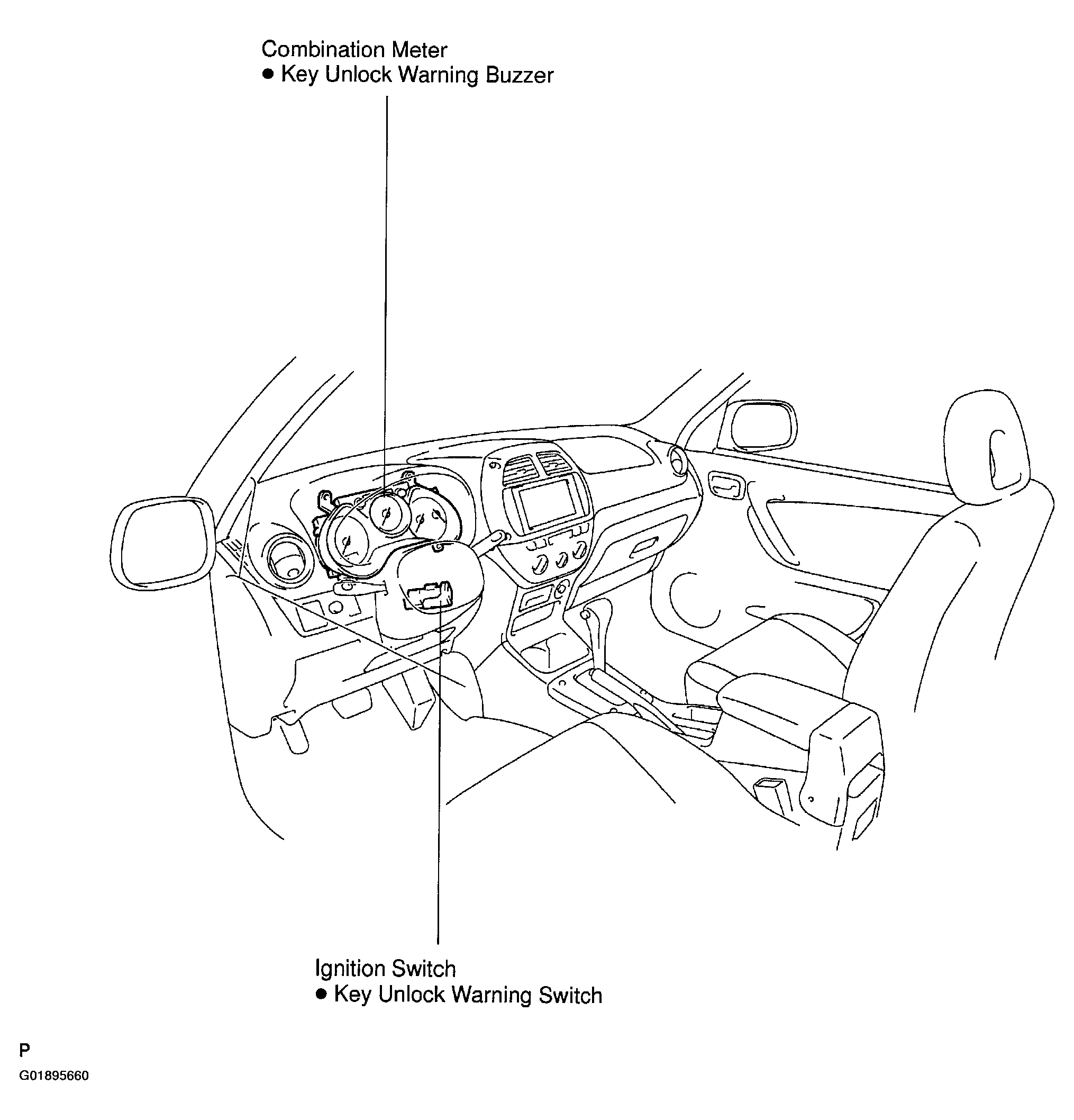

Fig 1: Locating Ignition Switch & Key Unlock Warning Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
