Crankshaft Position Sensor: Removal

  1. Remove engine under cover  .
  2. Remove crankshaft position sensor  :
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

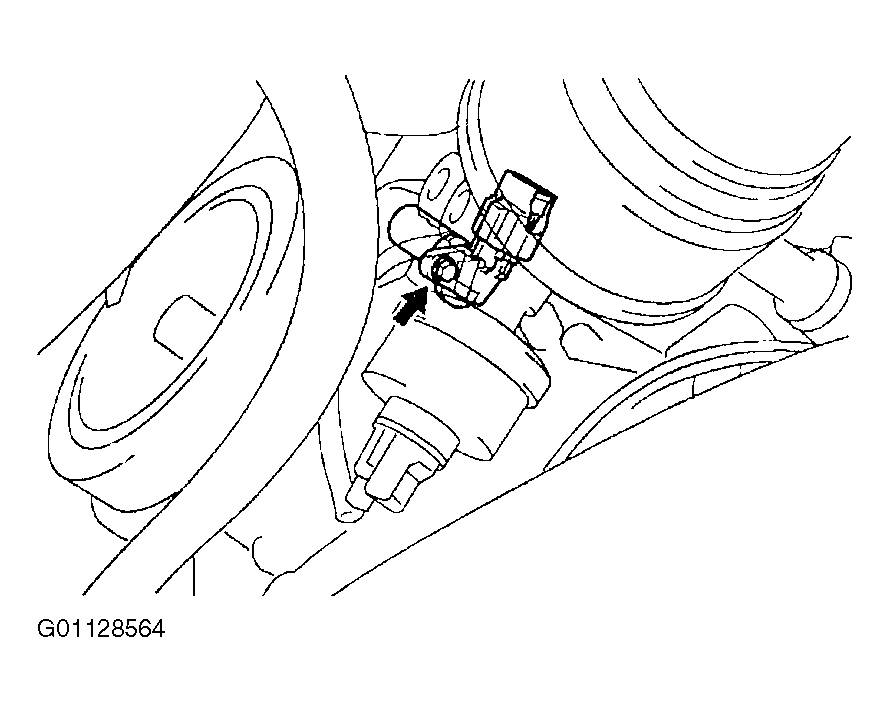

    Fig 1: Locating Crankshaft Position Sensor Bolt
    G01128564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
