Engine Control Module Location

Engine Control Module (ECM) is located behind glove box and heater duct. See Fig 1.

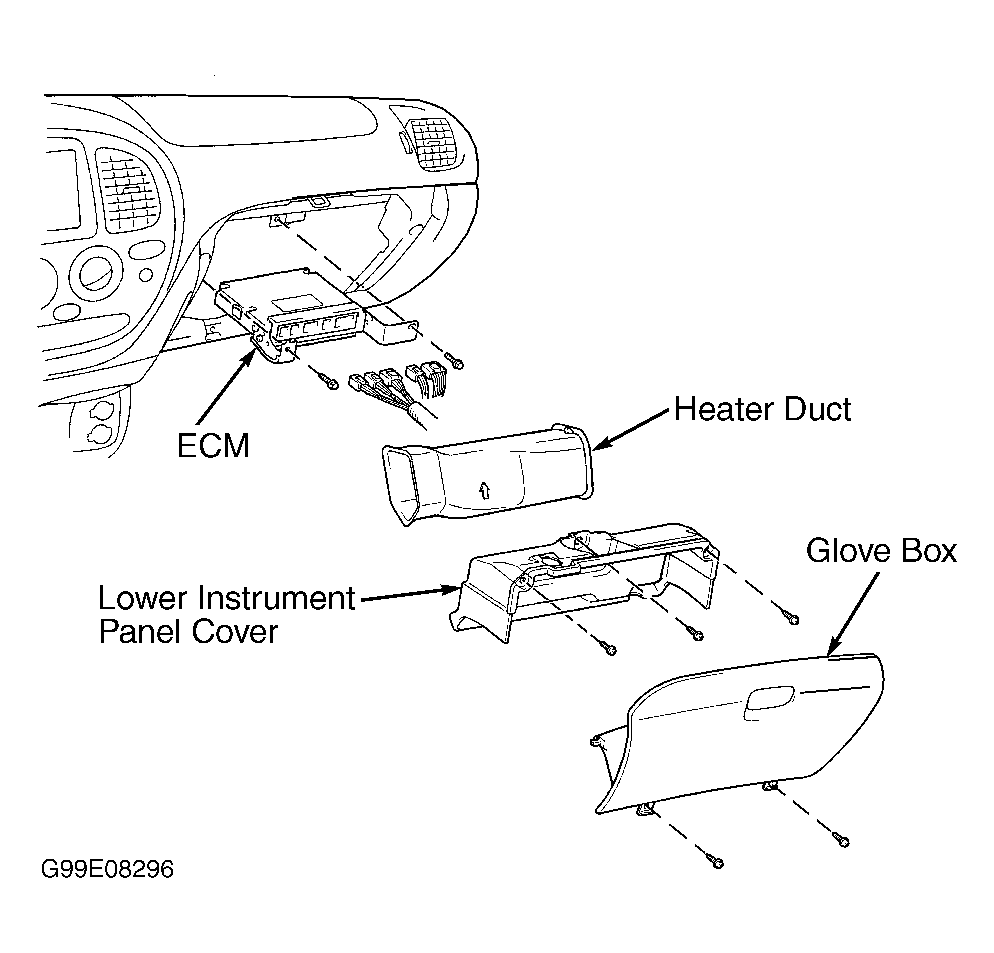

Fig 1: Locating Engine Control Module

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
