Repair and Diagnosis
›
Body & Frame
›
Body, Cab Control Systems
›
Body Control Systems - Diagnostics
›
Circuit Inspection
›
Key Unlock Warning Switch Circuit
›
Wiring Diagram
Key Unlock Warning Switch Circuit: Wiring Diagram

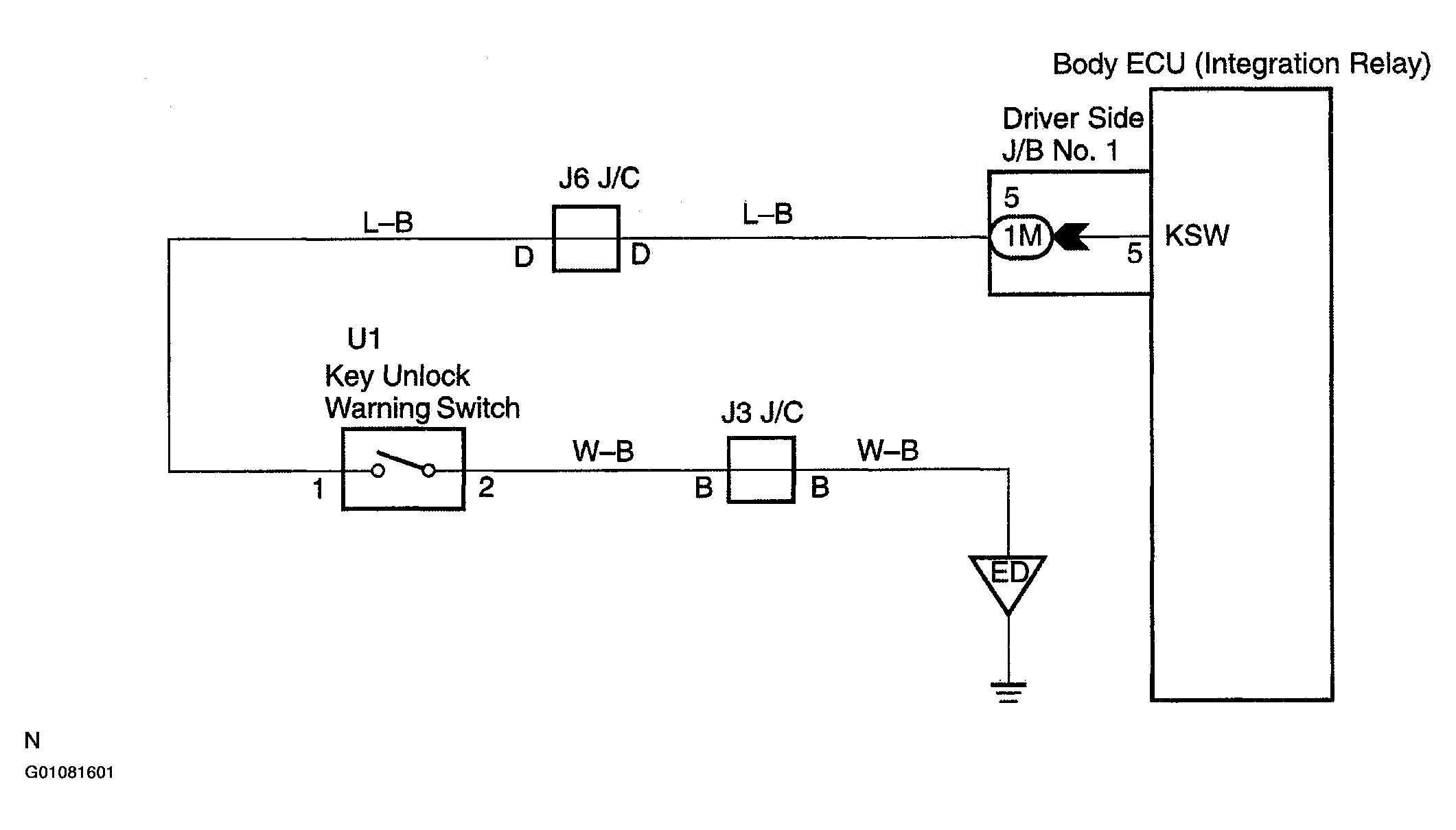

Fig 1: Key Unlock Warning Switch Circuit
