Body Control Systems - Diagnostics
›
Circuit Inspection
›
Unlock Detection Switch Circuit
›
Wiring Diagram
Unlock Detection Switch Circuit: Wiring Diagram

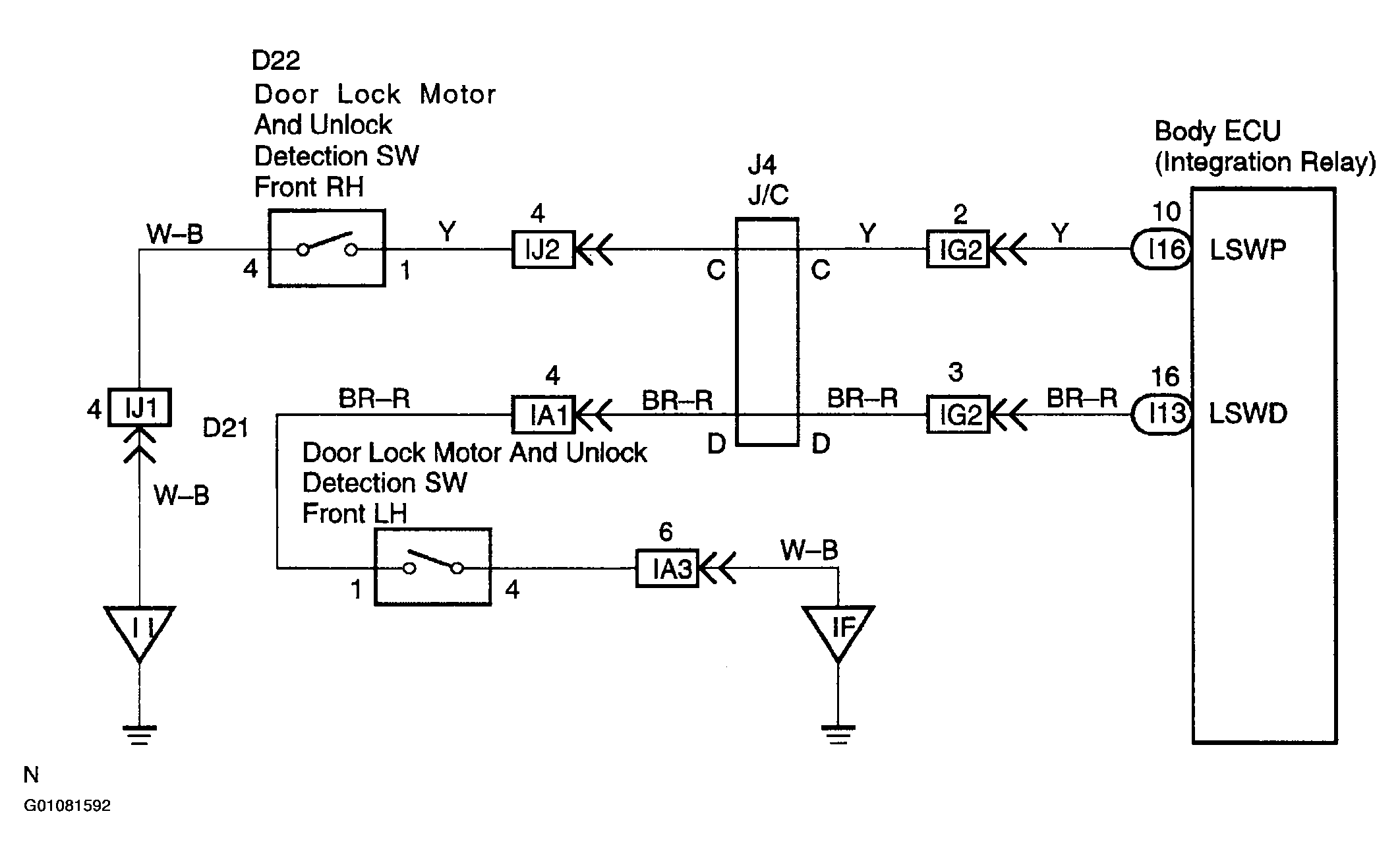

Fig 1: Unlock Detection Switch Circuit
