Registration Procedure

NOTE:

In case of having lost all the already registered master keys, you are not able to do additional registration or deletion. This requires changing the engine and ECT ECU and then registering the new key codes according to the following registration procedure of the automatic registration mode.

  1. Key Registration In Automatic Registration Mode  .
      NOTE:
      • This must be done when you install a new Engine and ECT ECU.
      • The new Engine and ECT ECU is on the automatic key code registration mode. The already fixed number of key codes for this Engine and ECT ECU can be registered.

        On this type of vehicle, up to 3 key codes can be registered.

      • In the automatic registration mode, the last key registered becomes sub-key.

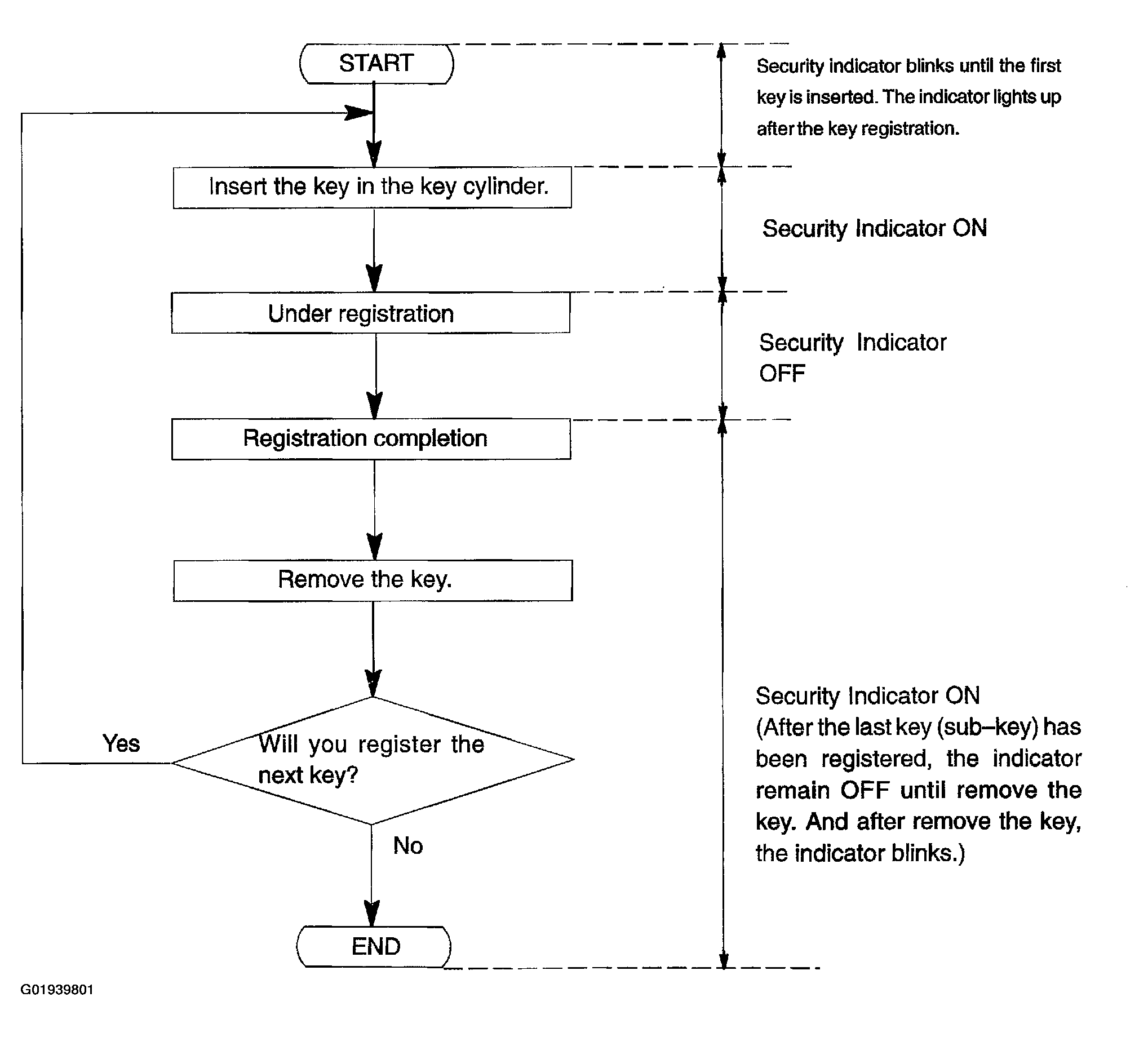

      Fig 1: Transponder Key Registration Flowchart
      G01939801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When a key is not inserted in the key cylinder on the automatic registration mode, the security indicator always lights on.
      • When the immobiliser system operates normally and the key is pull out, the security indicator blinks.
      • When key code registration could not be performed on the automatic registration mode, code 2-1 is output from the security indicator and when inserting the already registered key, code 2-2 is output.

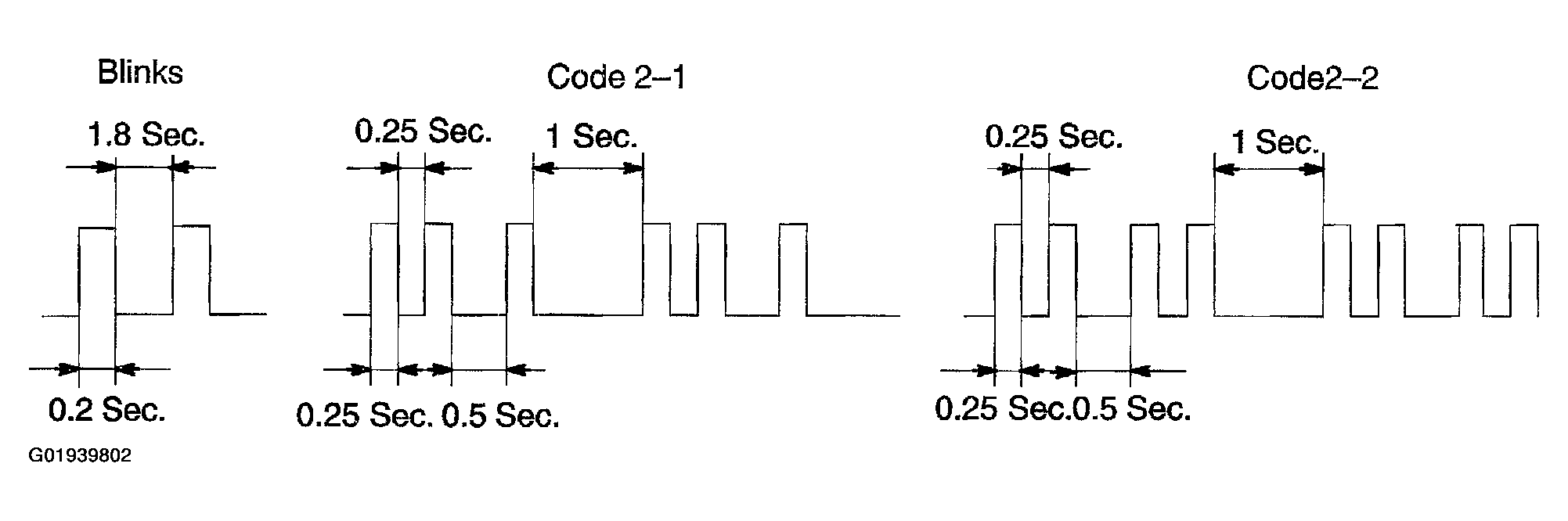

      Fig 2: Identifying Security Indicator Light Outputs
      G01939802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Registration of a new transponder key.
    2. Automatic registration mode completion

      If completing the mode forcibly when more than 1 key code have been registered on the automatic registration mode, perform the following procedures.

      After 1 more key code have been registered with master key, perform step ( 1) or ( 2) without pulling the key out or inserting the already registered key.

      1. Depress and release brake pedal 5 times or more within 15 seconds.
      2. With the hand-held tester, require automatic registration mode completion.
  2. Registration Of Additional Master Key  .

    There are 2 ways for registration of additional master key, one way is depressing brake pedal and acceleration pedal and the other way is using hand-held tester.

    NOTE:
    • It is possible to register up to 7 master key codes including the already registered key code.
    • When any operation time described below is over, registration mode completes.
    • When the next procedure is performed while the timer is working, the timer completes counting time, then next timer starts.
    • When replacing "Ignition Cylinder Key Set" or "Lock Cylinder Set" and register according to the following procedure using the original master key. However, after the registration of the additional master key, as the original master key and the original sub-key is not necessary any more, so erase registration of those key codes.
    1. Depressing brake pedal and acceleration pedal:

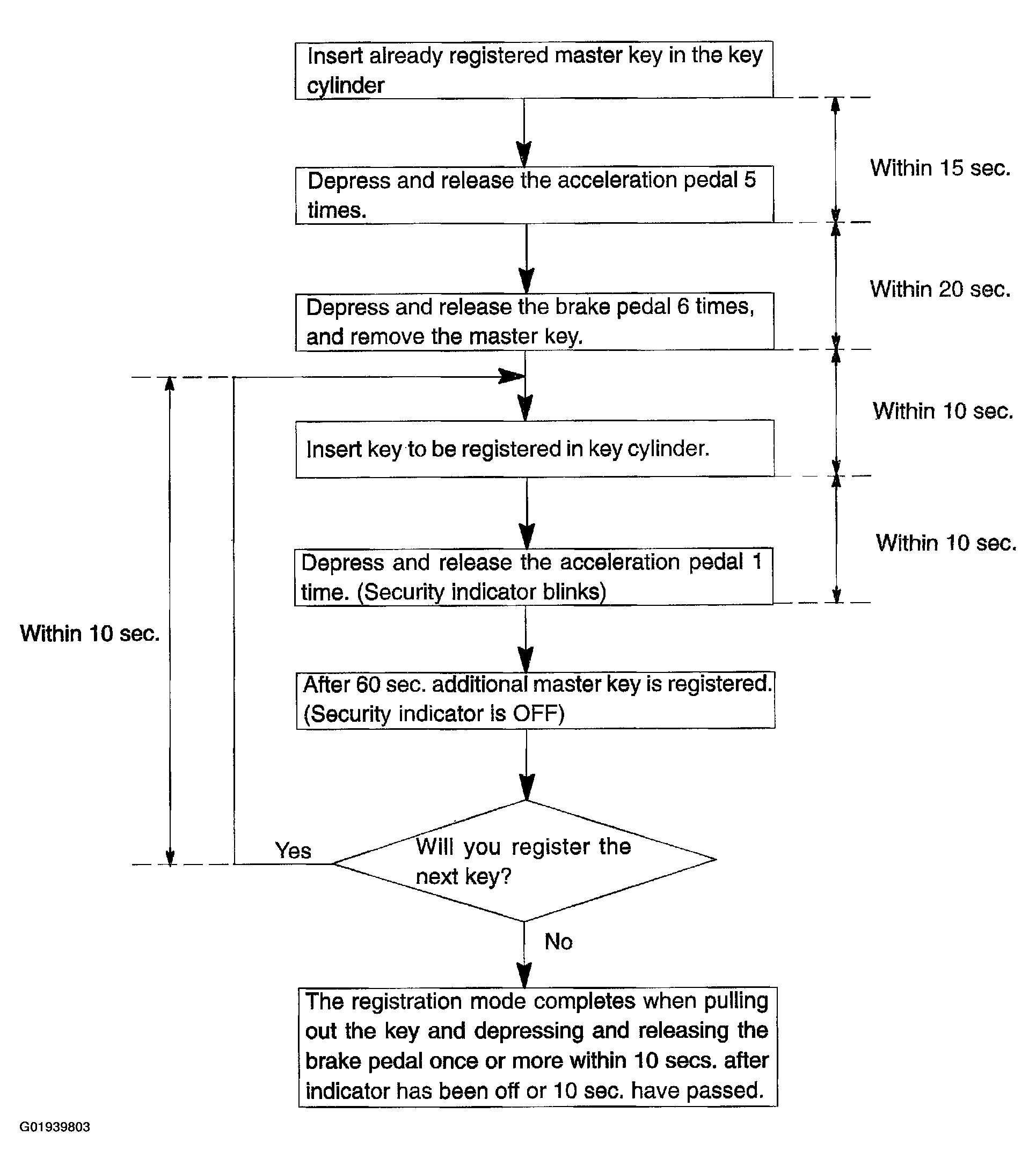

      Fig 3: Master Key Registration Using Brake & Accelerator Pedals Flowchart
      G01939803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. NOTE: Please follow the screen of the hand-held tester for more detailed procedure.
    2. Using hand-held tester:

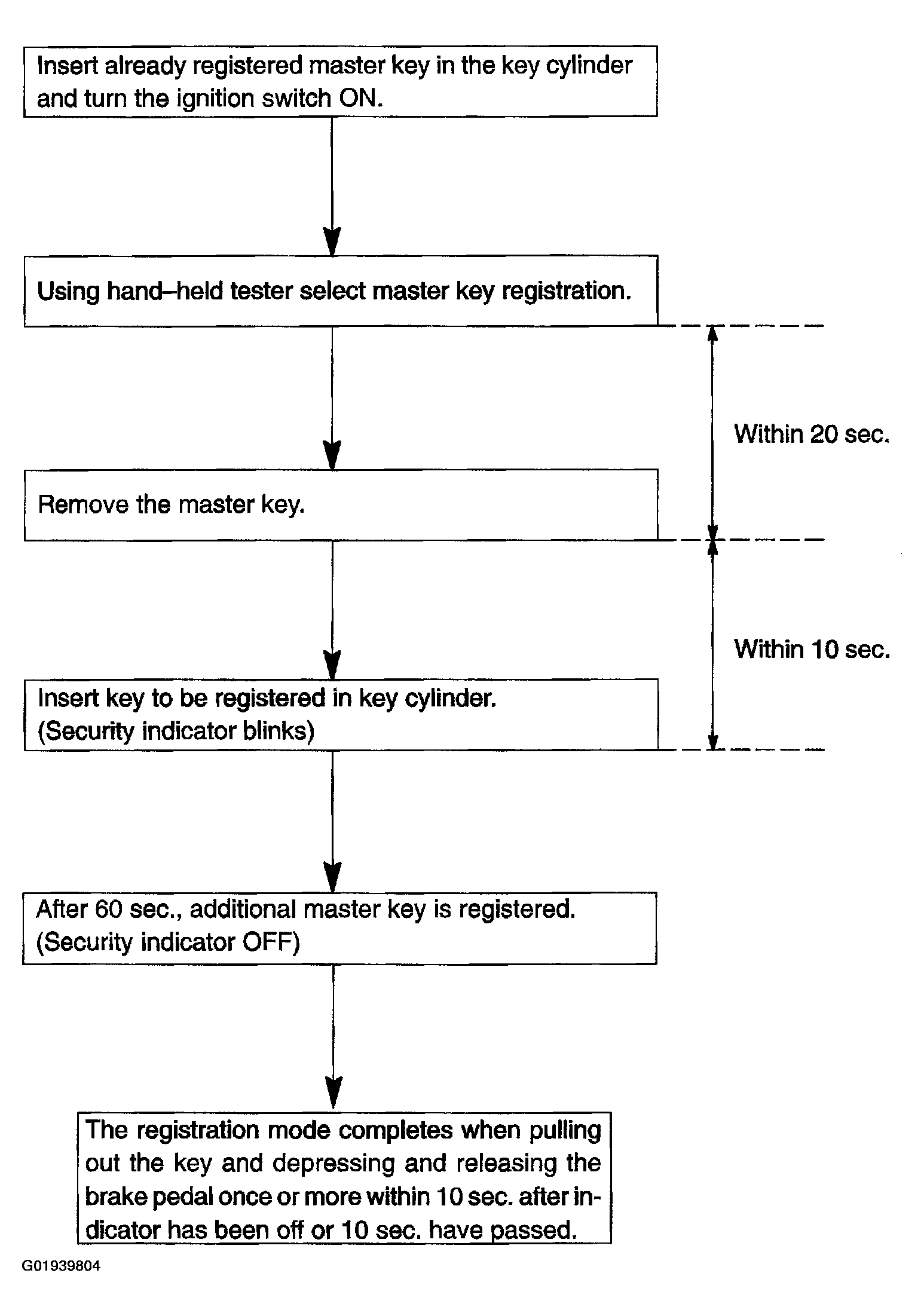

    Fig 4: Master Key Registration Using Hand-Held Tester Flowchart
    G01939804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Registration Of Additional Sub-Key  .

    There are 2 ways for registration of additional sub-key, one way is depressing brake pedal and acceleration pedal and the other way is using hand-held tester.

    NOTE:
    • It is possible to register up to 3 sub-key codes including the already registered key code.
    • When any operation time described below is over, registration mode completes.
    • When the next procedure is performed while the timer is working, the timer completes counting time, then next timer starts.
    1. Depressing brake pedal and acceleration pedal:

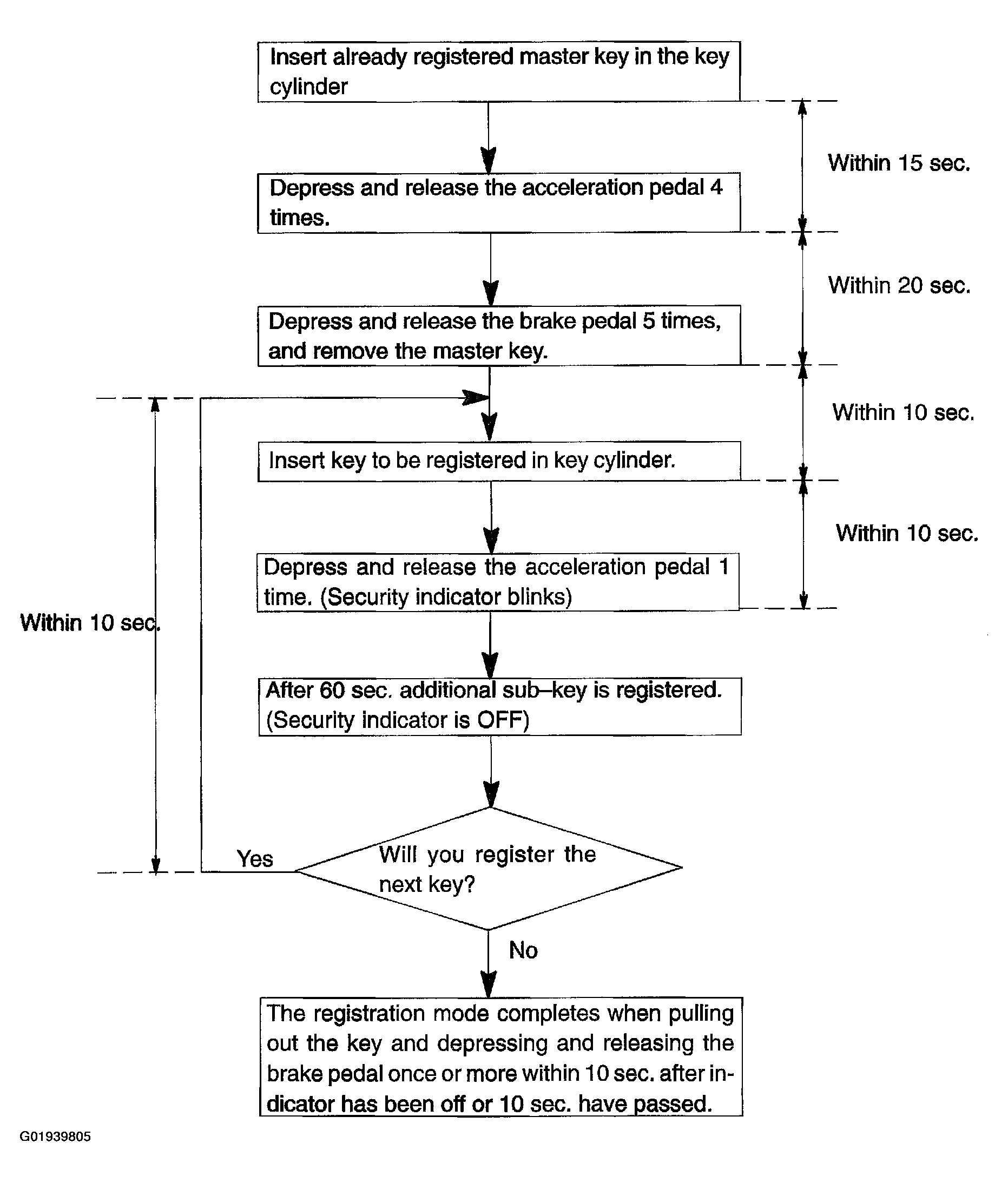

      Fig 5: Sub Key Registration Using Brake & Accelerator Pedals Flowchart
      G01939805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. NOTE: Please follow the screen of the hand-held tester for more detailed procedure.
    2. Using hand-held tester:

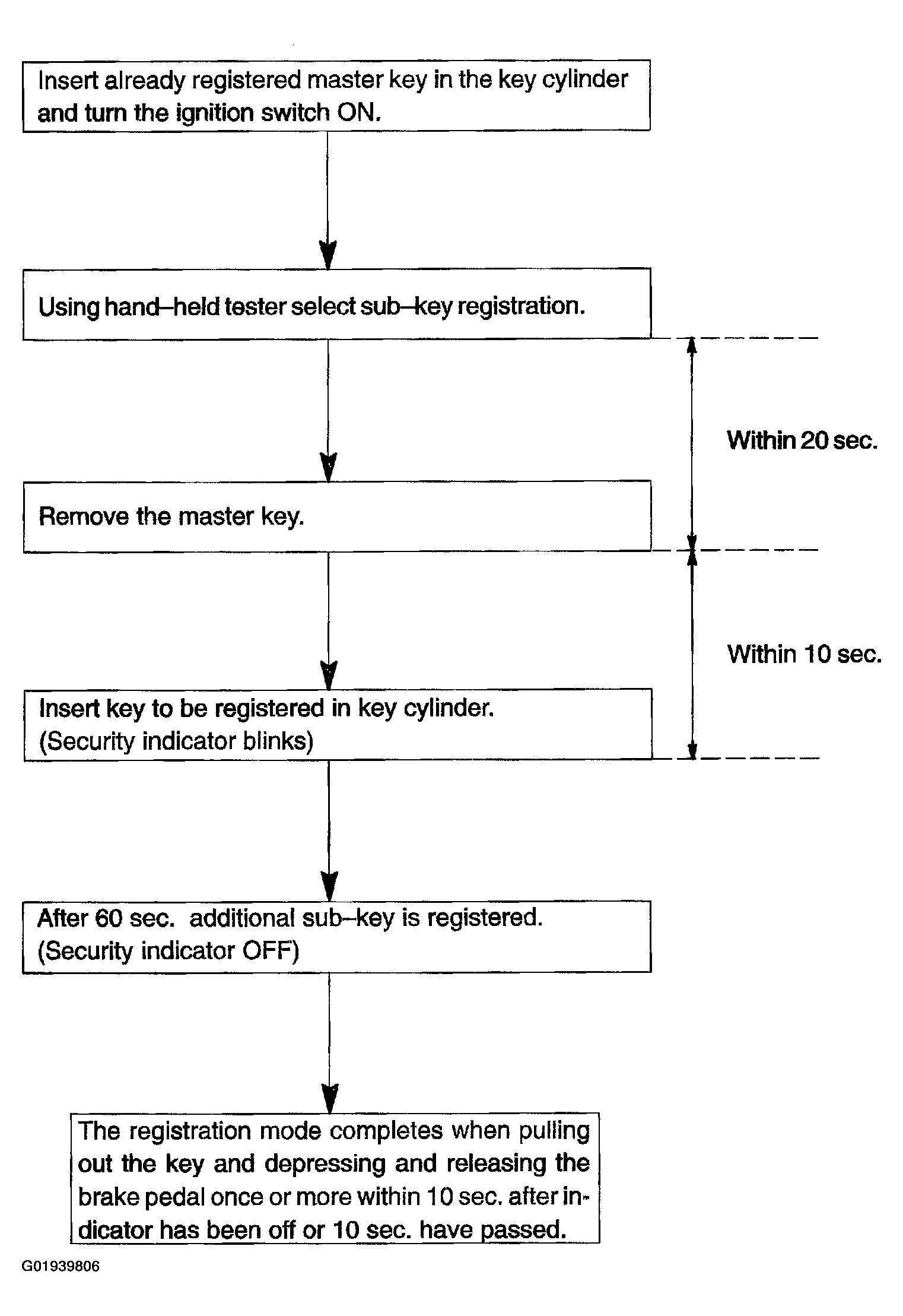

    Fig 6: Sub Key Registration Using Hand-Held Tester Flowchart
    G01939806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Erasure Of Transponder Key Code  .

    There are 2 ways for erasure of transponder key code, one way is depressing brake pedal and acceleration pedal and the other way is using hand-held tester.

    NOTE:
    • Delete all other master and sub-key codes leaving the master key code to use the operation. When using the key which was used before deletion, it is necessary to register the code again.
    • When any operation time described below is over, registration mode completes.
    • When the next procedure is performed while the timer is working, the timer completes counting time, then next timer starts.
      NOTE: When the key cannot be pulled out in the step 4, key code deletion is canceled.

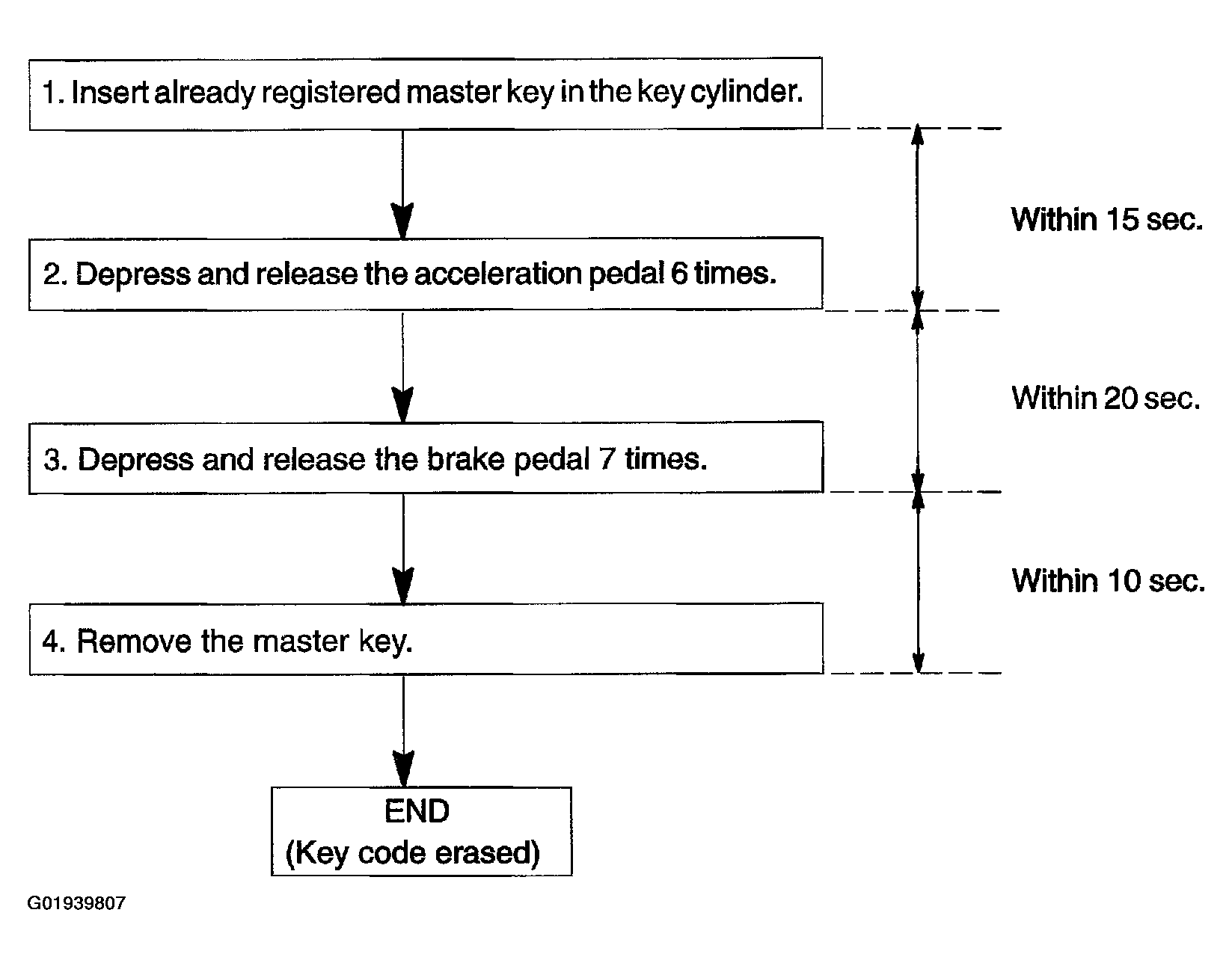

      Fig 7: Erasing Transponder Key Code Using Brake & Accelerator Pedals Flowchart
      G01939807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Depressing brake pedal and acceleration pedal:
    2. Using hand-held tester:

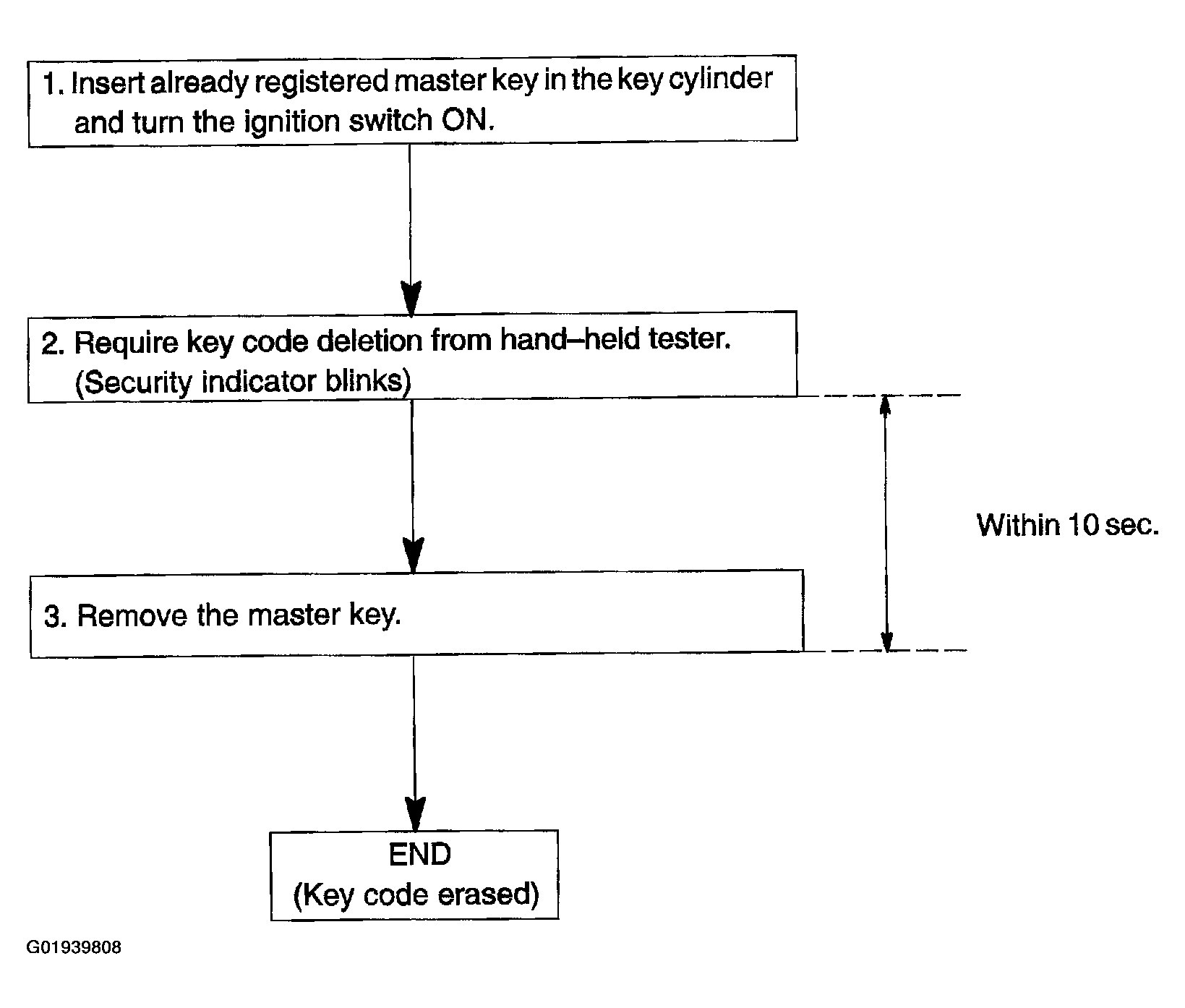

    Fig 8: Erasing Transponder Key Code Using Hand-Held Tester
    G01939808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • When the key cannot be pulled out in the step 3, key code deletion is canceled. (Security indicator is OFF.)
    • Please follow the screen of the hand-held tester for more detailed procedure.
