Power Slide Door Control System: Inspection

Inspect power slide door main switch continuity .

Fig 1: Identifying Power Slide Door Main Switch & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Slide Door Main Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect power slide door RH side control front switch continuity .

Fig 3: Identifying Front Right Side Power Sliding Door Control Switch & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Right Side Power Sliding Door Control Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect power slide door LH side control front switch continuity .

Fig 5: Identifying Front Left Side Power Sliding Door Control Switch & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Front Left Side Power Sliding Door Control Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect power slide door control switch continuity .

Fig 7: Identifying Sliding Door Power Sliding Door Control Switch & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Sliding Door Power Sliding Door Control Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect slide door lock release actuator operation .
Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check the door lock release link moves to release position.

Fig 9: Testing Sliding Door Lock Release Actuator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect latch switch continuity .

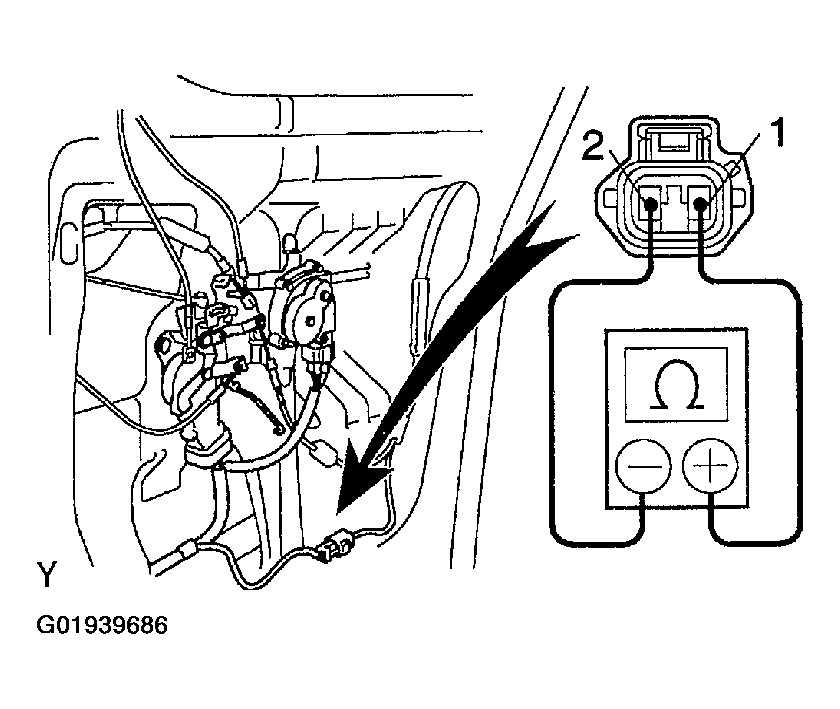

Fig 10: Testing Latch Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Latch Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect fuel lid courtesy switch continuity .
1. Check that continuity exists between terminal 1 and terminal 2 with the switch ON (switch pin pushed).

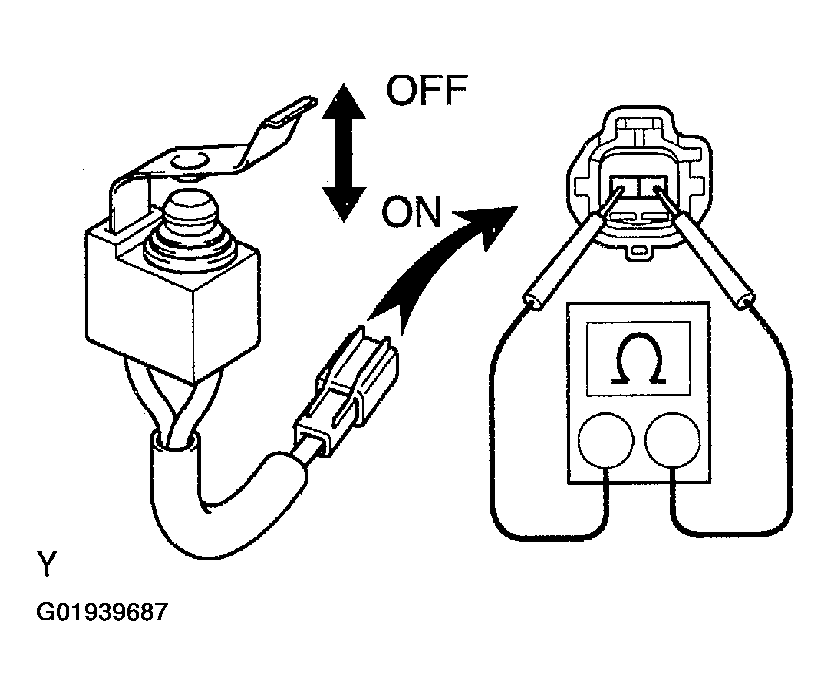

  Fig 12: Testing Fuel Lid Courtesy Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that no continuity exists between terminal and terminal 2 with the switch OFF (switch pin released).
If continuity is not as specified, replace the switch.
