Rear Speed Sensor: Removal

  1. Disconnect speed sensor harness  :
    1. Disconnect the 2 speed sensor connectors.

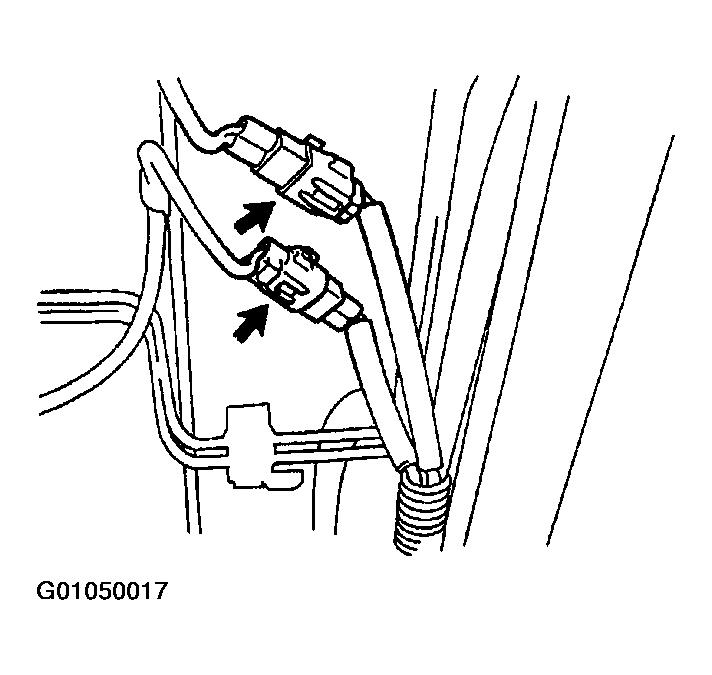

      Fig 1: Identifying Speed Sensor Connectors
      G01050017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the resin clip holding the sensor harness to the body.
  2. Remove speed sensor with rear axle hub. See  AXLE BEAM  .
