Toyota
›
2002
›
Sienna XLE
›
Repair and Diagnosis
›
Body & Frame
›
Body, Cab Control Systems
›
Body Control Systems - Diagnostics
›
Circuit Inspection
›
Key Lock And Unlock Switch Circuit
›
Wiring Diagram
Key Lock And Unlock Switch Circuit: Wiring Diagram

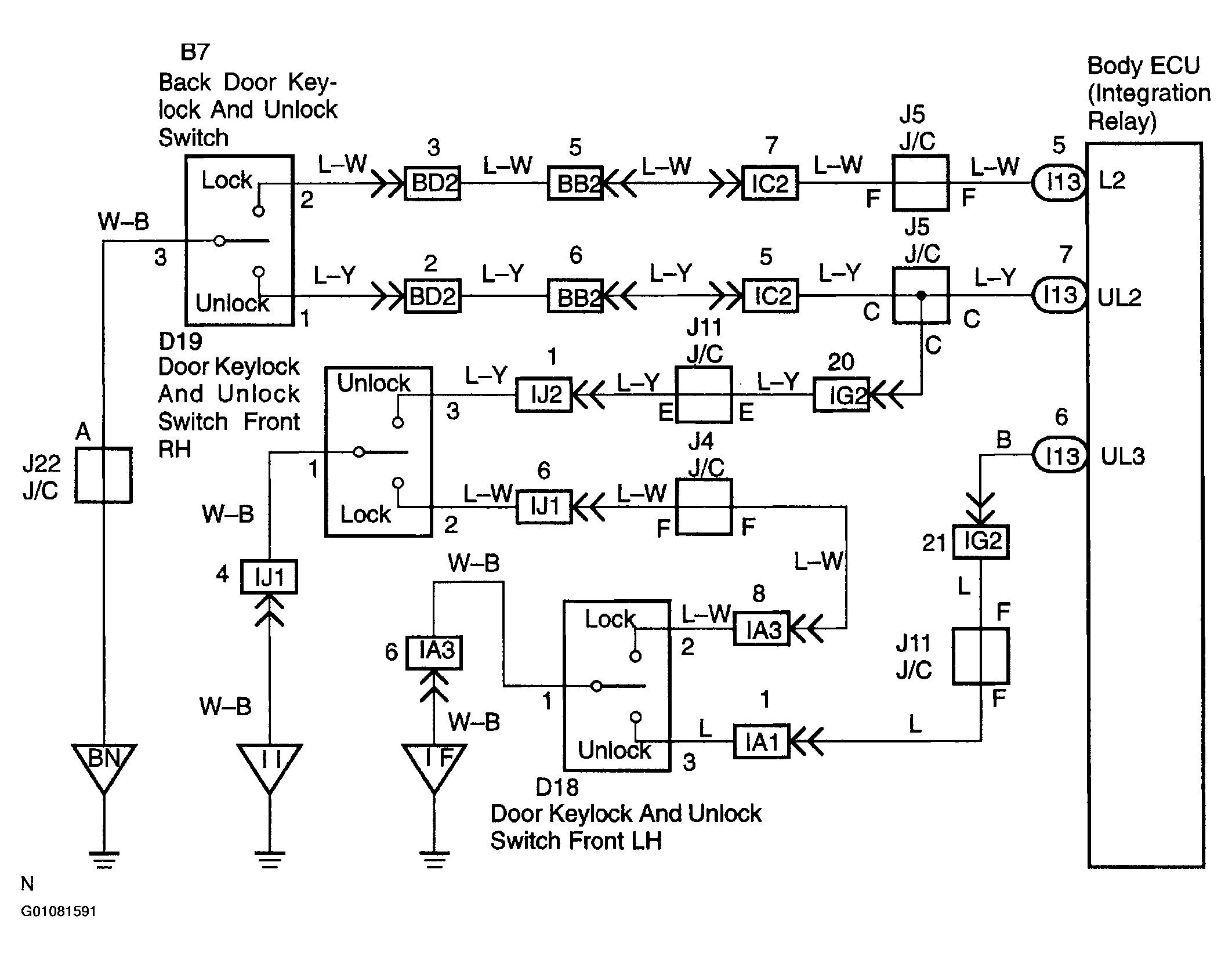

Fig 1: Key Lock And Unlock Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
