Wireless Door Lock Control System
›
Location
Wireless Door Lock Control System: Location

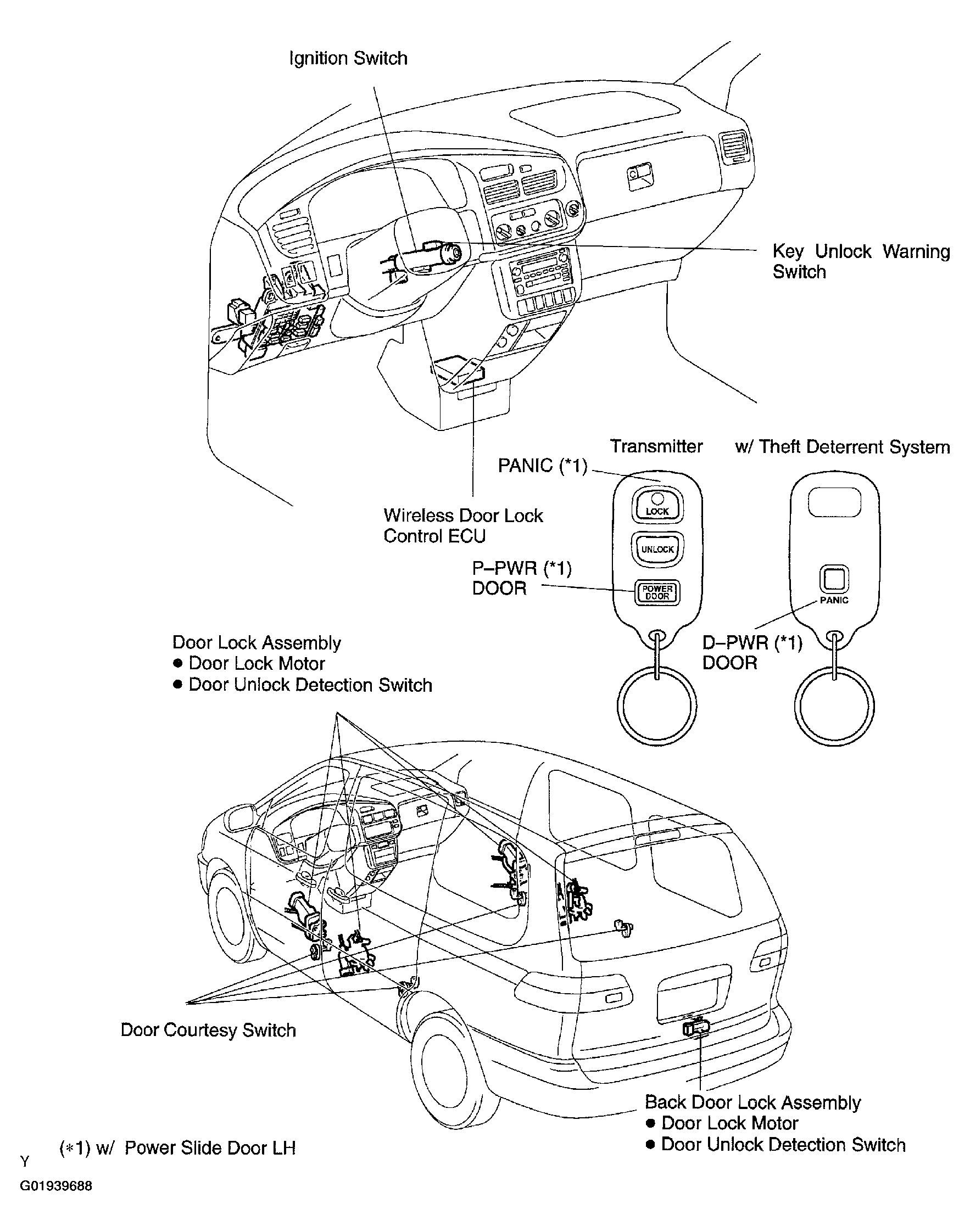

Fig 1: Locating Wireless Door Lock Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
