Problem Symptoms Table
Power seat control system

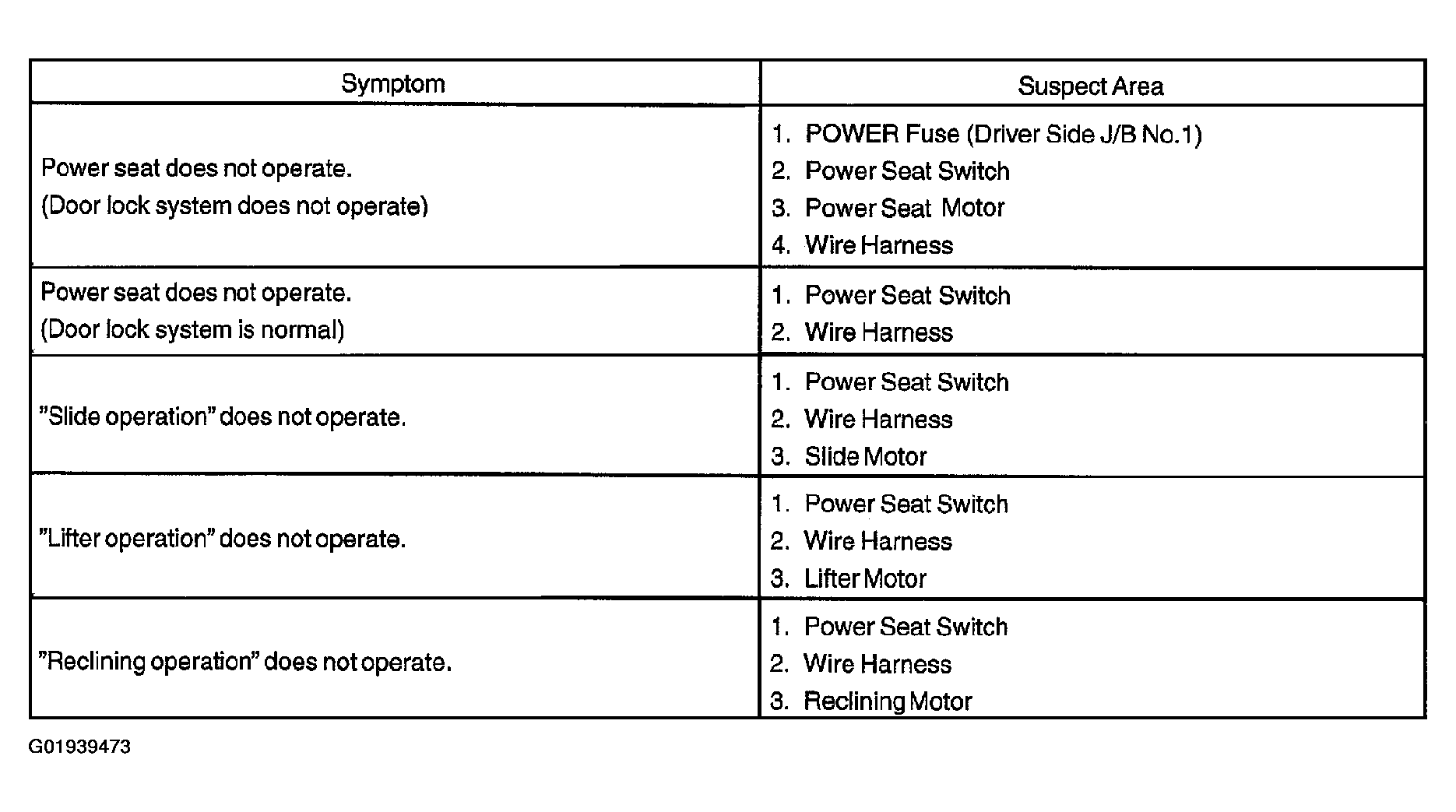

Fig 1: Isolating Power Seat Control System Symptoms
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
