Light Control Switch Circuit: Wiring Diagram

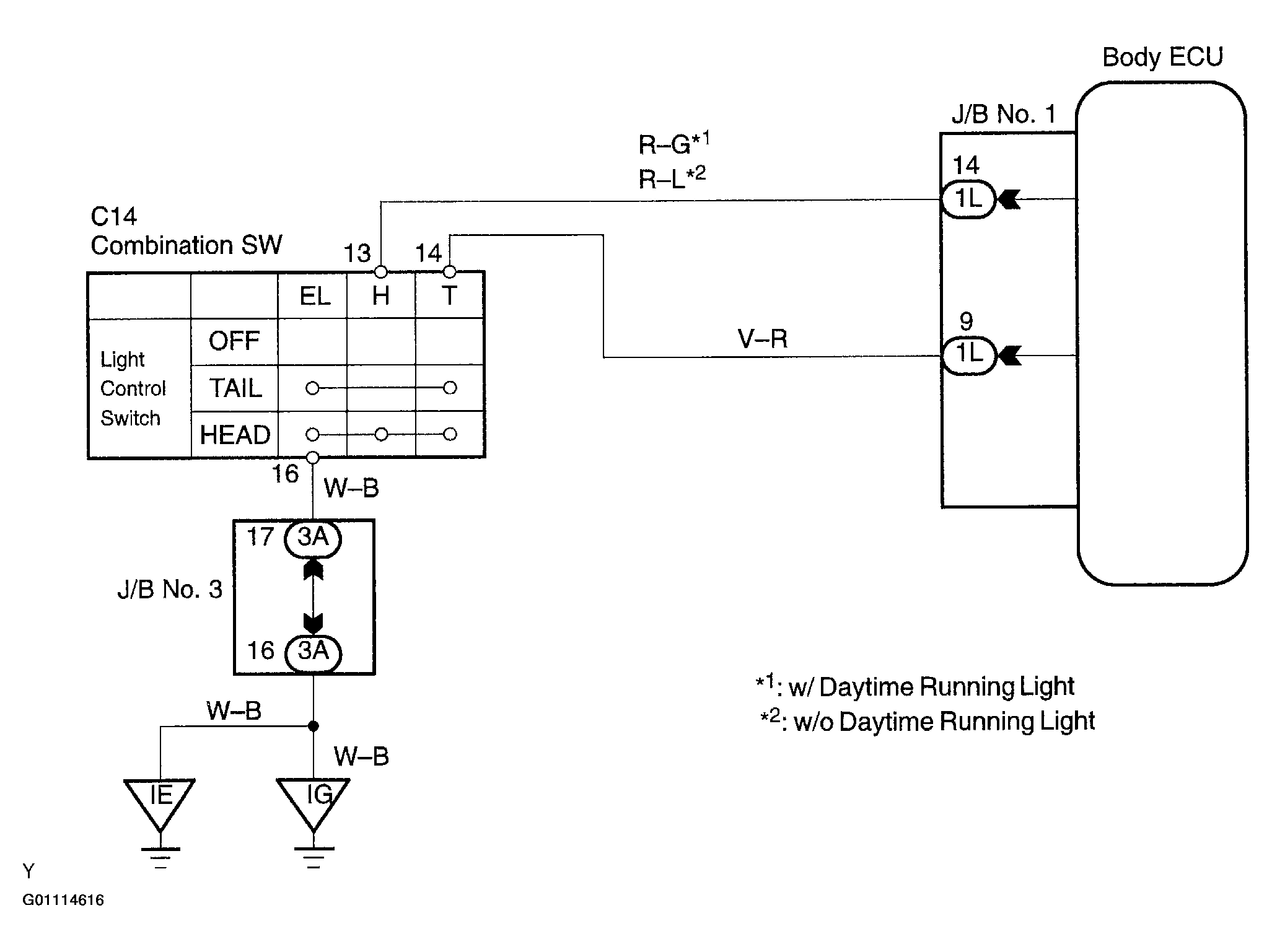

Fig 1: Wiring Diagram
G01114616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
