Terminals Of Ecu — 2002 Toyota Tacoma Base, 4D Pickup Service Manual ~ FixVault

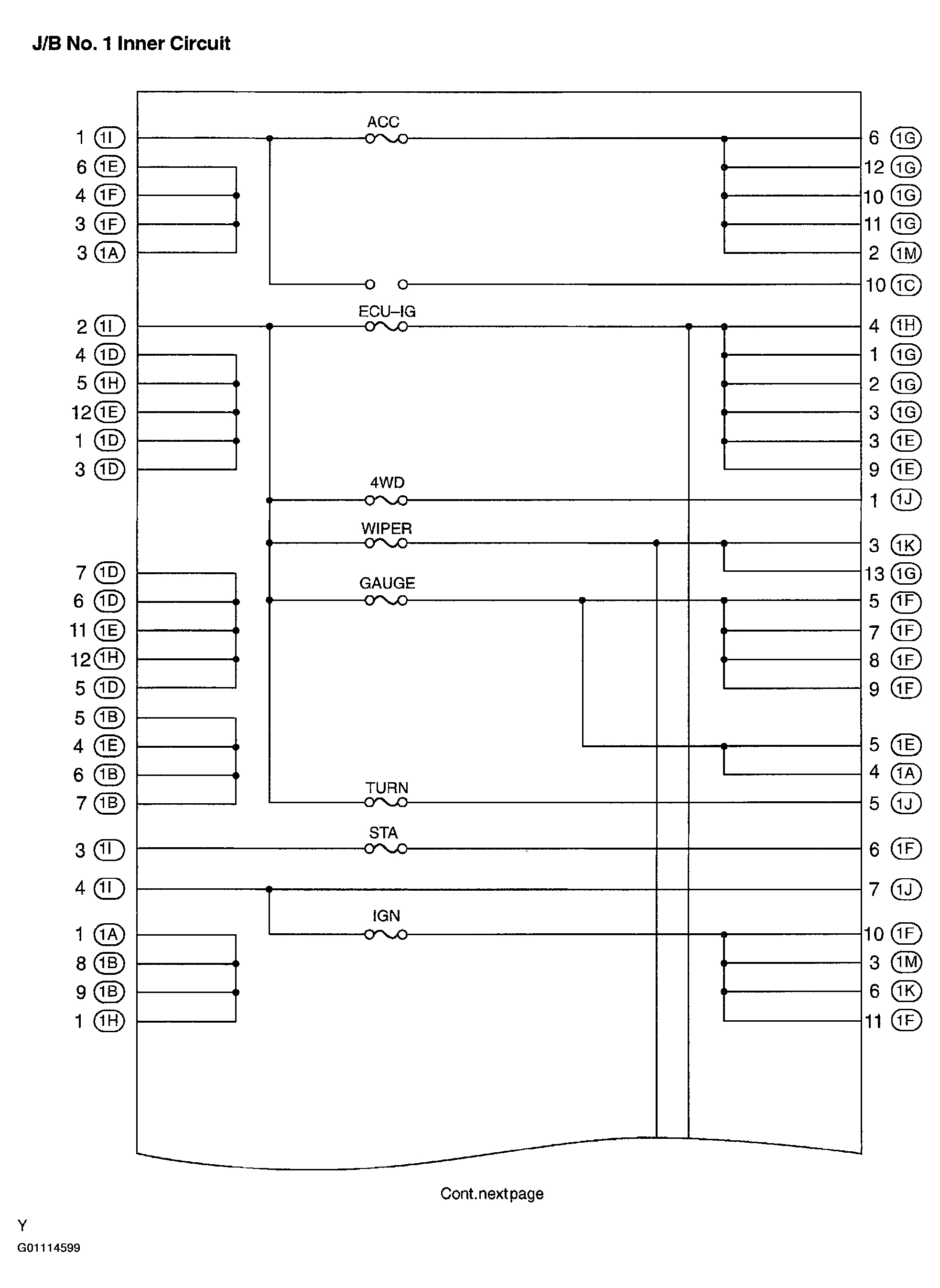

Fig 1: Identifying J/B 1 Inner Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

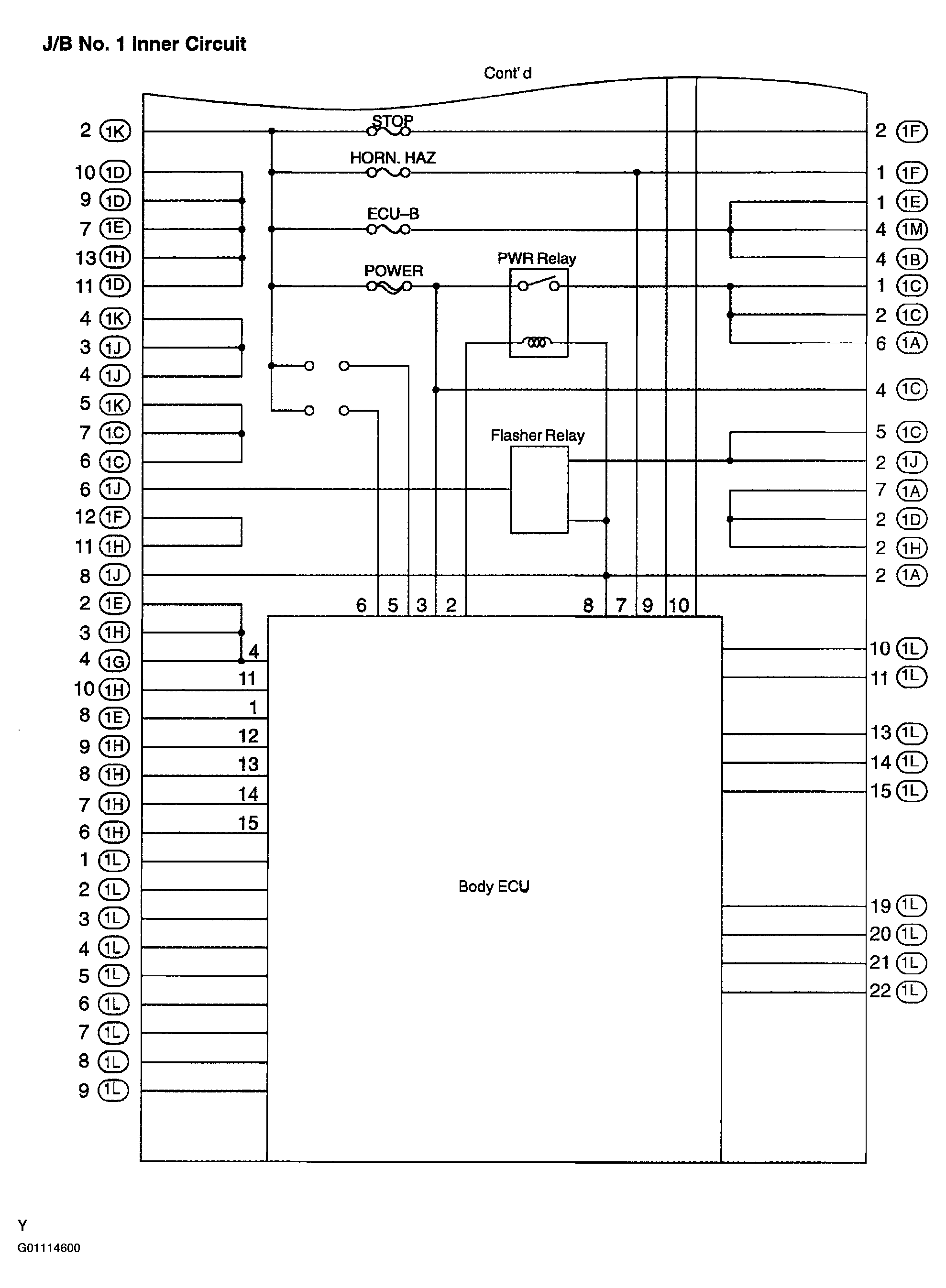

Fig 2: Identifying J/B 1 Inner Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

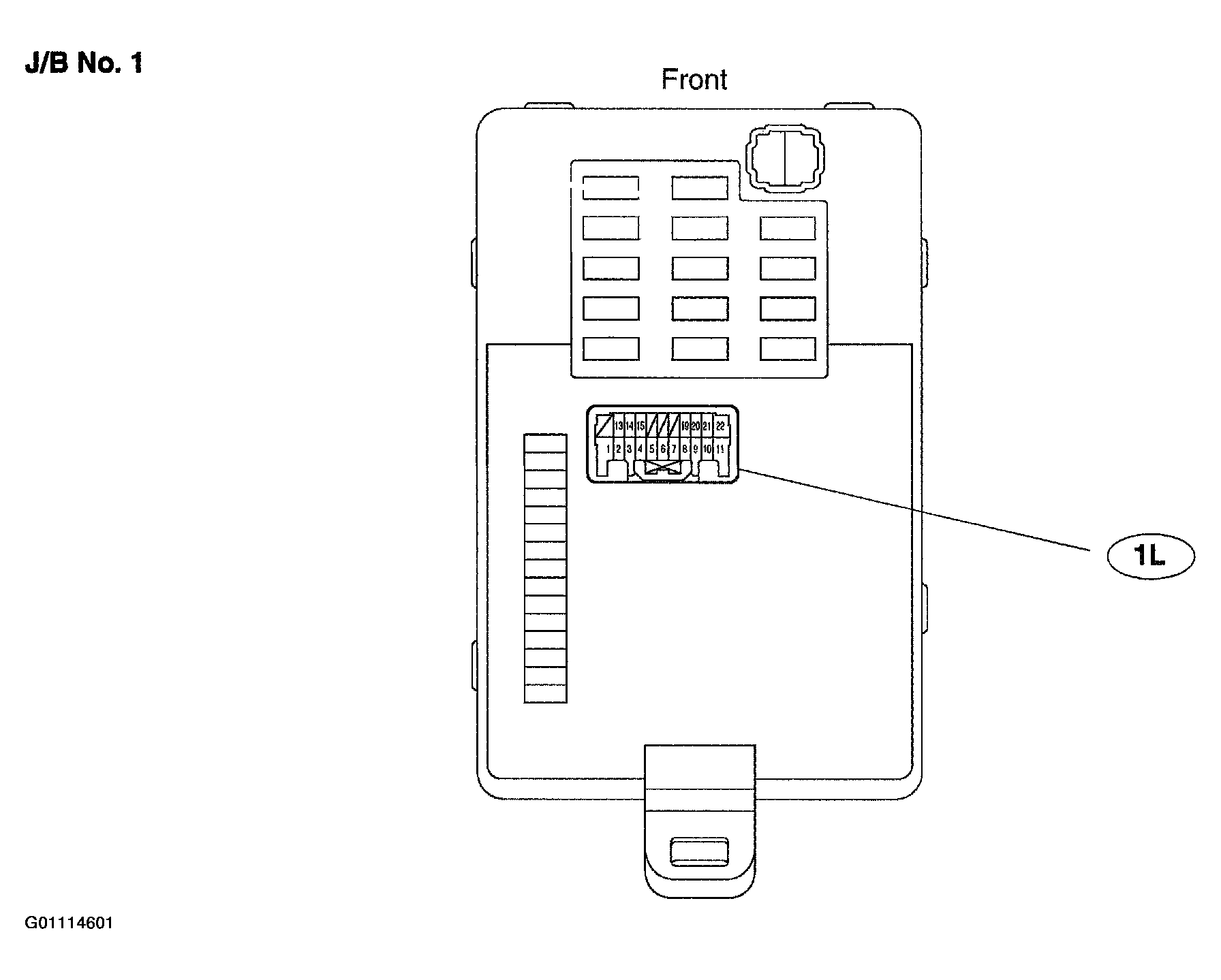

Fig 3: Identifying J/B 1 Component Location (Front)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

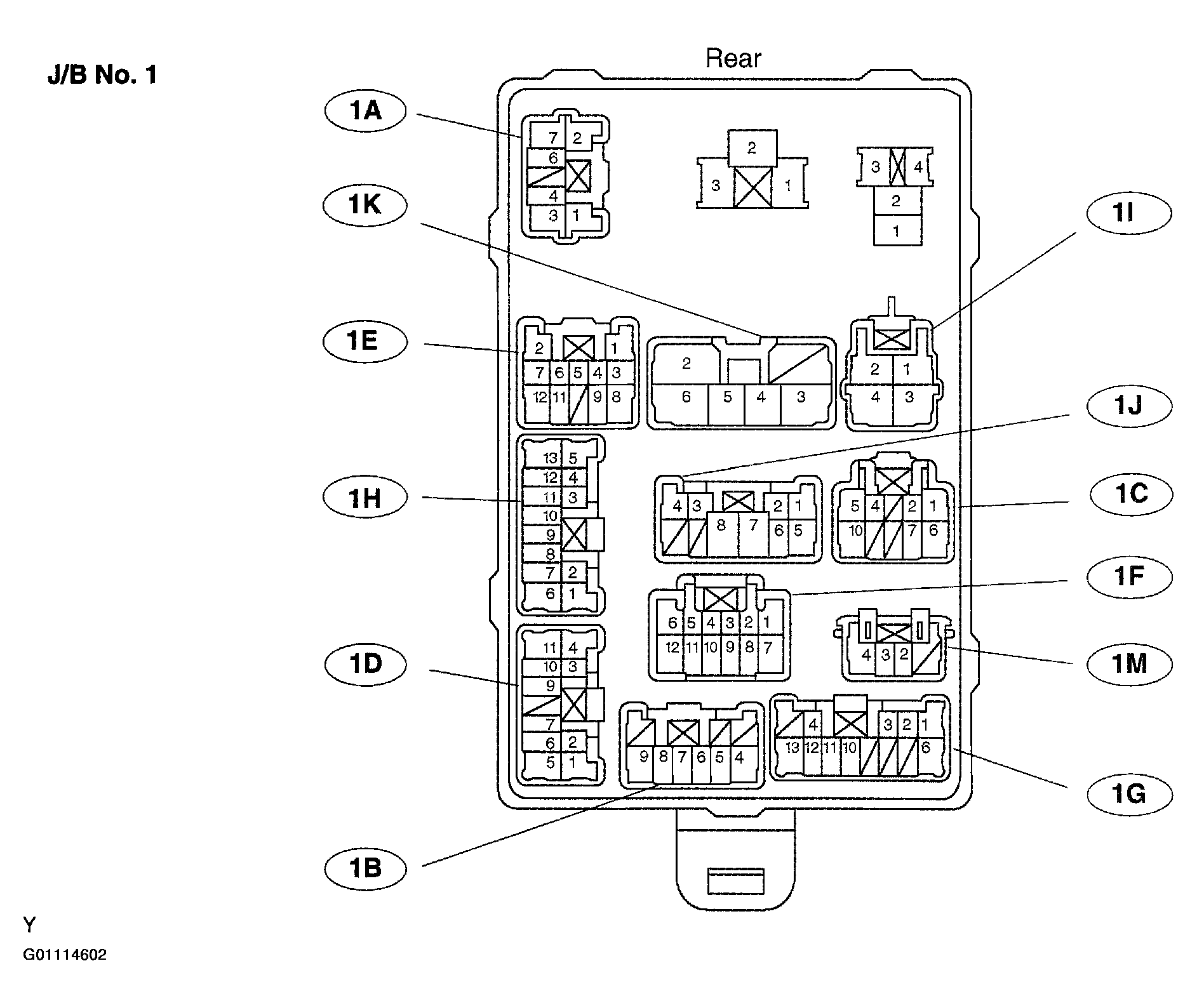

Fig 4: Identifying J/B 1 Component Locations (Rear)

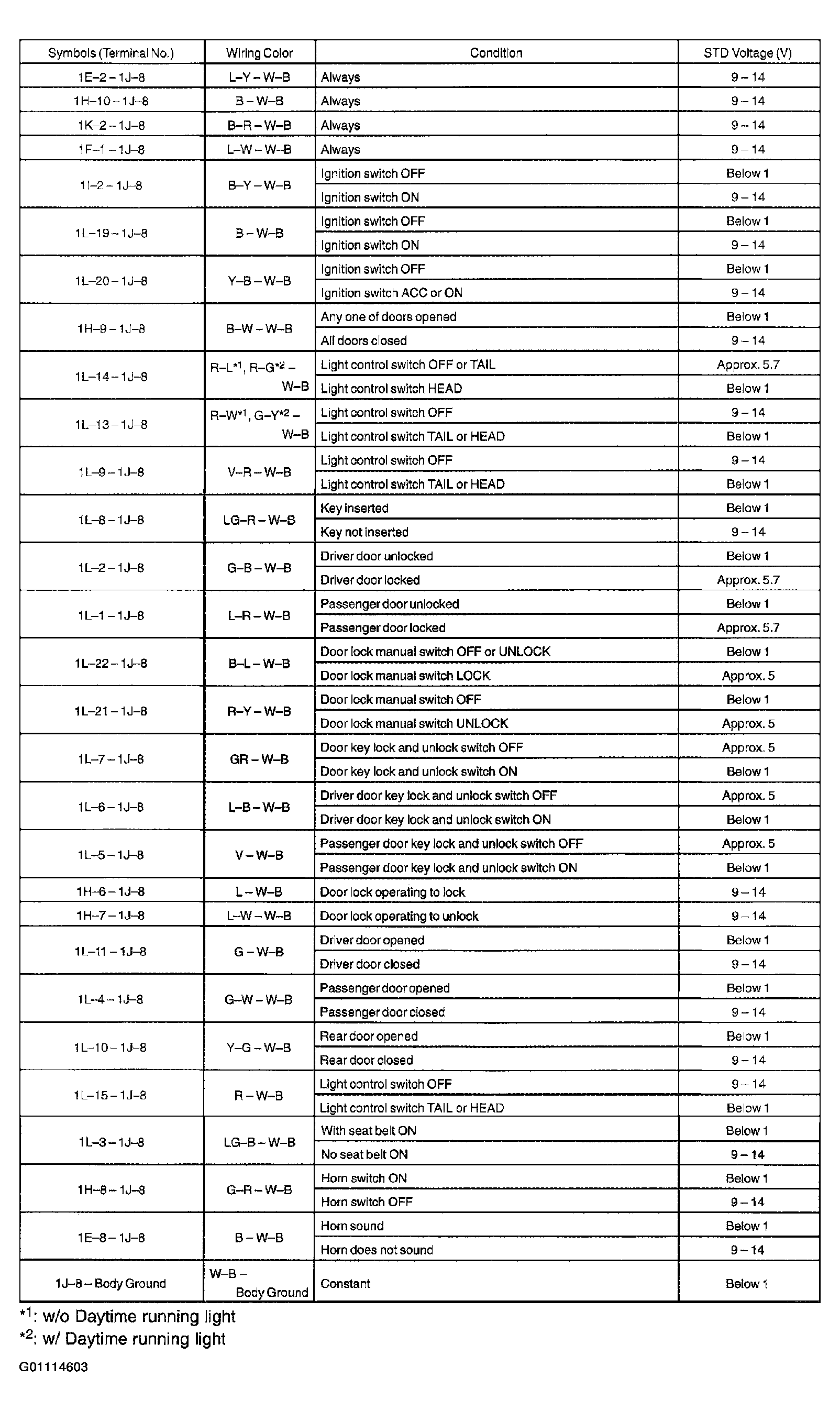

Fig 5: Terminal Identification & Specification Table
